3.3.13 Control panel
1. Boom light switch
2. Platform light switch
3. Wiper switch
4. Cleaner switch
5. Warning light switch
6. High speed traveling switch
7. Breaking/swing switch(optional)
8. Blade conversion switch
9. Key switch
10. Cigar kindling device

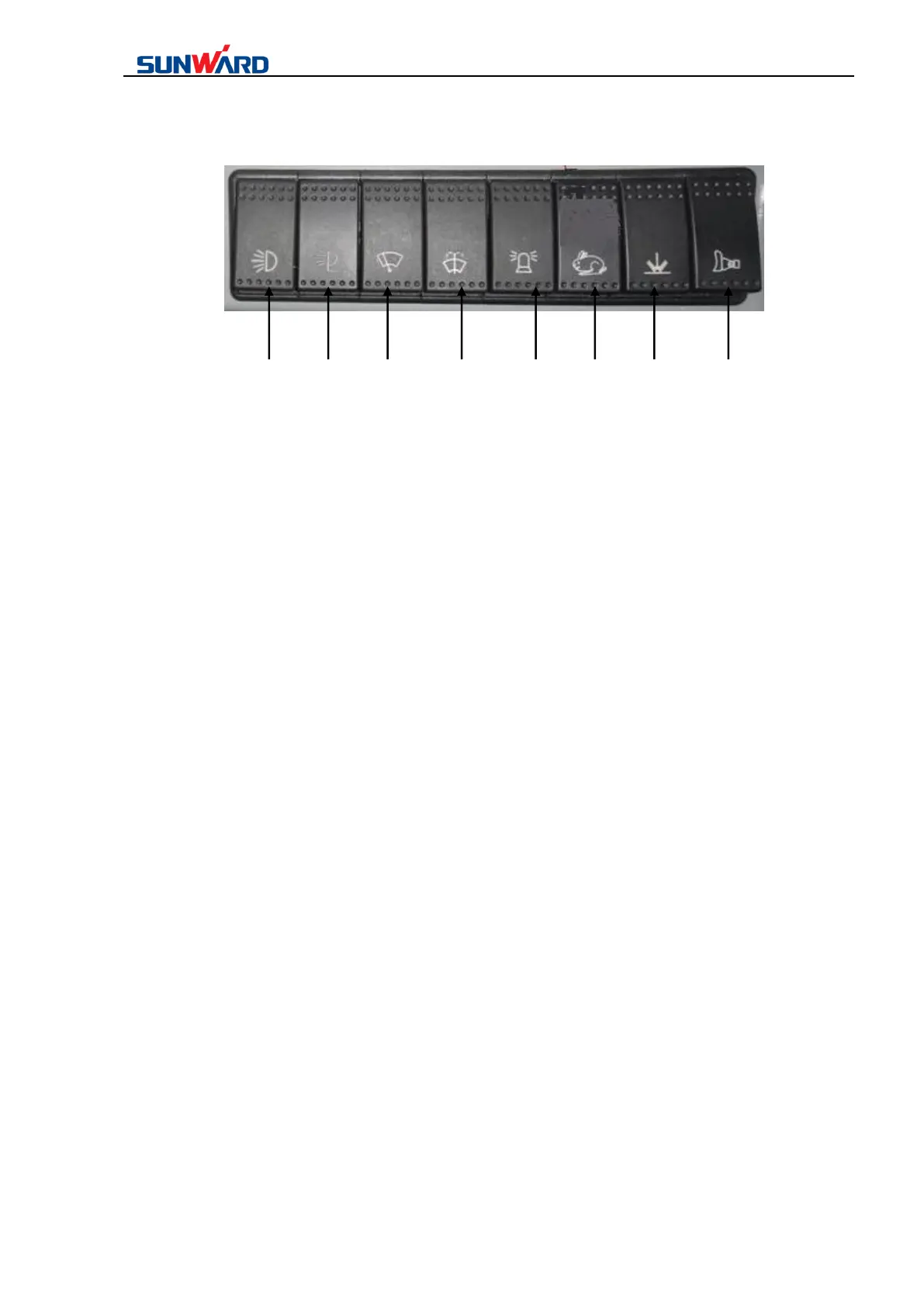

As figure 2.3.1
1 —Work lights switch
This switch turns the work light on and off. When press the switch, the work light and the green light turn on;
when press the switch again, the work light and the green light go out.
2 — Cabin top light switch
This switch turns the Cabin top light on and off. When press the switch, the cabin top light and the green light
come on; when press the switch again, the top light and the green light go out.
3 — Wiper switch
This switch turns cabin wiper on and off. When press this switch, wiper begin to work, green light comes on;
press this switch again, green light goes out, wiper stop work.
