OPERATION & MAINTENANCE MANUAL SWE50E/SWE60E/SWE70E/SWE80E9/SWE100
4 — Cleaner switch
This switch turns washing water on and off. When press
this switch, washing water begins to work, the light comes
on; press this switch again, the light goes out, washing
water is turned off.
5 — Warning light switch
This switch turns the warning light on and off. When press
the switch, the switch light flashes and the red light turns
on; when press the switch again, the red light turns off and
the warning light stops flashing.
6 — High speed traveling switch
Press this switch, green light comes on, the machine is on high speed condition; press this switch again, green
light goes out, the machine is on low speed condition.
7 — Breaking/swing switch (optional)
This switch controls the movement conversion between
boom swing and breaking works (if the machine equipped
with them)
8 — Blade Conversion switch (optional)
This switch controls the movement of blade ,press the
switch,then operate blade pilot valve ,blade starts to
work.(if the machine equipped with blade)

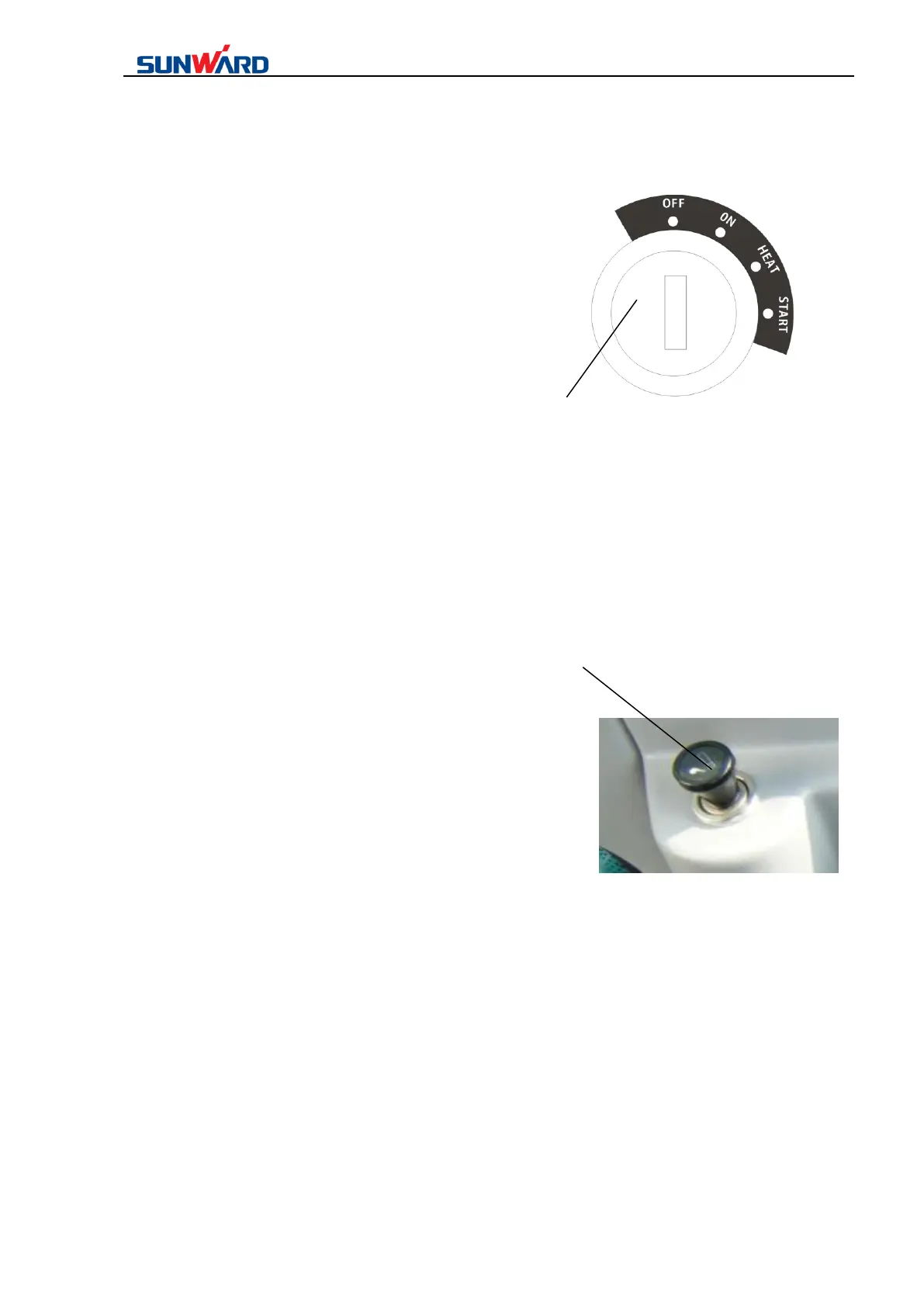

9 — Key switch
① —OFF （engine stop）
② —ON （power on）
③ —HEAT (preheating)
④ — START （start engine）
10 — Cigar kindling device (As figure 2.3.3)
Press this device, it will rebound after few seconds, take it out and kindle cigarette.
