OPERATION & MAINTENANCE MANUAL SWE50E/SWE60E/SWE70E/SWE80E9/SWE100
4.5.3.8 Replace bucket teeth.
Replace bucket teeth before bucket teeth
holder wears out.
Warning
It’s dangerous if the work equipment
moves by mistake when the teeth are
being replaced. Set the work equipment
in s table condition, stop the engine,
and then set the safety lock levers
securely to the LOCK position.
If the lock pin is knocked out by force,
there is hazard that pins may fly out.
Check to ensure nobody is in the
surrounding area.
During replacement operation, there
is hazard of flying out pieces. So wear
protective glasses, gloves, and other
protective equipment.

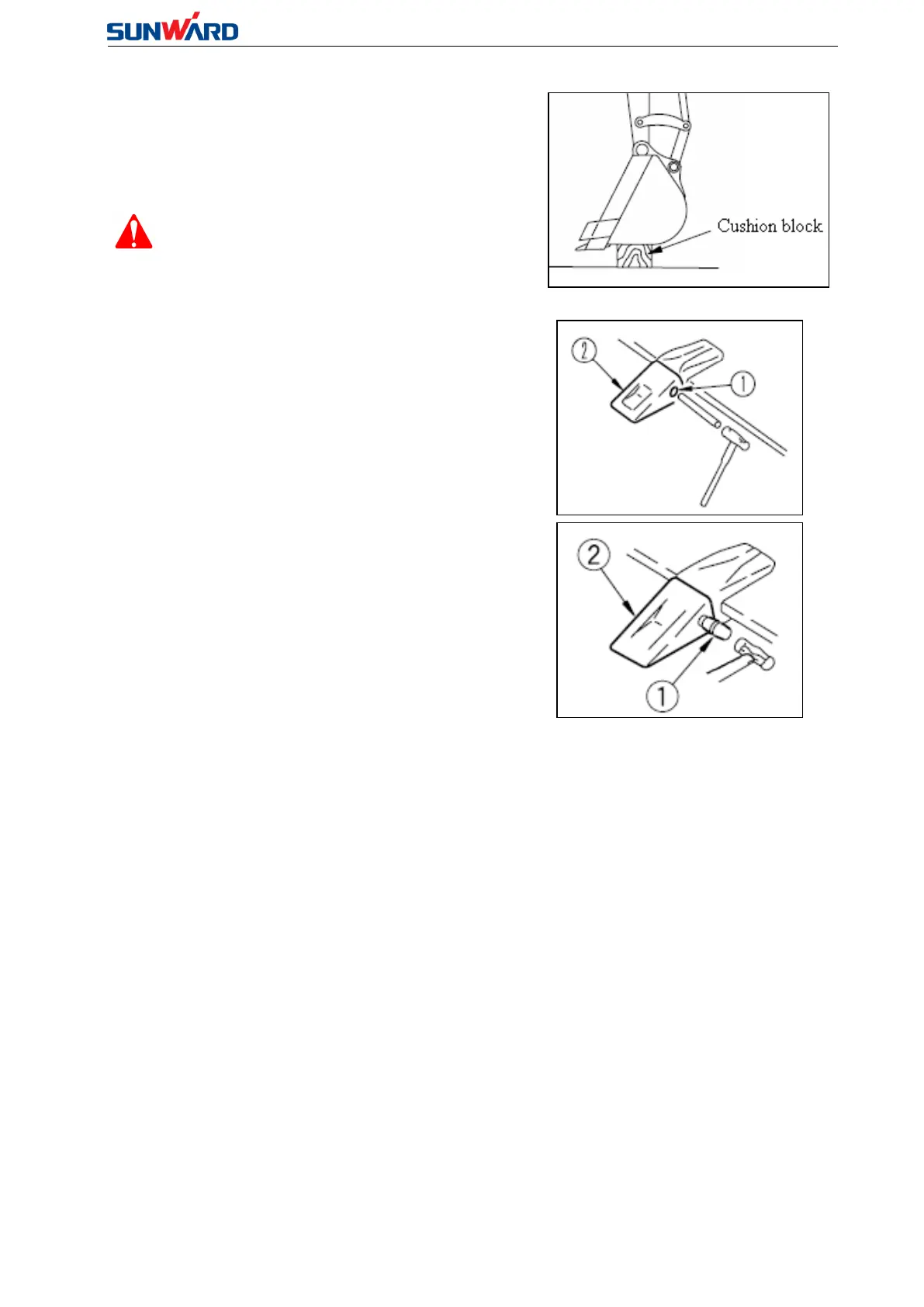

Lower the bottom surface of the bucket
on a block, check that the work
equipment is in a stable condition, then
set safety lock lever to the LOCK
position.
Place a metal rod (diameter is a little
smaller than pin) against the back of the
pin), use hammer to knock out pin (1),
then remove bucket teeth (2).
Clean mounting surface, place new
bucket teeth (2) to teeth holder, push
pin (1) partly into it by hand, then use
hammer to knock in lock pin to position
it to bucket holder.
