4.5.6.2 Checking travel redactor gear oil
level

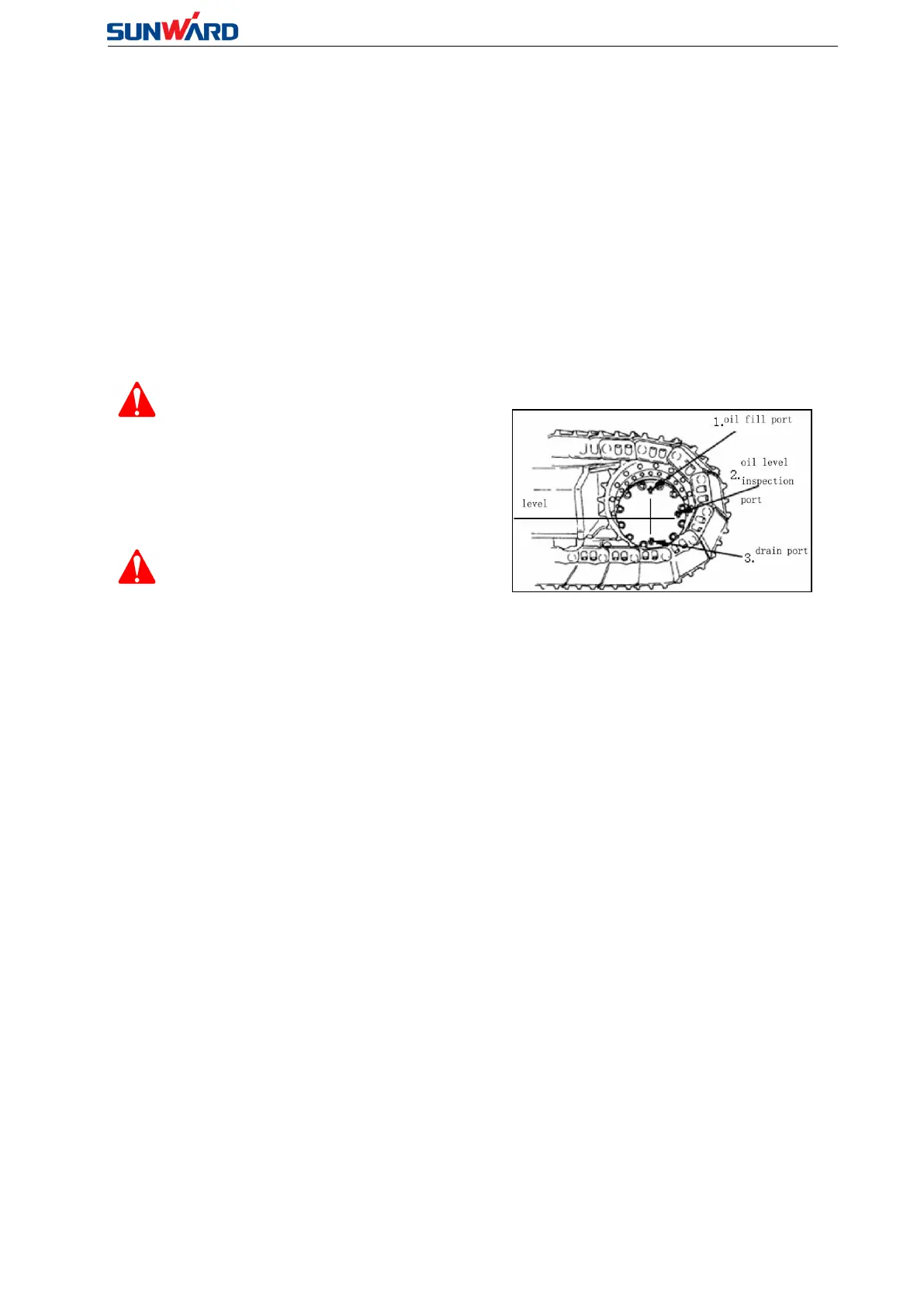

Stop the machine at level ground, set the
connect line of travel redactor oil fill
port 1 and drain port 3 is vertical from
horizontal level.
Shut auto-idle speed switch, run the
engine unloaded at low speed for 5
minutes.
【Important】
Stopping the engine improperly may
damage turbocharger.
Set start key to OFF position, stop the engine,
remove the key from starting lock, set safety
lock lever to LOCK position.
Note
After completing work, gear
temperature may be very high. Wait for
temperature to cool down before
loosening oil fill plug of fill port
1. Pay attention that to keep body and
face away from oil fill port 1 during
operation.
With gear oil cooled down, gradually
loosen oil fill port plug to release
pressure.
Remove plug of oil fill port 1 and
inspection port 2, check through
inspection port 2 that gear oil level
must be within the range of 10mm
under inspection port2.
If necessary, add lubricating gear oil
through oil fill port 1, and then recheck
oil level.
Reinstall plug screw of oil fill port 1 and
inspection port 2.
Check the gear oil level on another side
of travel redactor with the same
manner.
