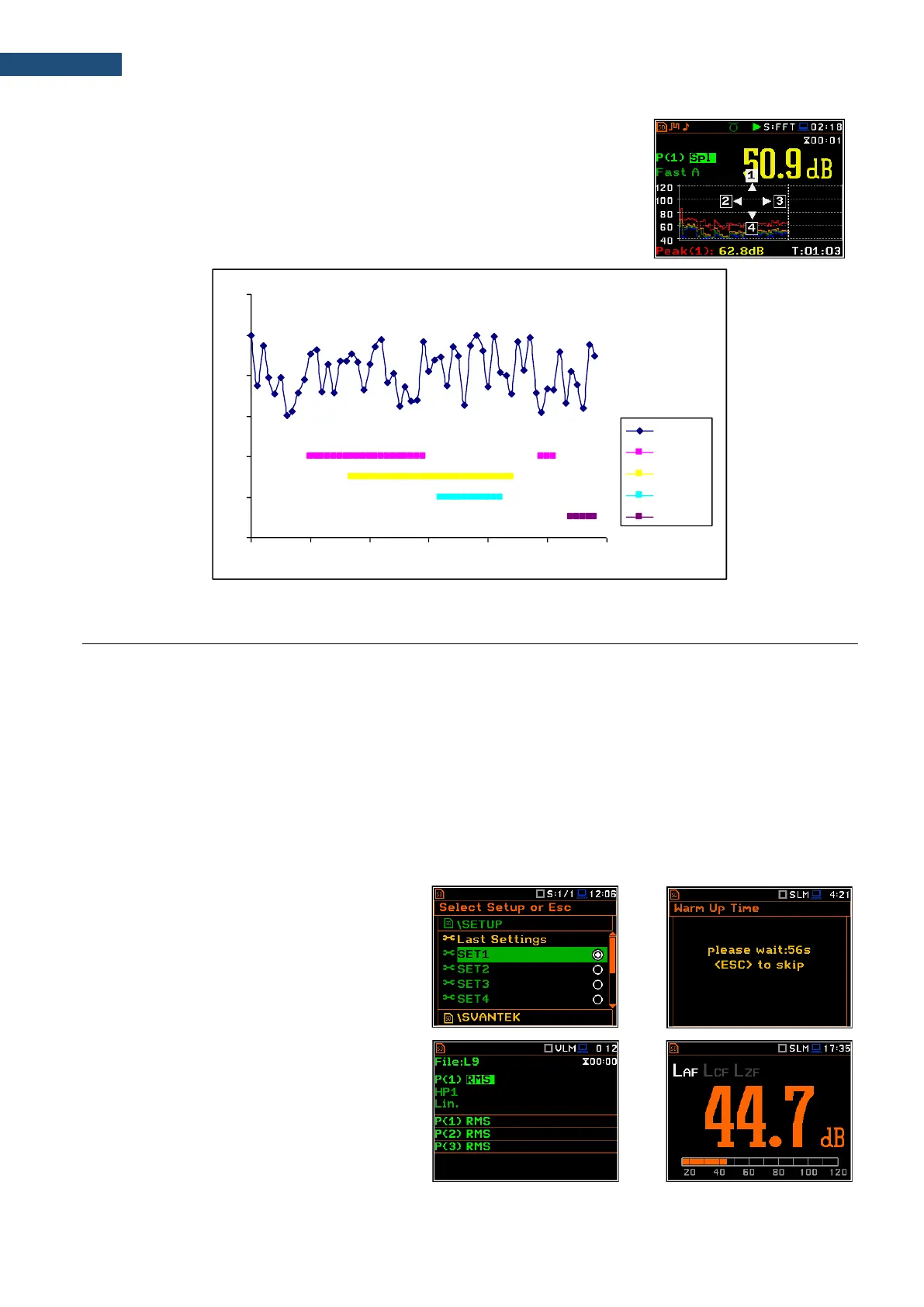

An example presentation of the markers on the time history plot is shown below.
2.7 WORKING WITH THE INSTRUMENT
The instrument is controlled by means of nine keys on the keypad. Using these keys, one can access all available
functions and change the value of all available parameters.
The instrument is equipped with the Blanview TFT-LCD 2.4” colour display (320 x 240 pixels), which displays
the measurement results and the configuration menu.
The instrument has two general modes of operation: measurement performance and results preview mode and
configuration mode with the use of Menu functionality.
Turning on the instrument
To turn the instrument on, press the <Alt> and <Start/Stop> keys at the same time.
The instrument goes through the self-test routine after turning on, displaying during this time the manufacturer
logo, the name of the instrument and the firmware version.
Then it enters the screen with the list of
settings from which you can select the
required one and confirm the selection with
the <ENTER> key or skip selecting with the
<ESC> key.
The instrument will warm up for one minute,
then it enters one of the results view mode:
• in case of vibration measurement - the
Default mode set in the Display Modes
screen, or
• in case of sound measurement - the
Running SPL mode, if it was enabled,
or the Default mode set in the
Display Modes screen, if the Running
SPL mode was disabled.
20
30
40
50
60
70
80
13:30:00 13:30:09 13:30:17 13:30:26 13:30:35 13:30:43 13:30:52
Leq
Marker 1
Marker 2
Marker 3
Marker 4
