Note: In Vibration modes, results can be presented in the Logarithmic (dB) or Linear (for example,
m/s
2
) units. It depends on the Scale parameter value. For example, 10 m/s
2
can be presented also
as 140 dB.

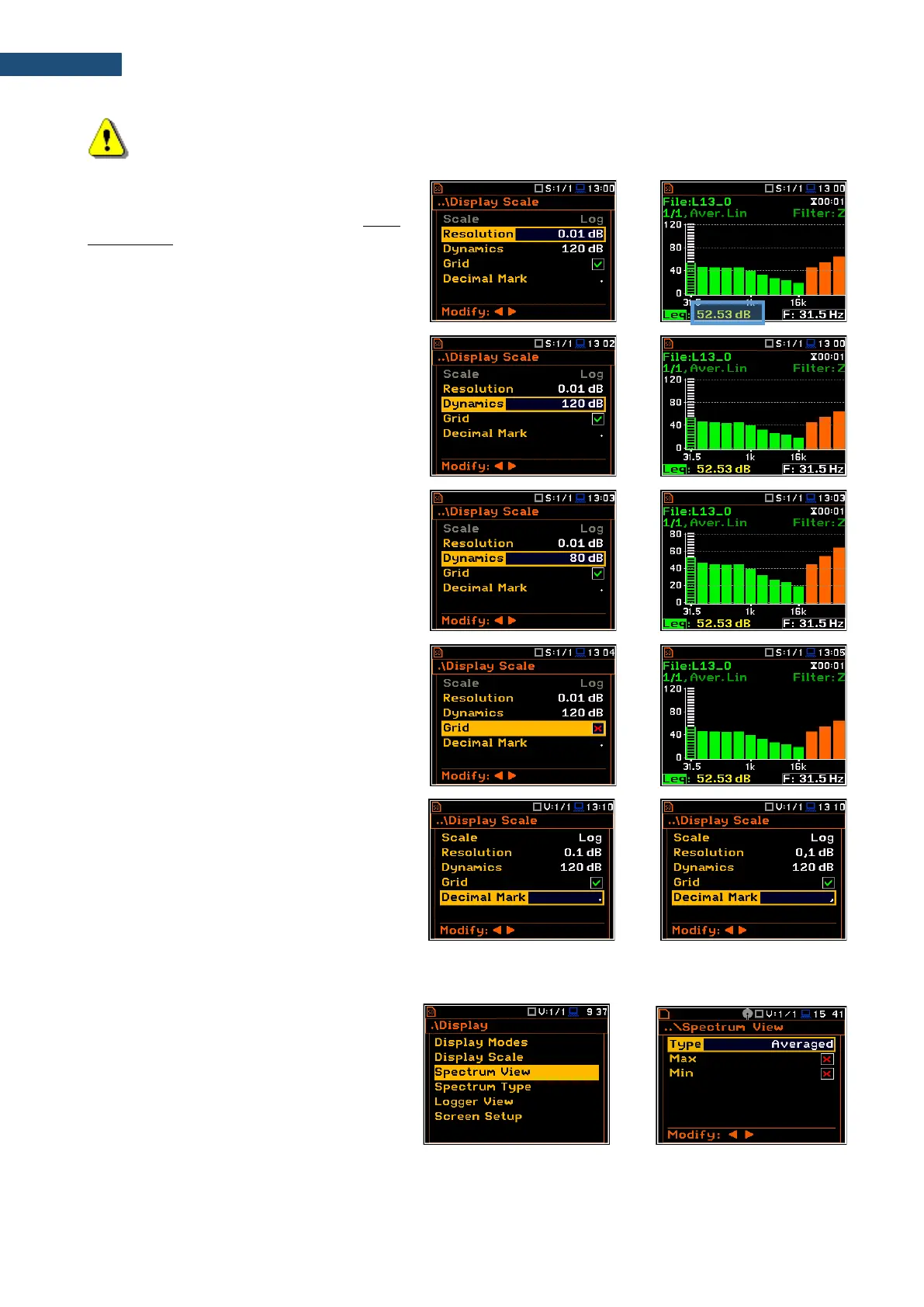

Resolution
The Resolution parameter appears when
Scale is Log and defines the number of digits
after the decimal point in the presented
results: one digit after the decimal point
(0.1 dB) or two digits after the decimal point
(0.01 dB).
=>
Scaling vertical axis
The Dynamics parameter defines the
dynamic range of the Y-axis scale.
=>
It is possible to select the range from the set:
10dB, 20dB, 40dB, 80dB, 100dB and 120dB.
=>
Switching grid on/off
The Grid position allows you to toggle the
horizontal grid lines of the logger or spectrum
plot.
=>
Decimal Mark
The Decimal Mark position allows you to
select which decimal mark (point or comma)
will be used for data presentation in all views.
►
10.3.3 Selecting the spectra to be viewed – Spectrum View
In the Spectrum View screen, you can select
different spectra to view in the Spectrum
view.
In the Type position, you may choose the
spectrum type to be presented as a bar plot:
<ENT>
