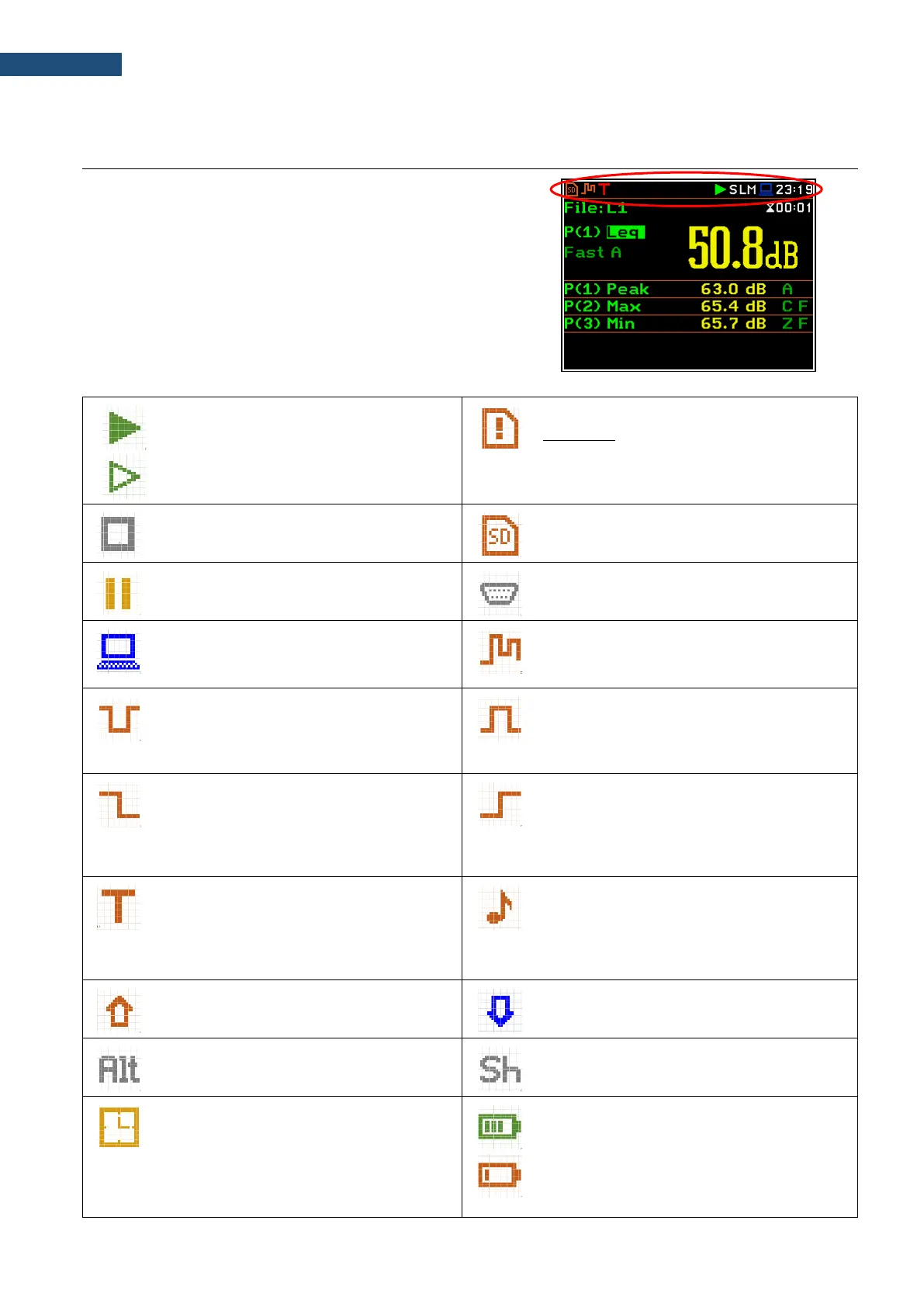

2.9 DESCRIPTION OF ICONS
Additional information about the instrument’s state is given by
means of the row of icons visible in the top of the display.
The type of measurement function and the measurement mode
(SLM, VLM, S:1/1 etc.) as well as real time clock (RTC) is also
displayed in the same line together with icons.
Meanings of the icons are as follows:
“measurement” icon is displayed when the
measurement is running, and the icon
shape is changing from self to contoured.
“memory warning” icon is displayed when
there is no inserted micro SD-card.
“stop” icon is displayed when the
measurement is stopped.
“SD-card” icon is displayed when the micro
SD-card memory is inserted.
“pause” icon is displayed when the
measurement is paused.
“RS232” icon is displayed when the RS232
port is activated.
„USB” icon is displayed when there is a
successful USB connection with the PC.
„logging” icon is presented when current
measurement results are logged into the
logger file.
„level-” icon is displayed when the “Level-
” trigger is waiting for a condition fulfilment.
The icon appears alternately with the
„measurement”, „logging” or „wave” icons.
“level+” icon is displayed when the “Level+”
trigger is waiting for a condition fulfilment. The
icon appears alternately with the
„measurement”, „logging” or „wave” icons.
“slope–” icon is displayed when the
“Slope-” trigger is waiting for a condition
fulfilment. The icon appears alternately with
the „measurement”, „logging” or „wave”
icons.
“slope+” icon is displayed when the “Slope+”
trigger is waiting for a condition fulfilment. The
icon appears alternately with the
„measurement”, „logging” or „wave” icons.
“trigger” icon is displayed when other than
Level or Slope trigger is waiting for a
condition fulfilment. The icon appears
alternately with the „measurement”,
„logging” or „wave” icons.
„wave” icon is displayed when the wave
recording is active (wave files with extension
WAV are saved automatically).
„overload” icon is displayed when an
overload appears.
„underrange” icon is displayed when an
underrange appears.
“alt” icon is displayed when the <Alt> key
is pressed.
“shift” icon is displayed when the <Shift>
key is pressed.
“clock” icon is displayed when the timer is
On. It is active when the instrument is
waiting for the measurement start-up to
occur. When the measurement start is
close, the icon changes its colour to green
and starts blinking.
“battery” icon is displayed when the
instrument is powered from the internal
batteries. The icon corresponds to the status
of the batteries (three, two, one or none
vertical bars inside the icon). When voltage of
batteries is too low, the icon becomes red.
