APPENDIX G. SA 277D OUTDOOR MICROPHONE KIT ASSEMBLY GUIDE

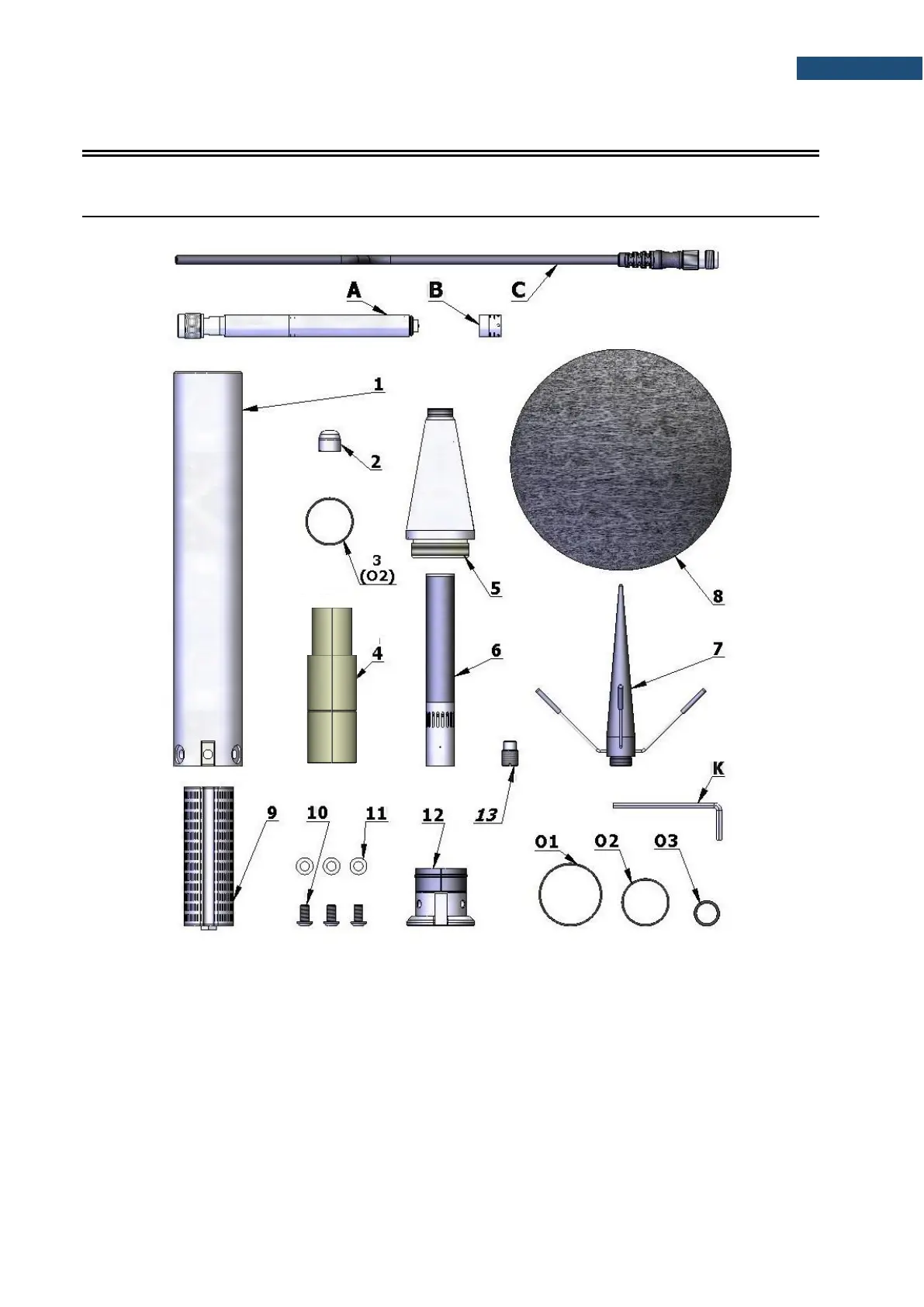

G.1. PART SET
SA 277D kit:
1 - tube
2 - dummy microphone
3 - O-ring type gasket
4 - clamp (2 halves)
5 - upper cone
6 - microphone protecting tube
7 - anti-bird spikes
8 - windscreen (SA 209)
9 - desiccator (not included)
10 - M5x10 hex socket raised screw
11 - washer
12 - bottom
13 - ¼” thread adapter (not included)
Tools:
K - 3mm Allen key
Spare parts:
O1 - O-ring type gasket Ø35x1
O2 - O-ring type gasket Ø26x1
O3 - O-ring type gasket Ø12x1.5
Parts not included:
A – SV 12L preamplifier
B – MK 255 microphone
C – SC 236 / SC 26 cable
