144 097-55501-01 Issue 6 – June 2003
1
TimeHub 5500 System Guide
12
(cont’d)
If using TimeScan THC:

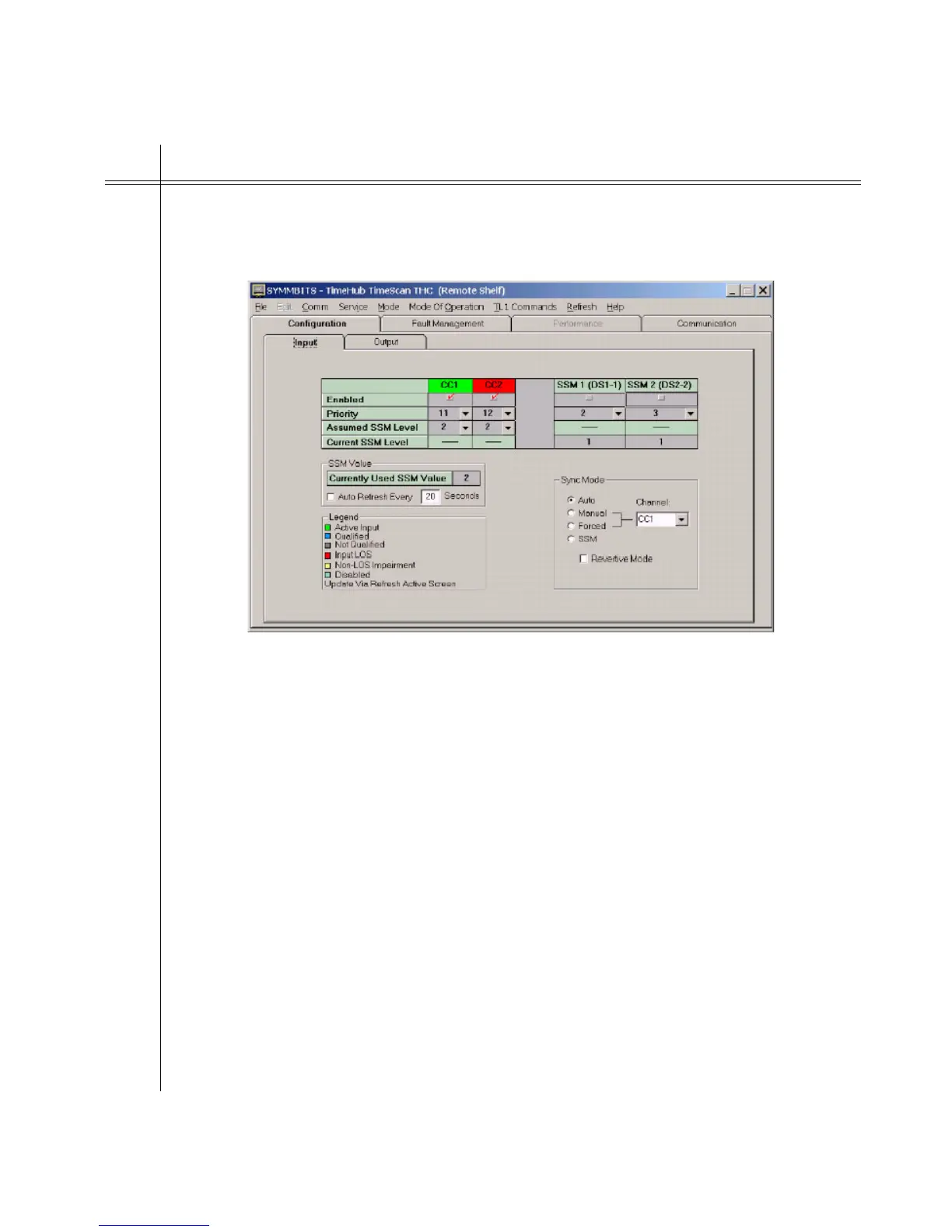

a. Bring up the Input Configuration screen by selecting the Configuration tab and the
Input subtab.
The columns labeled CC1 and CC2 identify the inputs that can be selected as timing
references. The other columns (SSM 1 and SSM 2) are advanced features that are not
covered here. The top row in this screen, labeled Enabled, shows which inputs are
enabled.
b. Based on the timing references planned for this installation, set the enabled row
appropriately. Check CC inputs to be used, uncheck CC inputs that will not be used.
If using terminal software, such as HyperTerminal, the general TL1 command form for
enabling or disabling an input is:
ED-SYNC::CLK-a:<ctag>:::ENABLE=b;
Where a = 10 or 11 (10 = CC1, 11 = CC2) and b = Y to enable, N to disable the input.
Based on the inputs you will actually use, enable or disable inputs as appropriate. For
example, to disable CC2, type and send the command:
ED-SYNC::CLK-11:SV460:::ENABLE=N;
The enable state of CC2 can be retrieved with:
RTRV-SYNC::CLK-11:SV461:::PARAMETER=ENABLE;
Procedure 4-9. System Configuration (Cont’d)
Step Action
To Next Page
