RUN MED: Service & Maintenance Manual - rev. 1.0

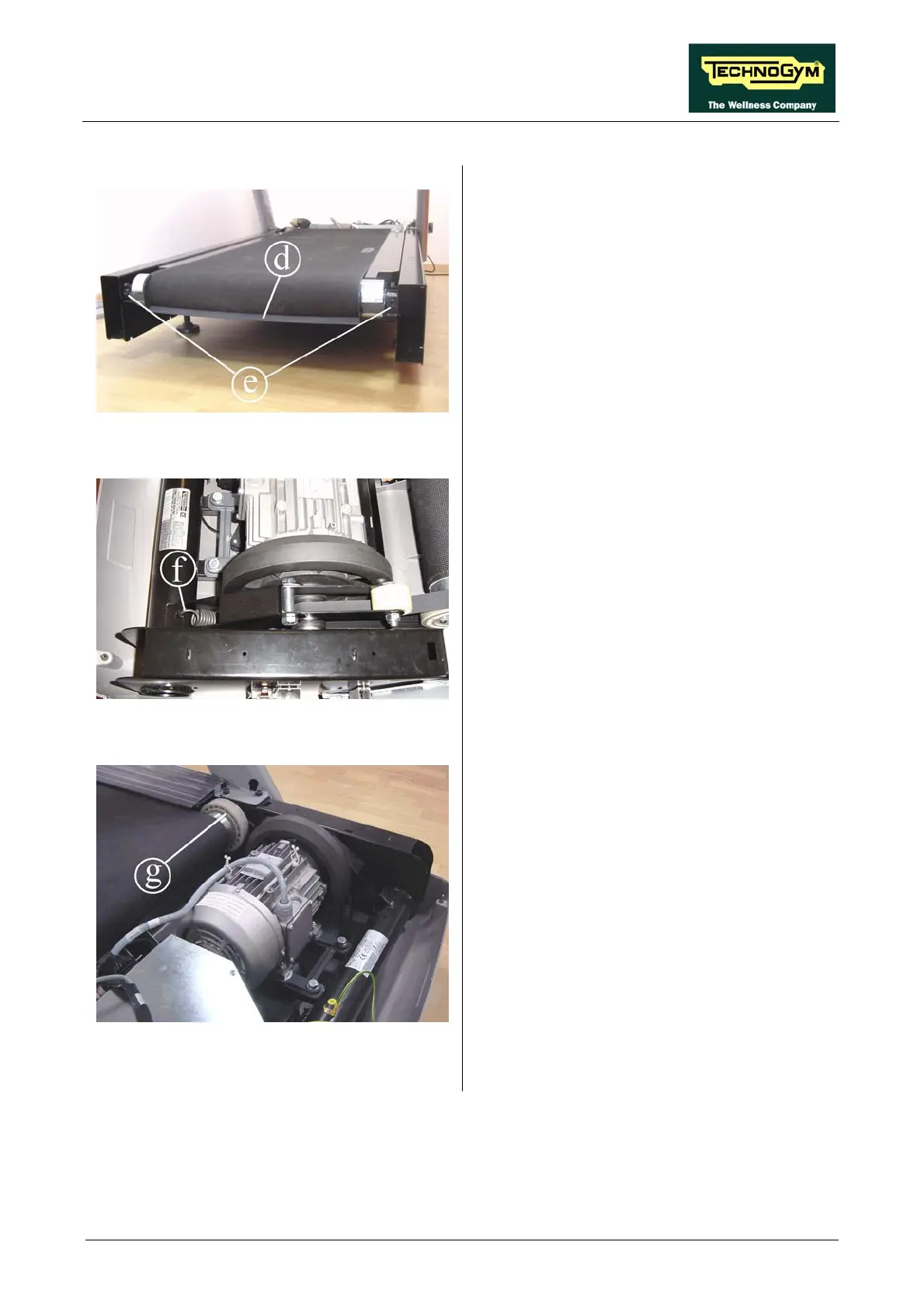

Figure 7.17-3
6. Remove component d.
7. Slacken the belt tension by backing off the
two screws e which act on the rear machine
roller, using an 8-mm Allen wrench.
Figure 7.17-4
8. the tensioning Release the spring f of
mechanism between the drive-belt and the
front roller of the tread belt.
Figure 7.17-5
9. Disengage the motor drive belt from the
pulley g on the front roller.
10. Remove the driving roller, extracting it from
the top on the right side and pulling it out
axially from the left.
Continued on following page →
Page 7.23
