Negative Width Measurement
This timing measurement is the distance (time) between the mid reference (default 50%)
amplitude points of a negative pulse. The measurement is made on the first pulse in the waveform
or gated region.
Noise Peak-to-Peak
Noise p-p is the peak-to-peak value of the noise of the top or base of the signal as specified by
you. To ensure accurate noise values, be sure to set the signal type to Eye when measuring an Eye
signal. Noise Pk-Pk = PToppk-pk or PBasepk-pk
Noise Root Mean Square
Noise RMS is the RMS value of the noise of the top or base of the signal as specified by you. To
ensure accurate noise values, be sure to set the signal type to Eye when measuring an Eye signal.
Noise RMS = PTopsigma or PBasesigma
Normal Trigger Mode
Normal trigger mode causes the instrument to wait for a valid trigger event before displaying
waveform data. Normal trigger mode is most useful during single-shot acquisitions.

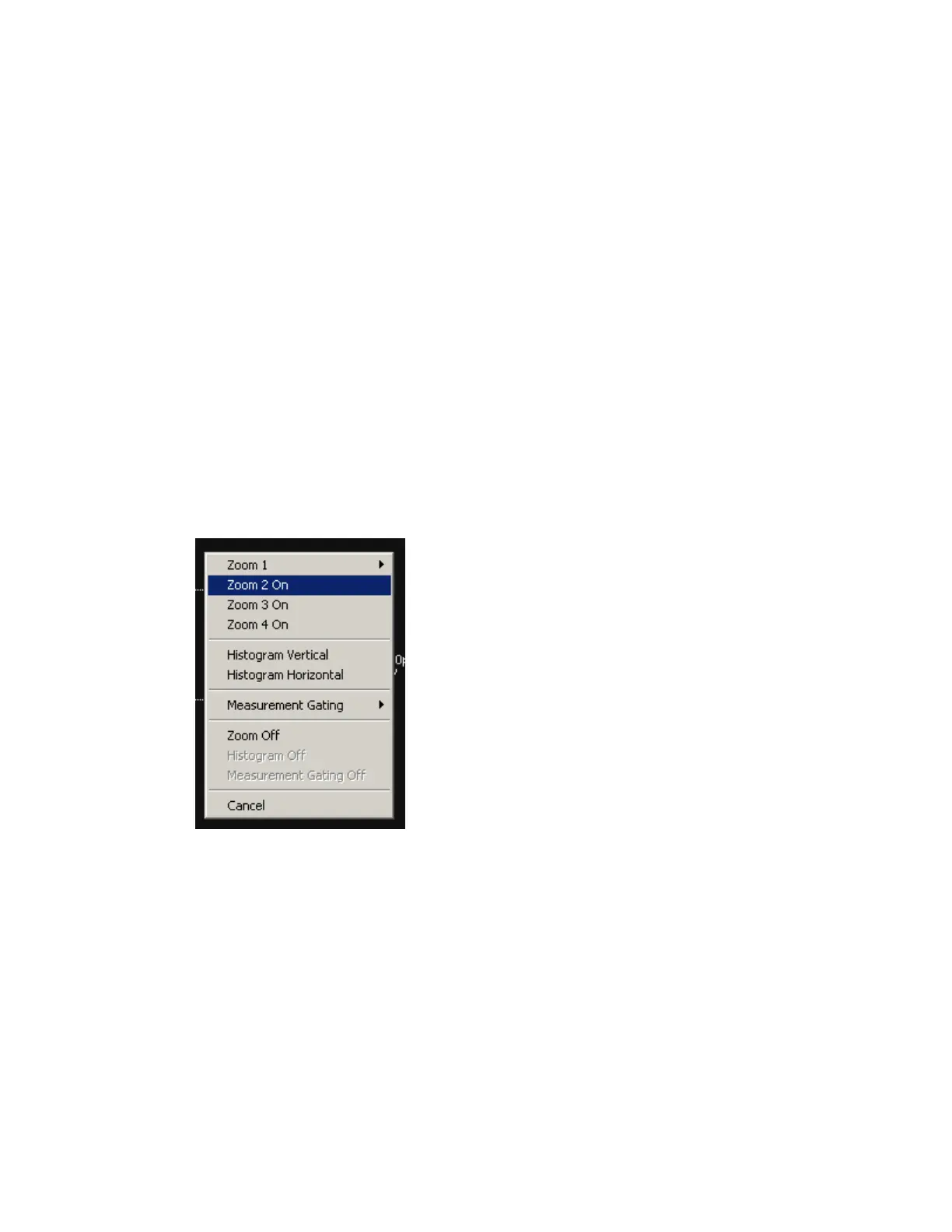

On-Screen MultiView Zoom Menu Item
Peak Hits
Displays the number of points in the largest bin of the histogram.
Peak to Peak
This voltage measurement is the absolute difference between the maximum and minimum
amplitude in the entire waveform or gated region.
Period
This measurement is the time required to complete the first cycle in a waveform or gated region.
Period is the reciprocal of frequency and is measured in seconds.
