Various menu settings

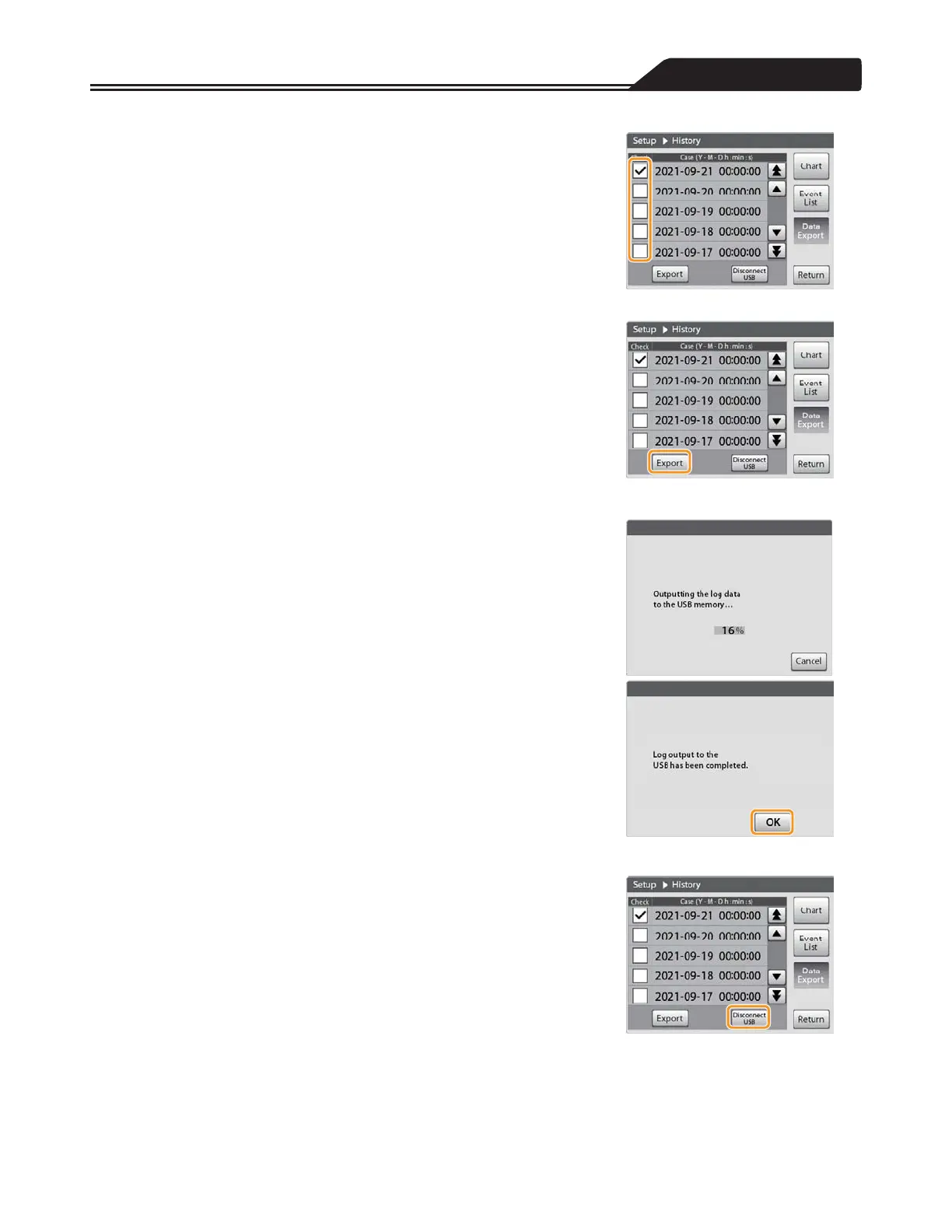

3. Tap the check box of the log file to export to insert a check
mark. (Figure 3-53)
Figure 3-53
4. Tap [Export]. (Figure 3-54)
The mounting process of the USB memory drive is performed and the log
data export process to the USB memory drive is started.
The export status to the USB memory drive is displayed by percentage.
(Figure 3-55)
When the data export finishes, the screen will display a log output complete
message. (Figure 3-56)
Figure 3-54
5. Tap [OK]. (Figure 3-56)
Figure 3-55
6. Tap [Disconnect USB]. (Figure 3-57)
[Disconnect USB] is turned off, and the USB memory drive can be removed.
Figure 3-56
Figure 3-57
97
