Turns Ratio Measurement
12.3.2 Active Window

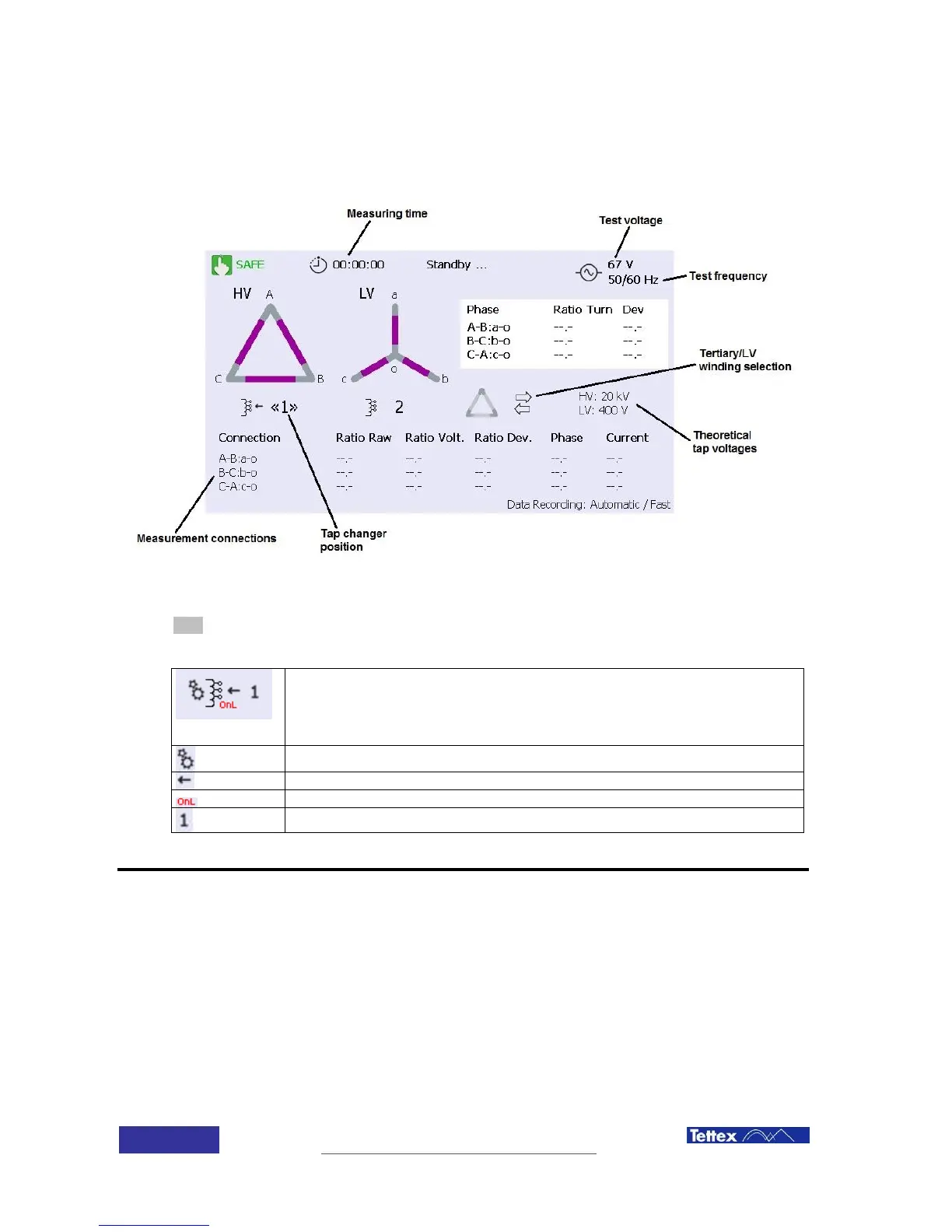

The turns ratio measurement screen is below described:
* SC = Shortcut; direct action or access to setup over touching
Tap Changer Visualization:
Tap changer graphical representation
“Remote Controlled” is active in dialog “Setup”
this winding is selected at “Tap Control” / “Winding” in dialog “Setup”
tap-changer is defined as “On Load” in “DUT” dialog
Actual tap position
12.4 Performing a Ratio Measurement
12.4.1 Measurement steps
Performing a turns ratio measurement on a transformer consist of following steps
