Magnetic Balance
Change display to graphic mode
Open setup menu for the selected measuring application
13.4.2 Active Window

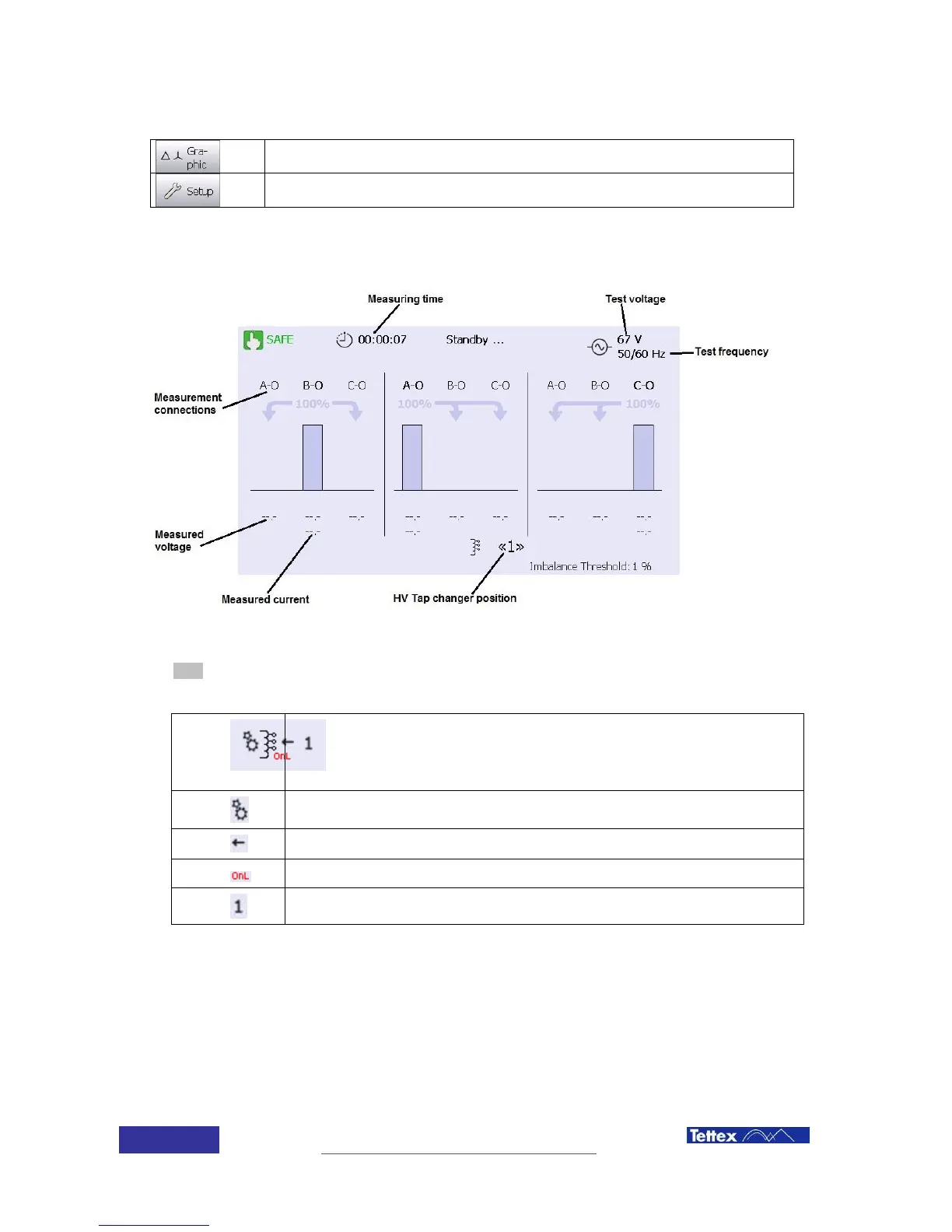

The magnetic balance measurement screen is described below:
* SC = Shortcut; direct action or access to setup over touching
Tap Changer Visualization:
Tap changer graphical representation
“Remote Controlled” is active in dialog “Setup”
this winding is selected at “Tap Control” / “Winding” in dialog “Setup”
tap-changer is defined as “On Load” in “DUT” dialog
Actual tap position
