Tettex 2293 - Measurement Single Phase; Measurement 3 Phase Sequential; View Results

Heat Run – Cooling Curve
85
9.3.6 Measurement Single Phase

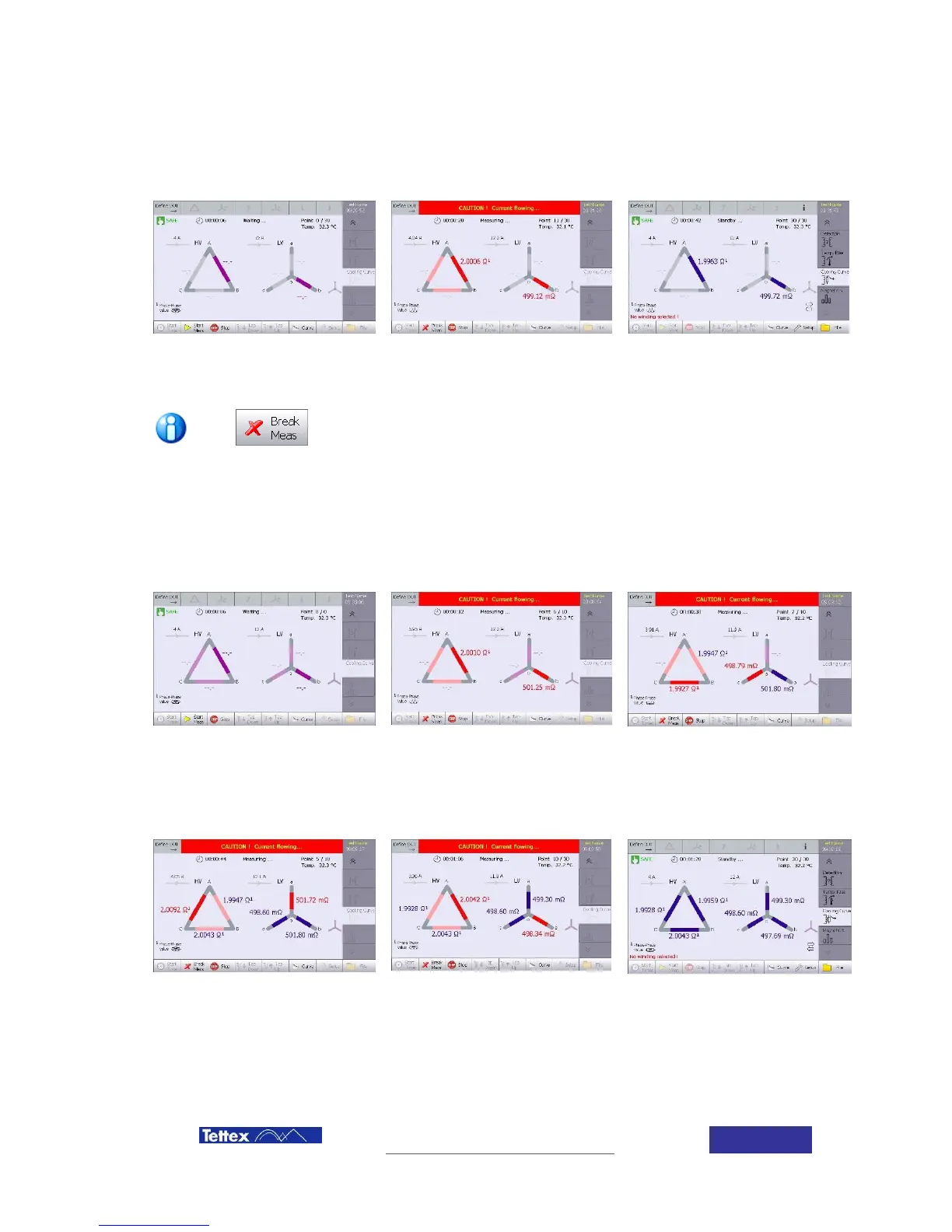

Measurement consist on two steps, initiate the timer when the power supply is disconnected, and
then, after connecting the instrument by clicking the start button.
Start the timer when power supply
is disconnected by clicking Start
Timer, timer starts to count.
When instrument connected, click
Start Meas, a reading is stored
every defined time interval.
All measurement points recorded,
measurement finalized, last
measurement value is shown.
Stops the resistance measurement but NOT the timer (with “Start Meas” the
measurement can be reactivated)
9.3.7 Measurement 3 Phase Sequential
Measurement consist on two steps, initiate the timer when the power supply is disconnected, and
then, after connecting the instrument by clicking the start button.
Start the timer when power supply
is disconnected by clicking Start
Timer, timer starts to count.
When instrument is connected,
click Start Meas. Auxiliary
measurements of the selected
phase are recorded every
second.
Auxiliary measurements of the
selected second phase are
recorded every second.
Auxiliary measurements of the
selected third phase are recorded
every second.
The main measurement. A
reading is stored every defined
time interval.
All measurement points recorded,
measurement finalized, last
measurement value is shown.
9.3.8 View Results
