Tettex 2293 - USB Type a Host Port

38
Connection and Setup
Terminal B

positive of first voltage measurement
Terminal C

negative of first voltage measurement
Terminal b

positive of the second voltage measurement
Terminal c

negative of the second voltage measurement

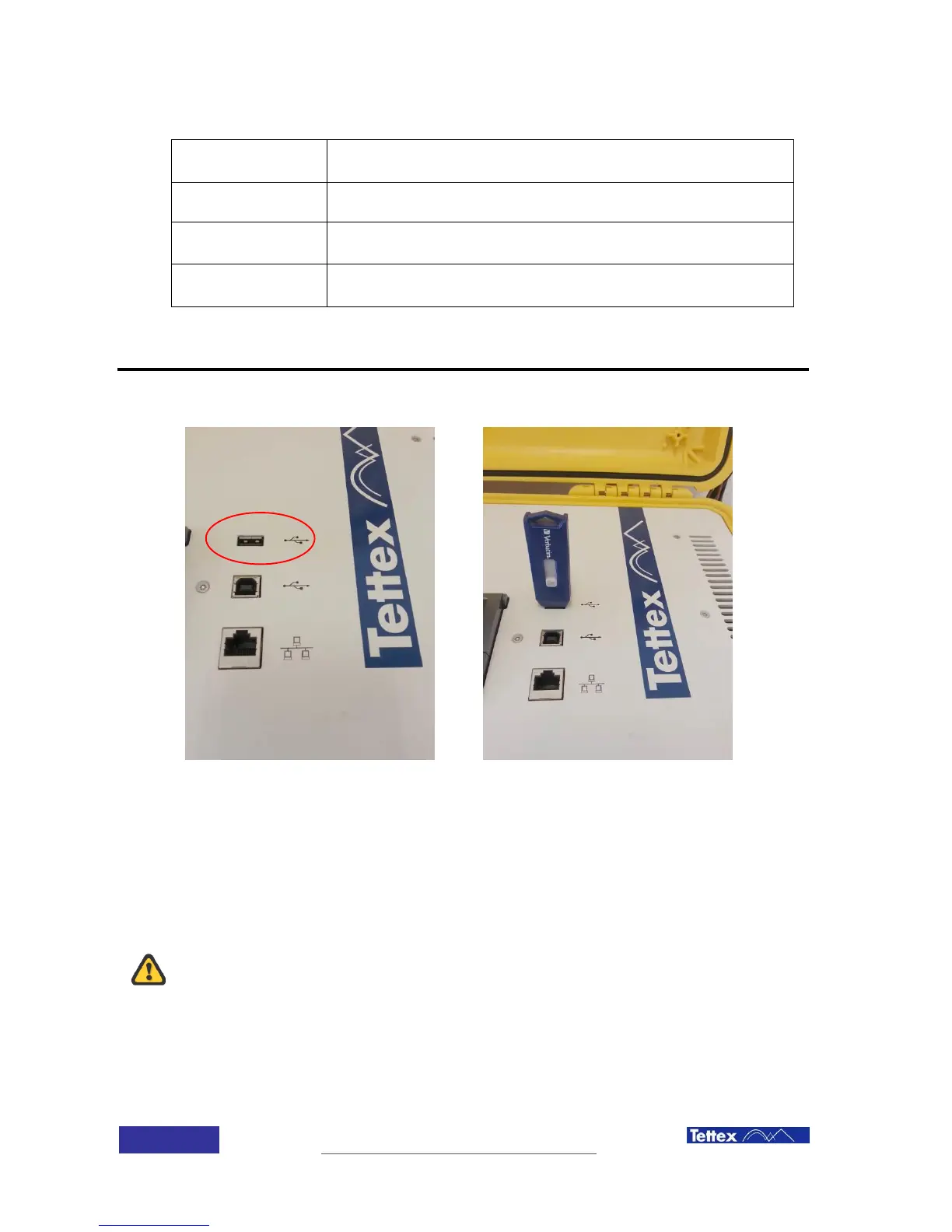

5.3 USB Type A Host Port
The USB Type A Host Port support various devices:
- USB Flash Memory Stick (for Data Export)
- Keyboard
- Mouse
- Hub
Please note that the USB Type A Standard specifies a maximum of 1500 mating cycles. 10
mating cycles per day would easily lead to connector degradation within 1 Year.
