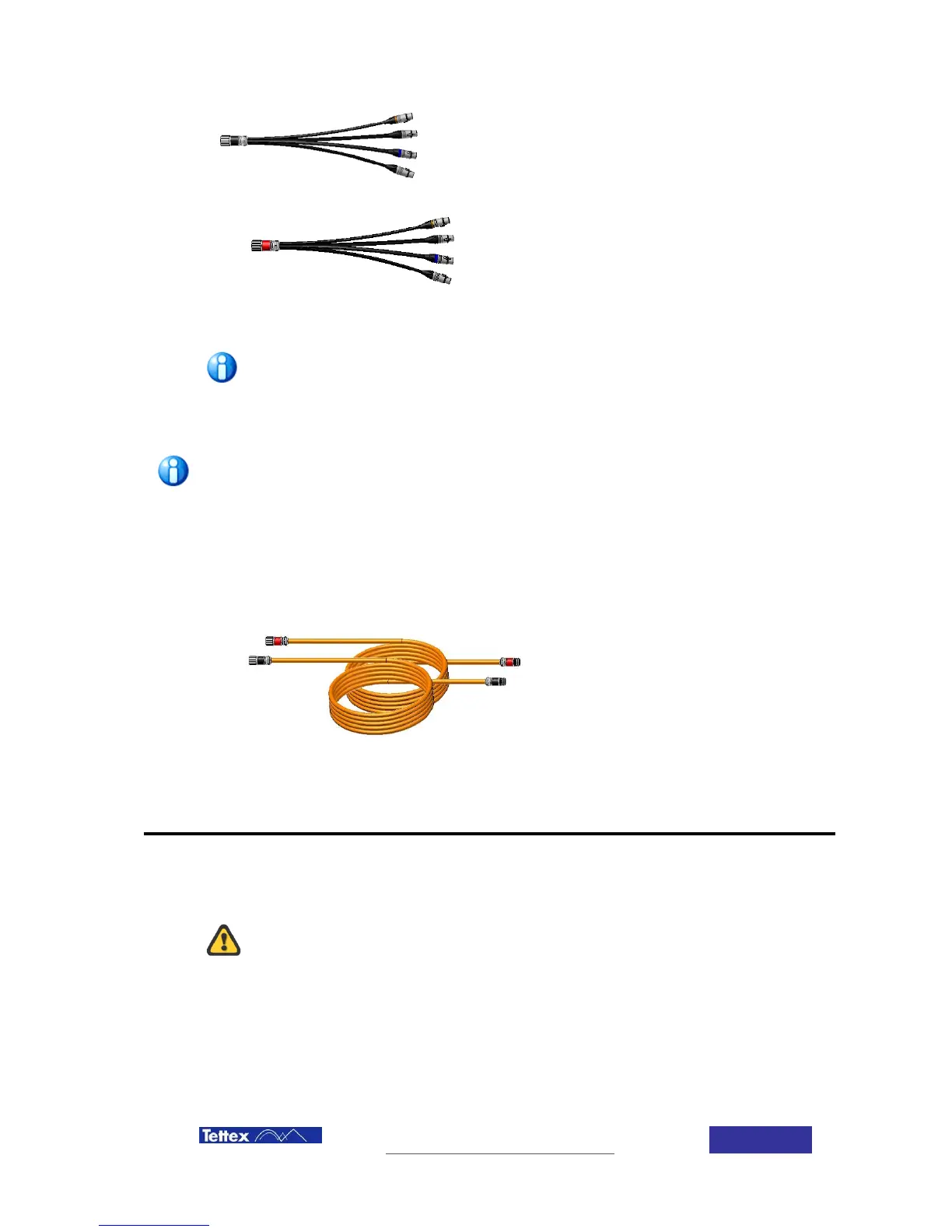

Adaptor for the low volt side
(black ring in the connector)
Adaptor for the high volt side
(red ring in the connector)
Colour code has been defined in the cables and must be followed to guarantee the
proper device connection. Red is used for the connections to the DUT’s High
Voltage side “H”, Black is used for the connections to the DUT’s Low voltage side
“L”.
During a 32A test the cables are operating at their maximum specification and it’s
normal operation that they get warm.
5.1.1 Cable extensions (optional)
As option, extension cables of 10 m are available.
Extension cables, same colour code is
used.
5.2 Connecting the Instrument
Before attempting to connect to the test object make sure that it is fully
disconnected and de-energized.
