Tettex 2293 - Application Hints; Core Magnetization; Winding Short-Circuits

Magnetic Balance
141
13.6 Application hints
13.6.1 Core Magnetization
Magnetic Balance results are sensitive to Transformer Core Magnetization. To get reproducible
results, make sure to properly demagnetize the transformer core (directly) before performing a
magnetic balance test:
In a lot of cases, the built-in demagnetization function of the WA2293 will deliver good result.
In some cases, especially for larger power transformer (>50MVA), it can be necessary to use a
High Voltage AC power supply to properly demagnetize the transformer. Usually 110% of the
nominal winding voltage is necessary.

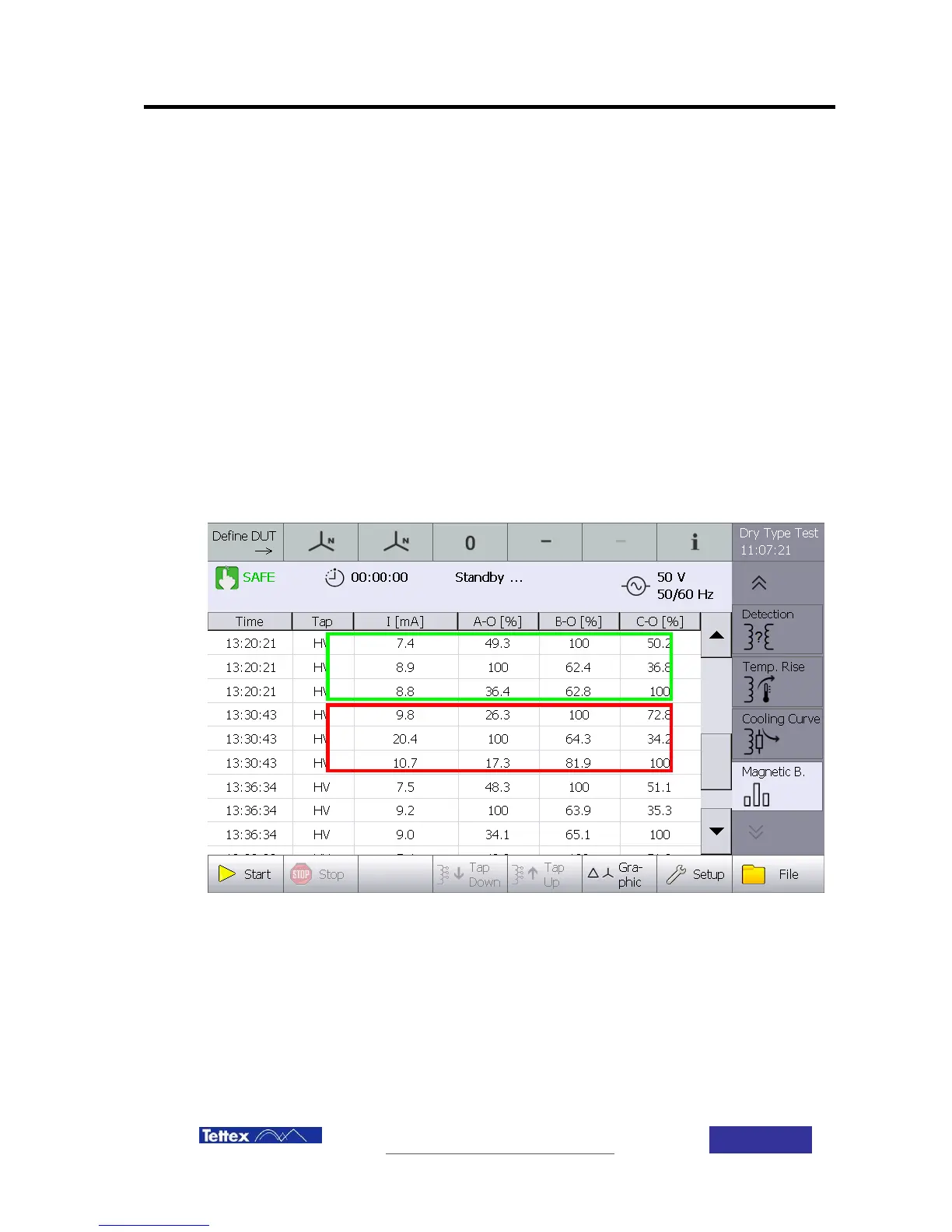

The following example shows an YNyn0 DryType Transformer in two cases:
The upper results show a proper measurement (green box)  Balance is nearly 50%/50% on the
middle phase.
The lower results show a measurement with a magnetized transformer core (red box)  Balance
is bad on the middle leg (26.3%/72.8%).
13.6.2 Winding short-circuits
A single turn fault can cause high magnetic imbalance. Also the excitation current can be greatly
influenced. The following example shows an YNyn0 DryType Transformer in two cases:
The upper results show a proper measurement (green box)  Balance is nearly 50%/50% on the
middle phase.
The lower results show a measurement with a single turn short-circuit on phase A of the high
voltage winding (red box)  Balance is very bad on the middle leg (8.66%/94.0%).
