Connection and Setup
5 Connection and Setup
5.1 Connection Cables
The equipment is delivered with 8 measuring cables and two adaptors as standard scope of
supply.

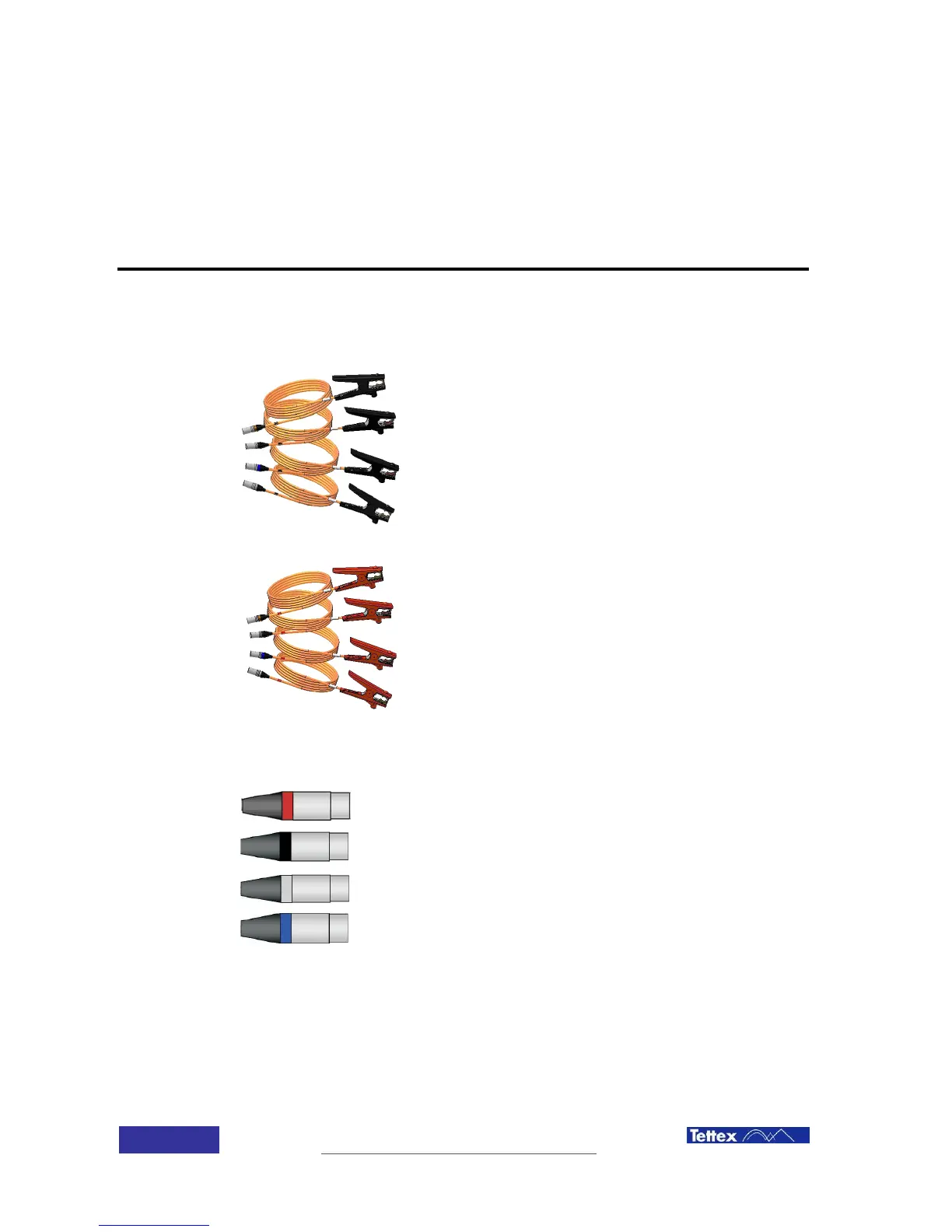

Cable set for the Low Voltage side X ( black clamps)”.
Cables are equipped with special Kelvin clamps.
Cable set for the High Voltage side H (red clamps)”.
Cables are equipped with special Kelvin clamps.
Connecting Cables end colors code:
Connector phase U/R (brown)
Connector phase V/S (black)
Connector phase W/T (grey)
Neutral N (blue)
Adaptors:
