Tettex 2293 - Connection in Automated Mode to a 1 Phase Transformer

36
Connection and Setup
5.2.4 Connection in Automated mode to a 1 phase transformer

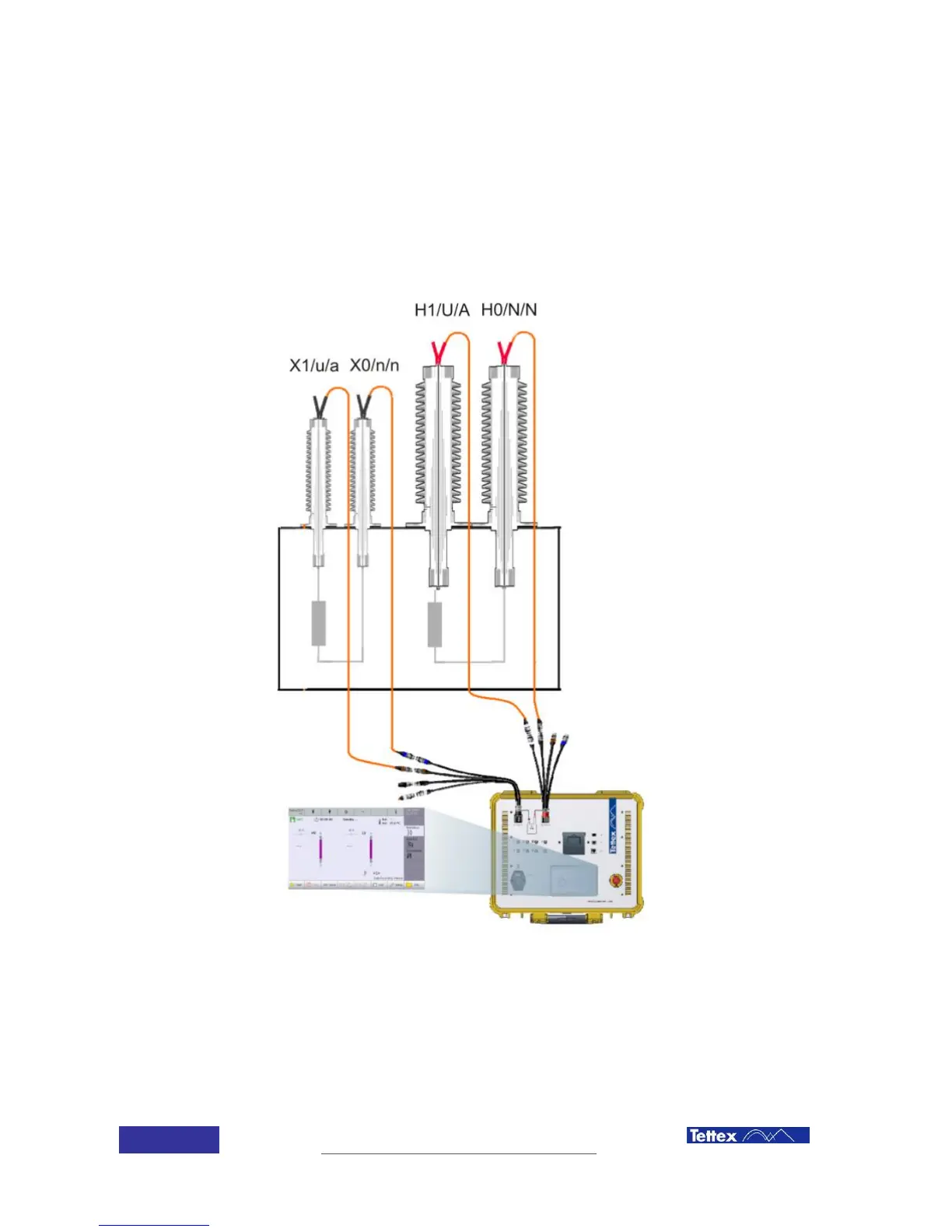

For a normal transformer, connection is done following the labels in the cable; means connecting
transformer phases with corresponding labeled cables as shown in the bellow diagram.
