5.2.5 Connection in Classic mode

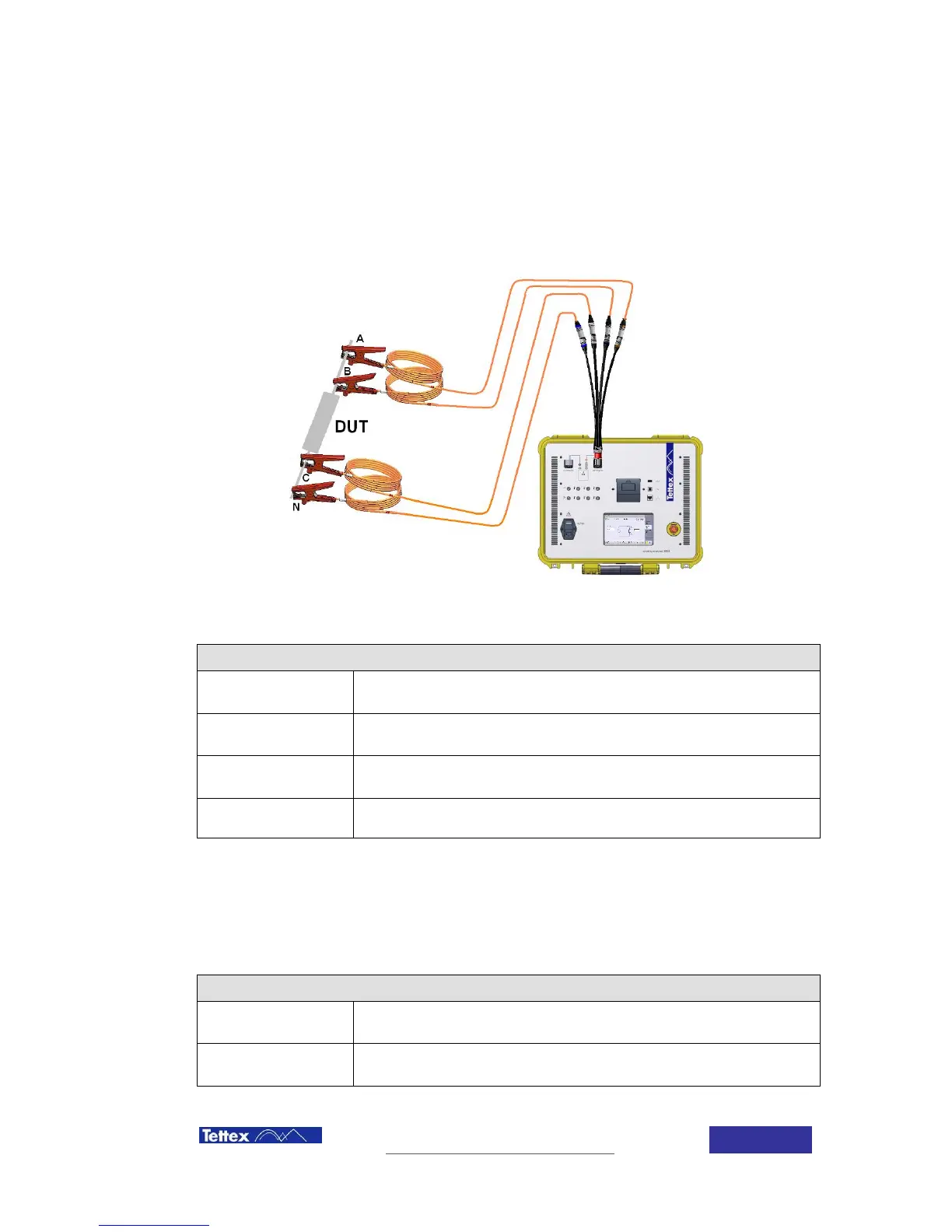

To connect the device to a test object different from a transformer, connections must be done as
following.
1 Resistance
Terminal A

positive of the high current power supply
Terminal N

negative of the high current power supply
Terminal B

positive of the voltage measurement
Terminal C

negative of the voltage measurement
Instrument is equipped with two voltage measuring channels, therefore two resistances can be
measured simultaneously, connect the equipment according bellow table to measure both
resistances.
2 Resistances
Terminal A

positive of the high current power supply
Terminal N

negative of the high current power supply
