Tettex 2293 - Selection of DUT Type

42
User Interface
Phase displacement HV / TV

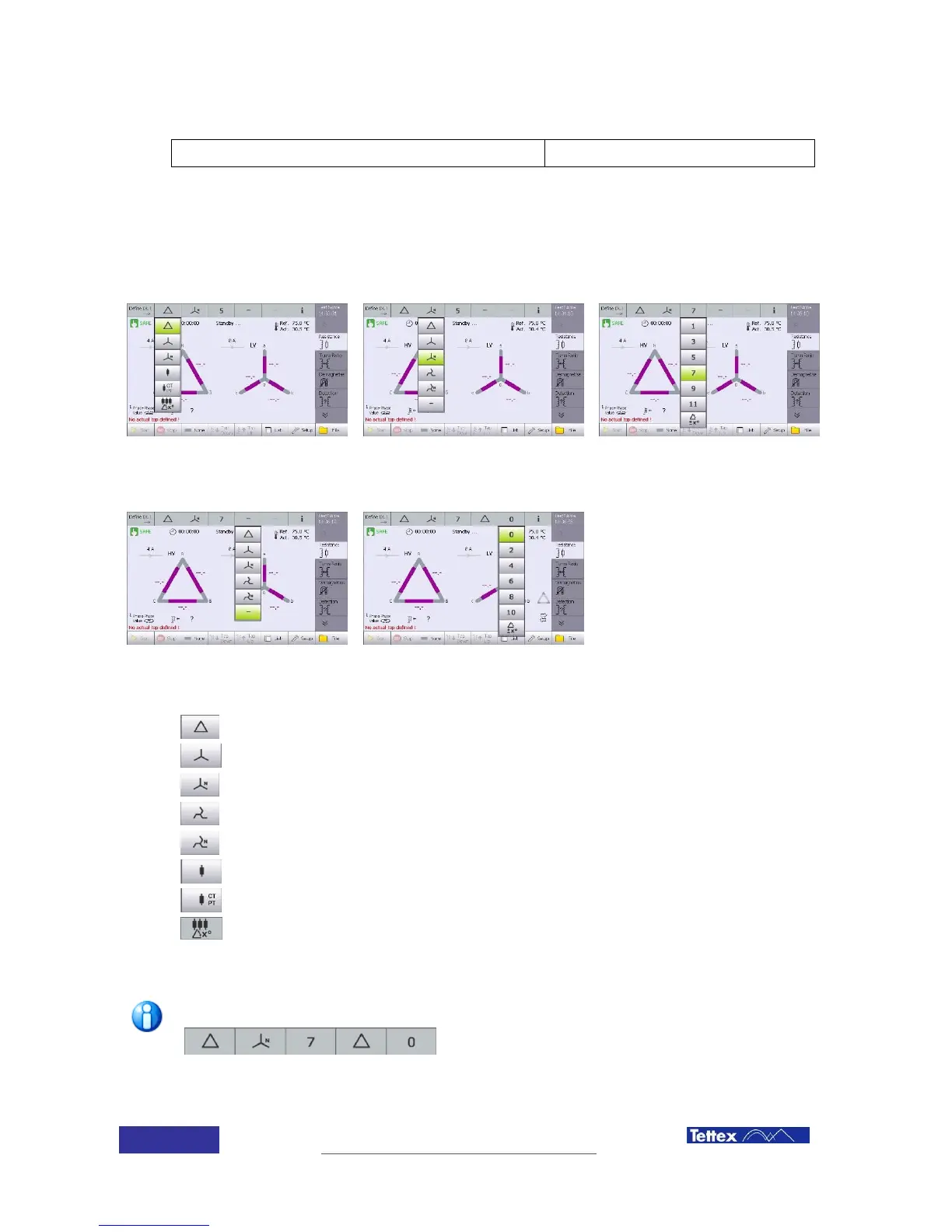

6.3.1 Selection of DUT Type
Transformer main parameters selection is done in the upper part of the main screen. The HV
winding configuration, the LV winding configuration and the phase shift can easily be selected in
the pop up menu.
Selection of the HV winding
Selection of the LV winding
Selection of the phase shift
The tertiary winding, when existing, can also be configured by touching the corresponding icon
Selection of the Tertiary winding
(if available)
Selection of the tertiary winding
phase shift
Winding settings
A delta winding of a 3 phase transformer
A wye winding of a 3 phase transformer
A wye winding with neutral of a 3 phase transformer
A zig-zag winding of a 3 phase transformer
A zig-zag winding with neutral of a 3 phase transformer
A one-phase winding
A current transformer or potential transformer
An unconventional transformer
Examples
Example for a setup of a 3 winding 3 phase transformer Dyn7d0
