Tettex 2293 - Performing a Test Using Automated Mode; Measurement Steps

Resistance Measurement
57
* SC = Shortcut; direct action or access to setup over touching

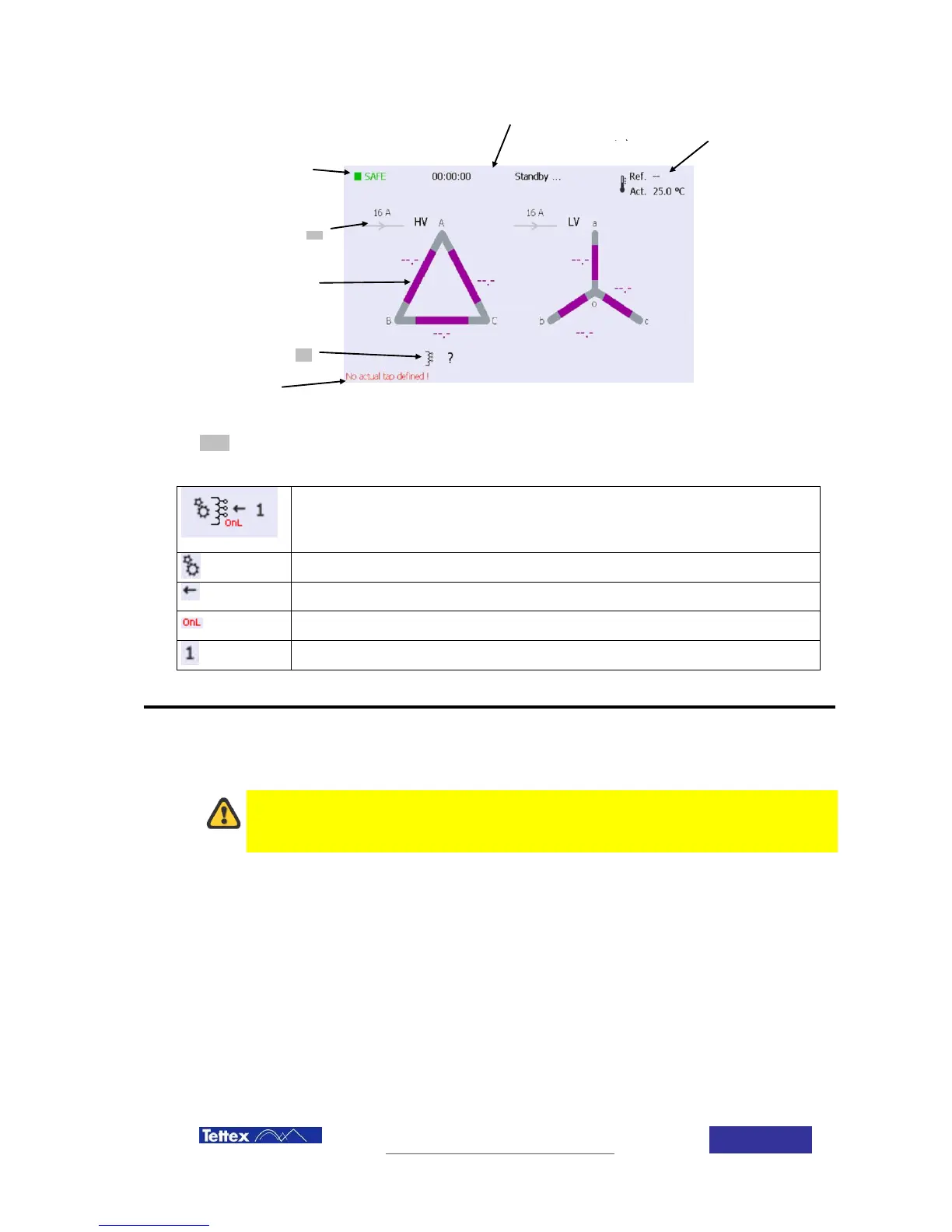

Tap Changer Visualization:
Tap changer graphical representation
“Remote Controlled” is active in dialog “Setup”
this winding is selected at “Tap Control” / “Winding” in dialog “Setup”
tap-changer is defined as “On Load” in “DUT” dialog
Actual tap position
7.3 Performing a test using Automated mode
Before operating the instrument, make sure that the safety rules have been fully
read and understood. It is the responsibility of the end user to ensure that the
system is operated in a safe manner.
7.3.1 Measurement steps
Performing a resistance measurement on a power transformer consist of following steps
Safe
State
indicator
Status bar (actual
procedure step,
timer, etc)
Temp
eratu
re
Statu
s with
SC
Selected current
with SC
Active
windings to
measure
with SC
Tap changer setting
with SC
