The lockable mains plug for
connecting the mains cable is
located in the front panel (6).
According to the ordering data the
proper mains cable is delivered with
the instrument.

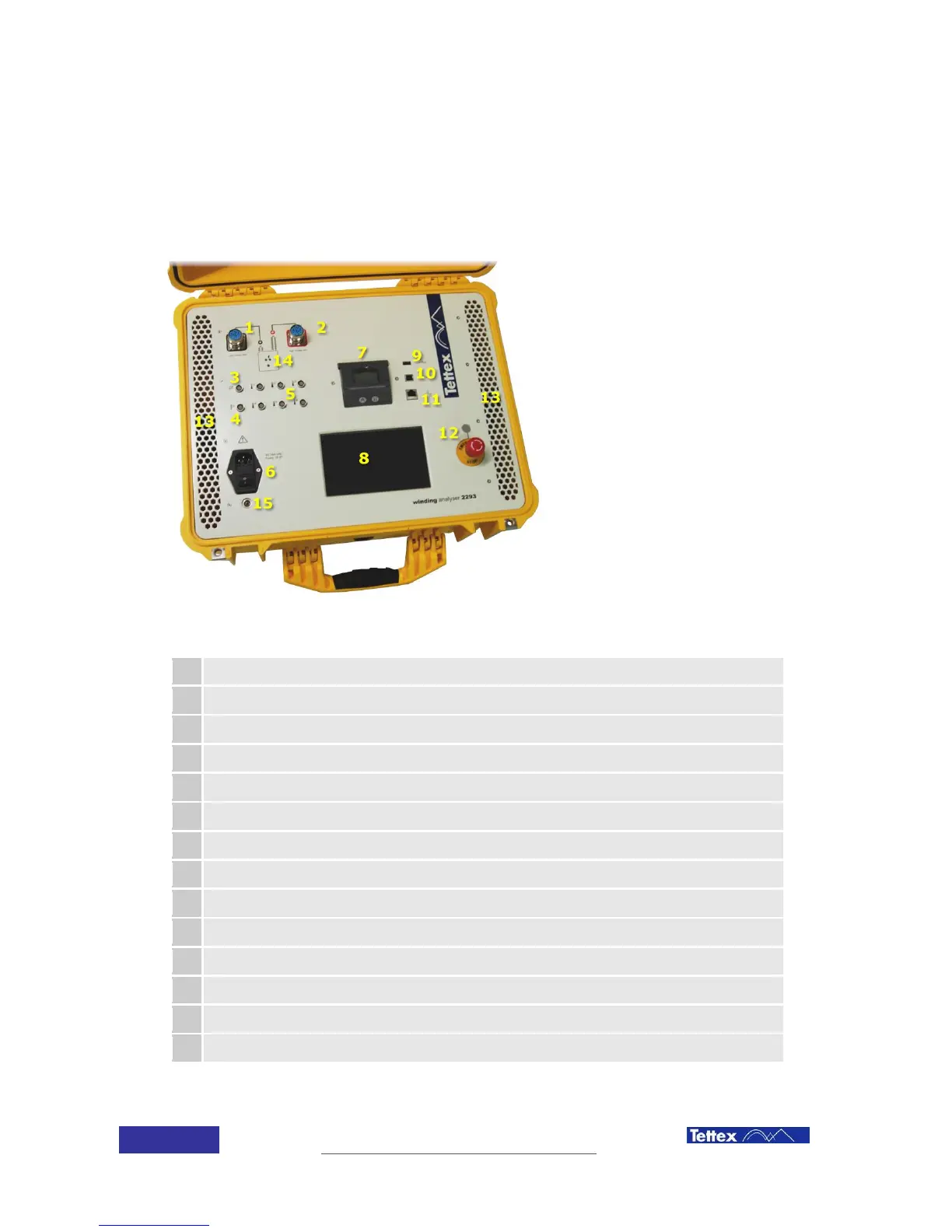

Connector for LV cable “X” connection, Black (to Low voltage side of DUT)
Connector for HV cable “H” connection, Red (to High voltage side of DUT)
I/O connector (for cascading of additional temperature interfaces)
Tap Changer connector (for optional Tap Changer Remote interface TAP/2293 )
6 Temperature probes connectors
Power inlet with integrated mains switch and fuse holder
Emergency Stop button with (optional) interlock connector
Cooling air outlet / inlet
Caution indication. The two red LEDs on top are lit to indicate a current is flowing.
