Tettex 2293 - Set up DUT Data; Measurement Settings

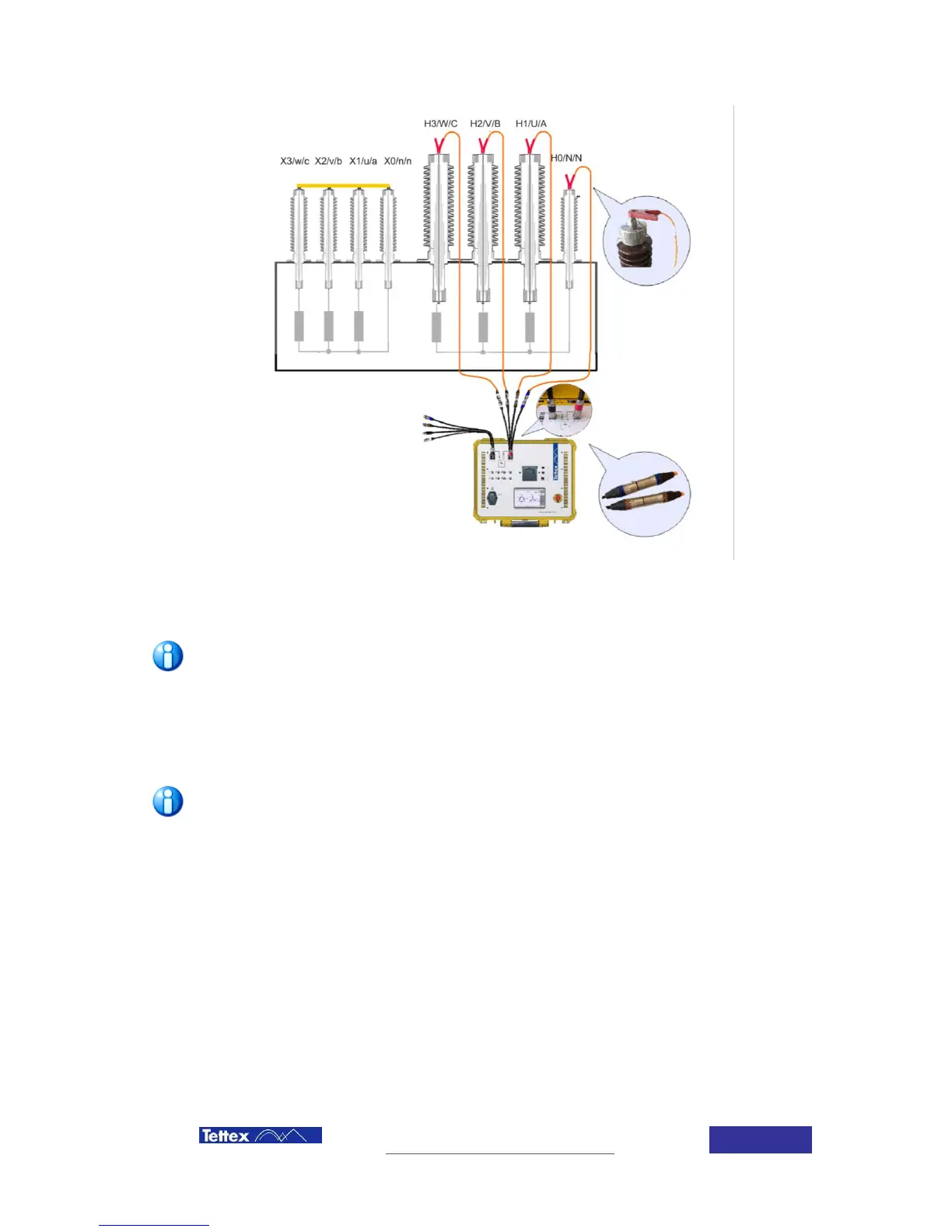

Short circuit impedance
147
14.4.3 Set up DUT data
To set up the steps with DUT related data: see related chapters in the “User Interface” part.
The Magnetic Balance function is mostly applicable to start with Neutral Windings. On
these configurations unbalance results can be a result of a transformer fault or residual
magnetism,
14.4.4 Measurement Settings
To access the measuring parameters, click setup button in the bottom of the screen, and then
select “Measurement” folder.
As the transformer impedance is fixed, instrument can only supply a defined current or
voltage between the maximum voltages and currents of the devices.
The instrument will supply the target voltage or current first reached. In order to guarantee
that a test is done at a particular voltage or current, fix the other parameter to the
maximum possible.
