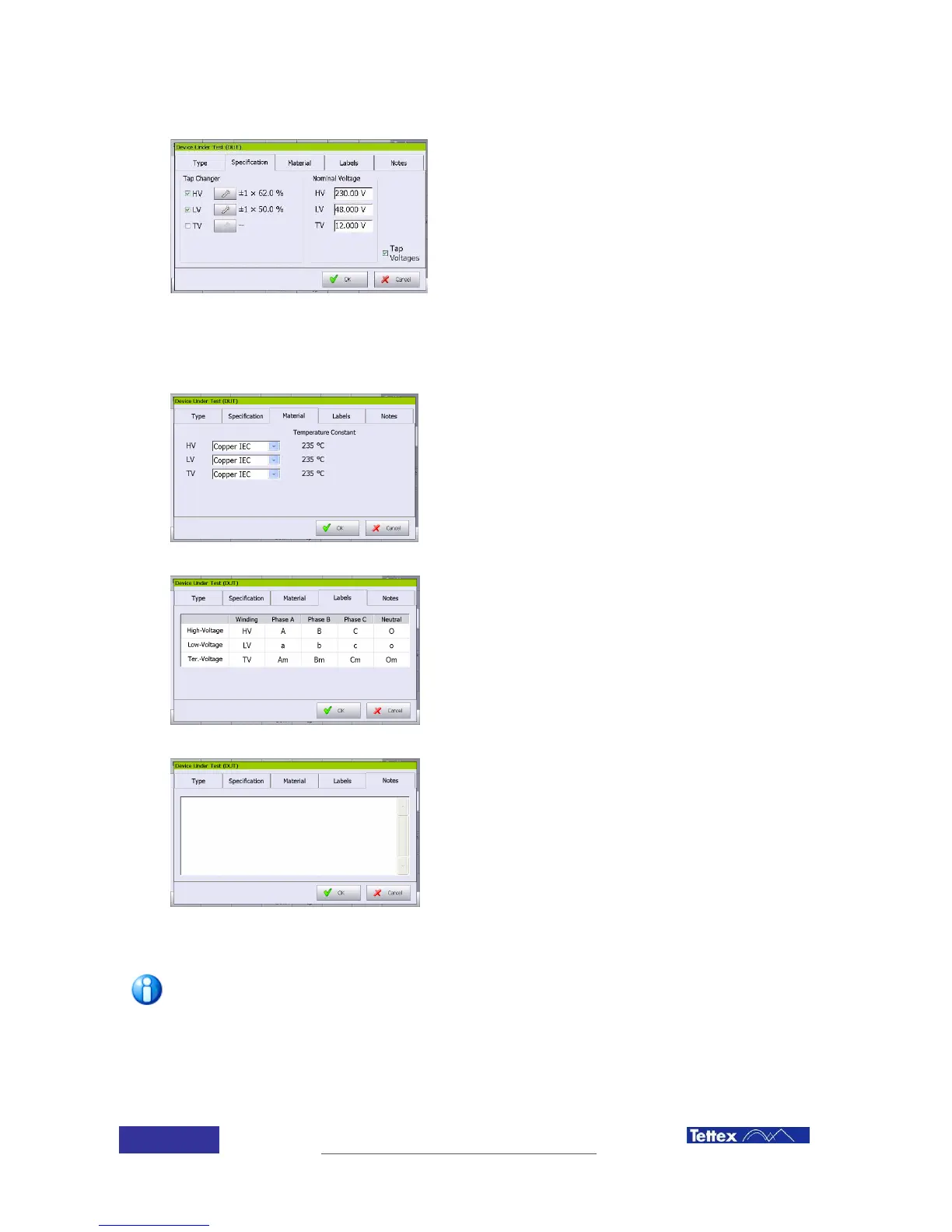

Specification
Here the definition about Nominal Voltages of
windings have to be entered (used for desired value
of ratios and as limits)
If a winding is equipped with a Tap Changer (on load
or off load) it has to be configured by clicking the
selection box in the left of the corresponding winding
(HV for High voltage, LV for low voltage and TV for
tertiary winding).
See next chapter for detailed description.
Materials
The material of the different windings has to be
defined (used for temperature correction)
Following possibilities with its temperature constants
are available; Copper IEC, Copper ANSI and
Aluminium. Different materials can be selected for
each winding.
Labels
Here the user can define the Terminals labelling
according to his country or standards.
These Labels then will be used in all displaying and
recording of measuring data.
Notes
Long text field where any information regarding the
DUT, test conditions, remarks, etc. can be added.
Above information is included in the measurement results file as well as in the printed report.
