*Order Part Number 5060386680215 from Emizon

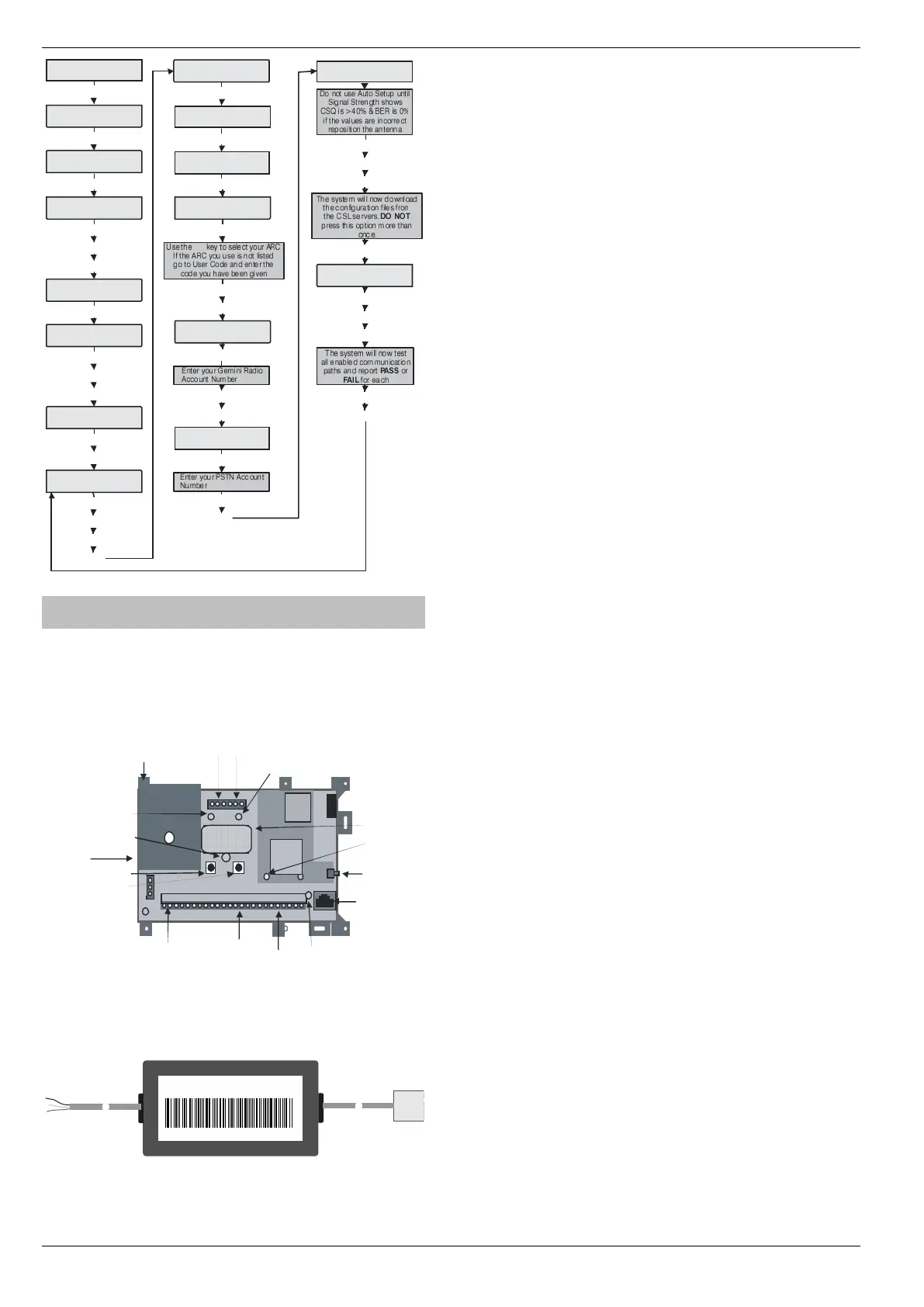

This lead converts the TTL port to standard RS232.
Panel Com Port Setup
The Com Port speed needs to be configured to19200 baud if using
Com 2 ( Com 1 is set to 19200 baud at default and cannot be
changed ).
See page 101 (Com Port Setup).
Panel ARC Setup
To set up the ARC account only a few setting need to be made.
see page 91 (Program Digi).
• Set the reporting Protocol to SIA or Contact ID.
• Set an account number.
• Select “Connect via IP” in the protocol options.
see page 95 (Digi Options).
• Select “Enable communicator”
Panel IP Setup
The control panel communicates to the ARC via the EMIZON TCD.
The TCD’s primary signalling path is via an IP network; therefore the
control panel need’s an IP address so that it can connect to a local
network.
Ensure that the customer has filled in the “Customer IT Survey
Form” provided by EMIZON.
This will give you the information you need to set up the IP data on
the control.
see page 100 (Setup IP Module)
Connect the Ethernet cable between the Ethernet port on the TCD
unit and the Network router.
Commissioning
Now that the programming for the EMIZON21 is complete you need
to power up the TCD and wait 15 seconds (approx) and check the
following –
• Flickering light on the Ethernet path LED.
• Flashing green light on the GPRS path LED.
These indicate that the signalling paths are available and that the
TCD is ready to be commissioned.
Now you need to call The ARC (084404129009) with the TCD serial
number that is printed on the label located on the front cover, the
ARC will then associate the TCD to this specific installation on their
system and activate it.
If this is the first time this TCD is being installed, you will need to
wait for the “tl” indication to appear on the display and then press
and hold the set button for 4 seconds.
The TCD will contact EMIZON service platform and the display will
alternate between “tl” and 01, then “CA” (completely Active).
Alternate flashing decimal points indicate normal operation following
a successful commission.
The GPRS and Ethernet LED’s will turn green to indicate that they
are communicating with the service platform.
Wintex UDL via EMIZON 21 TCD
To utilise the UDL option you will need to sign up with the Emizon
UDL service.
After signing up you will be sent your security certificate along with
UDL server login details.
You will also be given the server IP and port address.
You will need to enter these details in the Network details section of
Panel details in Wintex.
You must also install the Emizon UDL software on to the PC you
intend to use for UDL.
