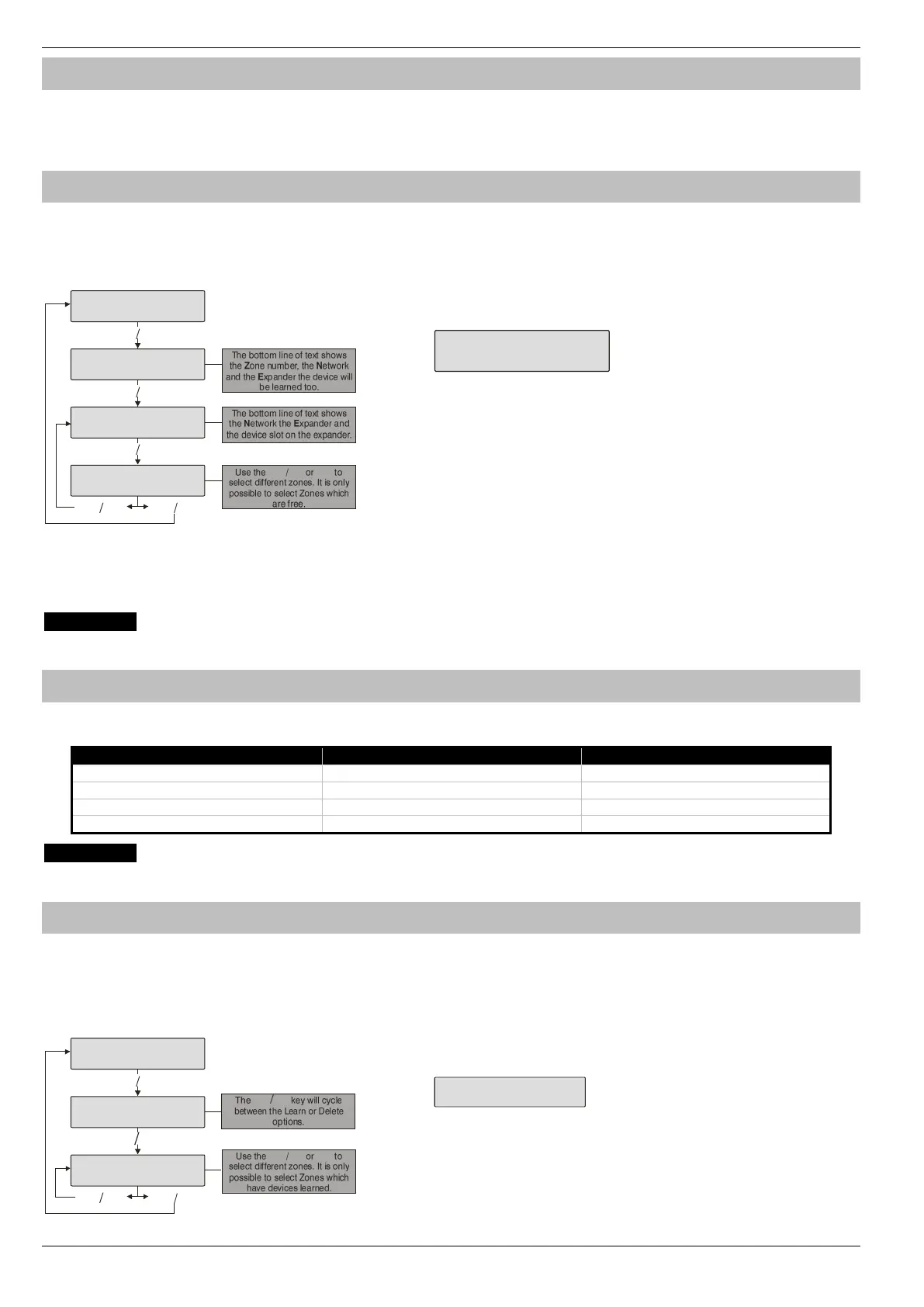

Zone Setup Premier Elite Series Installation Manual
56 INS176-15
Ricochet Enabled Devices V2.10 & Later
The Premier Elite Series™ of control panels have been upgraded with a new learn/delete function for devices. The new Ricochet Learn/delete
process is Easier & Smarter and is in addition to the existing methods provided; devices can be learned right from first power up of the control
panel, or accessed later on from a dedicated Ricochet Learn menu.
The new Menu can also be accessed from any top level menu by pressing the
key.
Learning Devices
Learn Devices from first power up
Follow the instructions given on page 48 or later for the first power sequence.
Providing the system has a Ricochet enabled expander installed, the following will appear. The flow diagram shows the procedure to learn
devices:-
E o elec:
ean icoche
y y
ean eice?
Zone ??? ?E??
oe p eice
?E??? s
ean eice o
Zone ??? ?E??
y y
y y
y y
n nU
N N
When all device slots have been used the following screen will be
shown
Pressing the
N
key will return you to the Ricochet learn menu;
pressing the
R
key will enter the Delete devices menu.
Commissioning
Once all devices are learnt they should be installed in their
locations starting closest to the expander and working to furthest
away. To start commission mode the receiver should be in
Tamper, or in the case of the -W panels place the jumper on “Fit
for Commission” position.
Wait for at least 15 minutes and the test all devices.
Access the Learn Menu using the Omit “Hot” key
From any top level engineering menu pressing the
key will take you to the Ricochet learn menu above.
IMPORTANT
In all cases when entering the Learn menu the next available free Zone will be chosen to learn a device too. It will not be possible to learn a device
to a Zone that already has a device learned too it. The number of expander’s on the system will dictate which next “free” zone is chosen.
Auto Zone Type & Area
When learning devices, if no editing has taken place of the control panel onboard hardwired zones, these will be switched to Not Used after the
first Ricochet device is learned to the system; the following defaults will be used for Ricochet devices learned to the system.
IMPORTANT
If any editing of any of the on board control panel zones is carried out BEFORE any Ricochet devices are learned too the system, the control
panel zones will remain at factory defaults.
Deleting Devices
Delete Devices
To delete devices from the system, access the Ricochet Learn menu. Any of the methods previously detailed may be used.
The
R
key is used to access the Delete option.
Follow the flow diagram below to delete devices from the system.
E o elec:
ean icoche
y y
ean eice
Zone ??? ?E?
elee eice?
Zone ??? ?E?
n nU
R R
R R
N Ny y
If all devices are deleted from the system the following will be
shown
Pressing the
N
key will return you to the Ricochet learn menu;
pressing the
R
key will enter the Learn devices menu
