Texecom Premier Elite Series Installation Manual

Premier Elite Series Installation Manual System Overview
INS176-15 5
Premier Elite 168
• 8 fully programmable Double Pole or End Of Line zones
• Expandable to 168 zones via keypads and zone expanders
• 2 x 4-wire data network (standard 7/0.2 alarm cable)
• Up to 16 keypads and 16 zone expanders (8 per network)
• Up to 8 output modules (4 per network)
• 16 independent areas each with 3 part arms
• 16 area arm suites
• 200 programmable User codes
• 2000 Event Log (time & date stamped)
• 5 programmable panel outputs (4 x 1A & 3A relay)
• 2.5 Amp power supply
Premier Elite 640
• 0 fully programmable Double Pole or End Of Line zones
• Expandable to 640 zones via keypads and zone expanders
• 8 x 4-wire data network (standard 7/0.2 alarm cable)
• Up to 64 keypads and 64 zone expanders (8 per network)
• Up to 64 output modules (8 per network)
• 64 independent areas each with 3 part arms
• 64 area arm suites
• 500 programmable User codes
• 5000 Event Log (time & date stamped)
• 5 programmable panel outputs (4 x 1A & 3A relay)
• 2.5 Amp power supply
Premier Elite 12-W, 24, 24-W, 48, 48-W, 64-W
88, 168 & 640
• 32 Event Alarm Log
• 250 - 500 Event Mandatory Log
• 3 - 8 programmable digicom outputs (100mA each)
• 32 character zone text
• Facility for Plug-on Digimodem (Com300/2400/)
• Facility for Plug-on IP Module (ComIP/Chiron/WebWayOne/Emizon)
• Facility for a plug-on RedCARE/RM8 Relay Module (Not Premier
12-W, 24/ 24-W 48/64-W)
• PC-Com/printer port

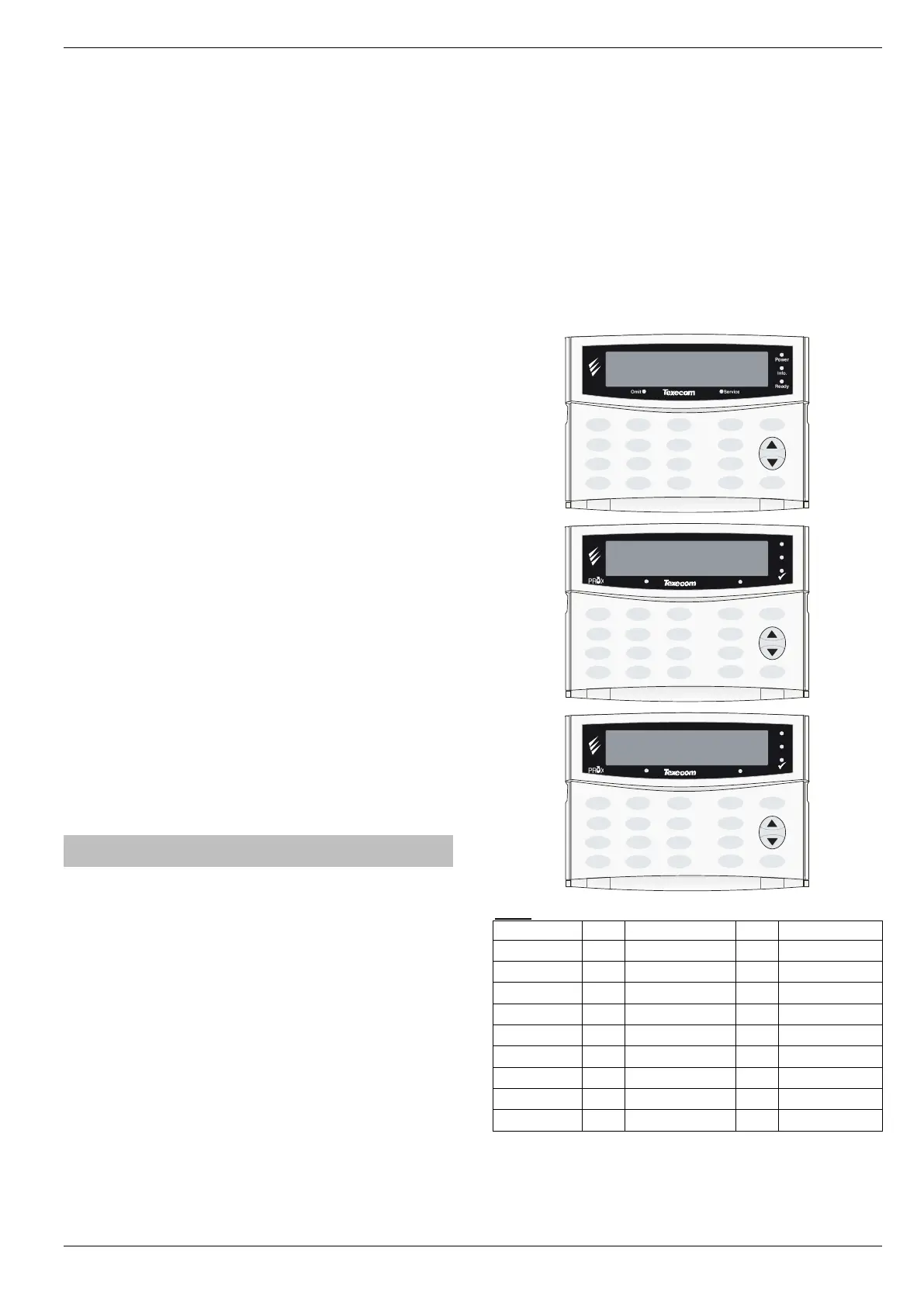

Remote Keypads
LCD
• 32 character text display
• 2 fully programmable DP or EOL zones
• 1 fully programmable output (100mA -ve applied)
• Fully adjustable back-lighting, normally bright, dim or off, changing to
bright during entry or following a key press
• Built in piezo sounder
• Programmable ‘Info.’ LED
LCDL
ALL the features of the LCD plus:
• Larger 32 character text display
• Speaker output
LCDP
• LCD with a built in Proximity Tag Reader
LCDLP
• LCDL with a built in Proximity Tag Reader
LCDLP-W
• Ricochet
®
Enabled LCDL with a built in Proximity Tag Reader
FMK/SMK
• LCDLP Metal Flush or Surface Mount
• Various finishes available
RKP8/16Plus
• LED Arming keypad
• 2 fully programmable EOL zones
• CANNOT be used for Programming
Icon Guide
1 2 3
4 5 6
7 8 9
0y
n
O
C
P
A
R
N
Keypad
English UK
b
e
F
1 2 3
4 5 6
7 8 9
0
y
n
B
C
s
A
R
N
P
Keypad
Iconic
b
e
F
1 2 3
4 5 6
7 8 9
0
y
n
B
C
s
A
R
N
P
Keypad
English
Keys
ICONS
UK English
English
B
=

=
B
C
=
C
=
C
s
=

=
s
A
=
A
=
A
R
=
R
=
R
N
=
N
=
N
y
=
y
=
y

=
y
=
y
n
=
n
=
n

Texecom Premier Elite Series Specifications

General

Event Log	1000 events
Expanders	Supports up to 8 expanders
Wired Zones	Up to 48 wired zones
Wireless Zones	Up to 64 wireless zones
Batteries	12V 7Ah
Tamper Protection	Yes
Outputs	Up to 8 outputs
Battery Backup	Yes
Compatibility	Compatible with Texecom accessories
Dimensions	Varies depending on model
Weight	Varies depending on model
