Premier Elite Series Installation Manual Installation
INS176-15 19

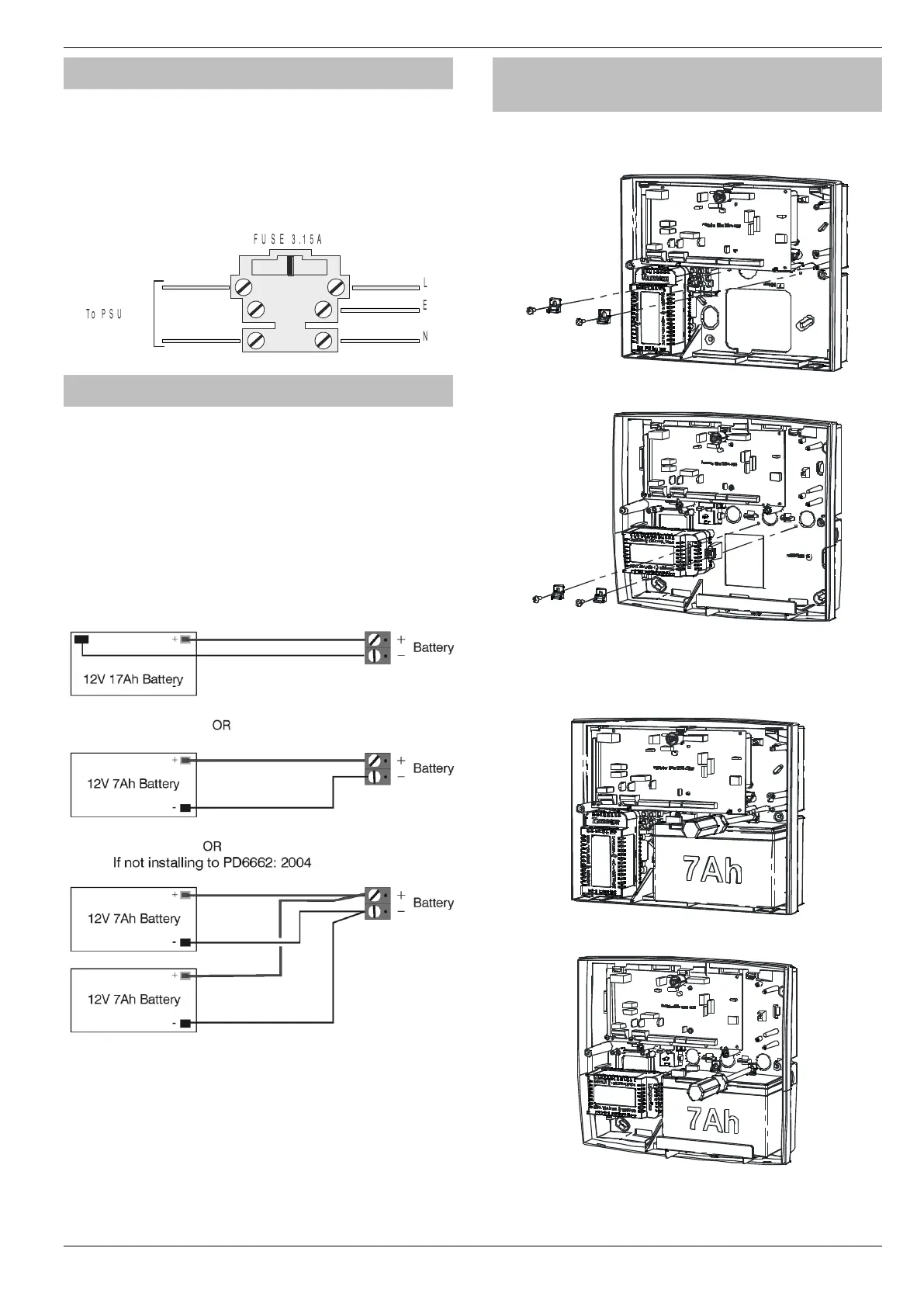

Connecting AC Mains
The AC Mains supply is connected to a 3 way ‘Euro Type’ fused
terminal block, which is fitted with a 3.15A medium/slow blow fuse.
All other wiring MUST be carried out before AC mains is
connected to the control panel.
After connecting the AC Mains, fit the mains cover, this can be
found in the spares bag.
Connecting Batteries
If installing to PD6662: 2010 then only One 12V 7Ah battery or 12V
17Ah battery can be fitted inside the control panel to provide
continued operation in the event of an AC mains failure, otherwise,
two 12V 7Ah batteries can be connected.
All other wiring MUST be carried out before the battery is
connected to the control panel.
Connect the red battery lead to the positive terminal of the battery
and then connect the black battery lead to the negative terminal.
The panel will only become ‘live’ when the AC Mains is
connected or the ‘Battery Kick-start’ button is pressed.
EN50131 Battery Installation (Polymer
Panels)
Step 2: Fit battery into place, position the clamps
against the top face of the battery and tighten
screws.
