Texecom Premier Elite Series Installation Manual

Premier Elite Series Installation Manual Ricochet Learn
INS176-15 143

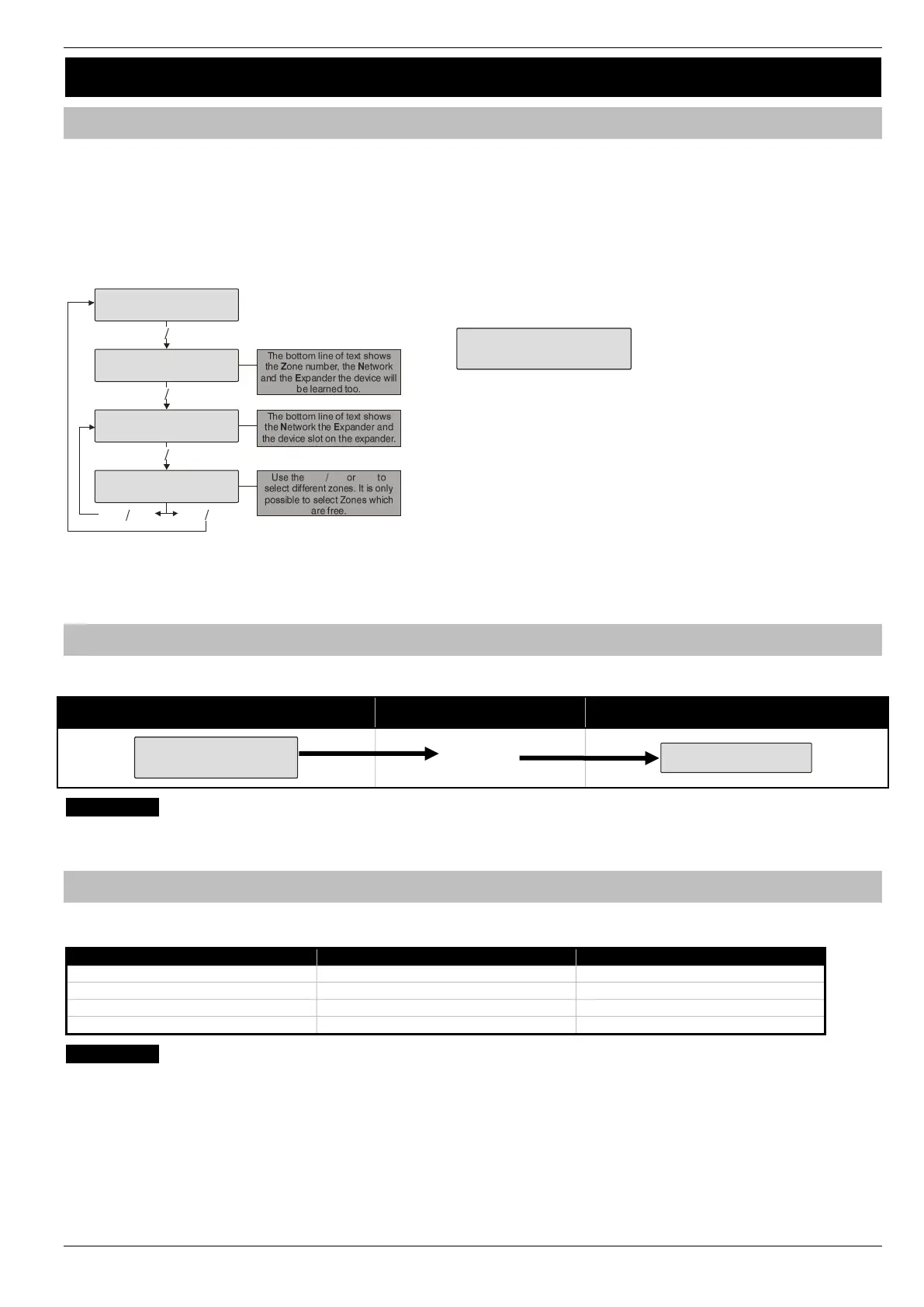

5.11 Ricochet Learn
Learning Devices
Learn Devices from first power up
Follow the instructions given on page 48 for first power up of the system.
When the "Confirm Devices" menu appears check and make sure all installed Keypads and Expanders are showing; press
y/y
and
y/y
again to confirm.
Providing the system has a Ricochet enabled expander installed, the following will appear. The flow diagram shows the procedure to learn
devices:-
E o elec:
ean icoche
y y
ean eice?
Zone ??? ?E??
oe p eice
?E???  s
ean eice o
Zone ??? ?E??
y y
y y
y y
n nU
N N
When all device slots have been used the following screen will be
shown
ll eices
ean
Pressing the
N/N
key will return you to the Ricochet
learn menu; pressing the
R/R
key will enter the Delete
devices menu.
Commissioning
Once all devices are learnt they should be installed in their locations starting closest to the expander and working to furthest away. To start
commission mode the receiver should be in Tamper, or in the case of the -W panels place the jumper on “Fit for Commission” position.
Wait for at least 15 minutes and the test all devices.
Access the Learn Menu using the Omit “Hot” key
From any top level engineering menu pressing the
B/
key will take you to the Ricochet learn menu above.
Menu
B/
Ricochet Learn Menu
E o elec:
????????????????
B/
E o elec:
ean icoche
IMPORTANT
In all cases when entering the Learn menu the next available free Zone will be chosen to learn a device too. It will not be possible to learn a device
to a Zone that already has a device learned too it. The number of expander’s on the system will dictate which next “free” zone is chosen to learn
too.
Auto Zone Type & Area
When learning devices, if no editing has taken place of the control panel onboard hardwired zones, these will be switched to Not Used after the
first Ricochet
®
device is learned to the system; the following defaults will be used for Ricochet
®
devices learned to the system.
Zone
Type
Area
001-008
Not Used
N/A
009
Entry/Exit 1
A
010
Guard Access
A
011 & above
Guard
A
IMPORTANT
If any editing of any of the on board control panel zones is carried out BEFORE any Ricochet devices are learned too the system, the control
panel zones will remain at factory defaults.

Texecom Premier Elite Series Specifications

General

Event Log	1000 events
Expanders	Supports up to 8 expanders
Wired Zones	Up to 48 wired zones
Wireless Zones	Up to 64 wireless zones
Batteries	12V 7Ah
Tamper Protection	Yes
Outputs	Up to 8 outputs
Battery Backup	Yes
Compatibility	Compatible with Texecom accessories
Dimensions	Varies depending on model
Weight	Varies depending on model
