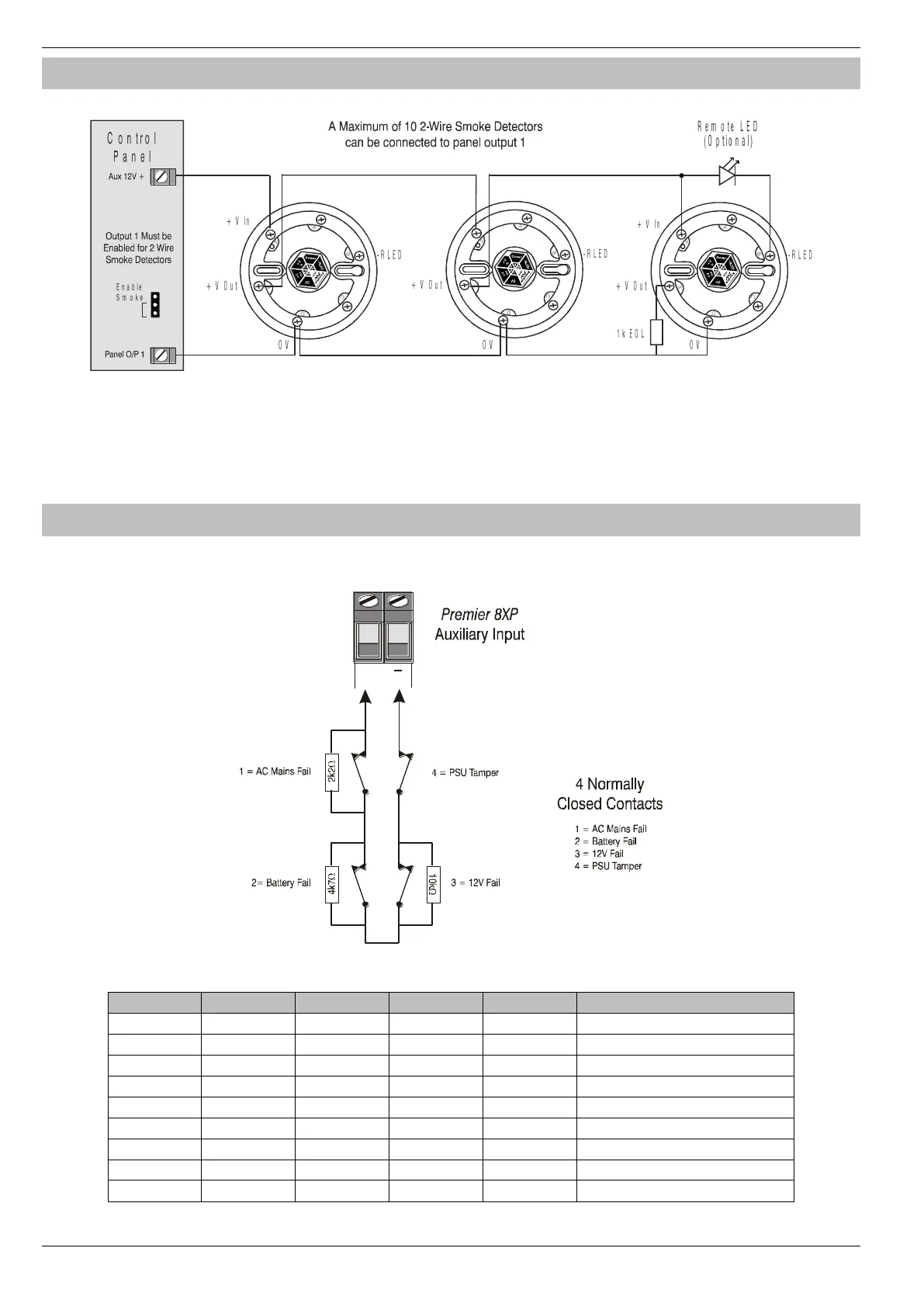

2-Wire Smoke Detector
Panel Output 1 can be used for connecting up to 10, 12V 2-Wire smoke detectors.
To enable 2-Wire smoke detection on panel output 1, a jumper link must be fitted across the bottom two pins of JP10. The Area Option ‘2-Wire
Smoke’ also needs to be enabled (see page 67).
 2-Wire smoke detectors can only be connected to panel output 1
Expander Auxiliary Input
This input can be used for monitoring a remote power supply that has a voltage free output for the following three conditions: AC Mains Fail, Battery Fail,
12V Fail and Tamper.
When the Auxiliary Input is programmed as ‘PSU Monitor’ the system will respond as follows:
Tamper
12V Fail
Battery Fail
A/C Fail
Resistance
Response
Closed
Closed
Closed
Closed
0R
No Faults
Closed
Closed
Closed
Open
2K2
AC Fail
Closed
Closed
Open
Closed
4K7
Battery Fail
Closed
Closed
Open
Open
6K9
Battery Fail + AC Fail
Closed
Open
Closed
Closed
10K
12V Fail
Closed
Open
Closed
Open
12K2
AC Fail + 12V Fail
Closed
Open
Open
Closed
14K7
Battery Fail + 12V Fail
Closed
Open
Open
Open
16K9
AC Fail + Battery Fail + 12V fail
Open
-
-
-
O/C
Lid Tamper
Aux
Input
