Any zones that are not being used must be linked out or
programmed as ‘Not Used’ (see page 54 for details).

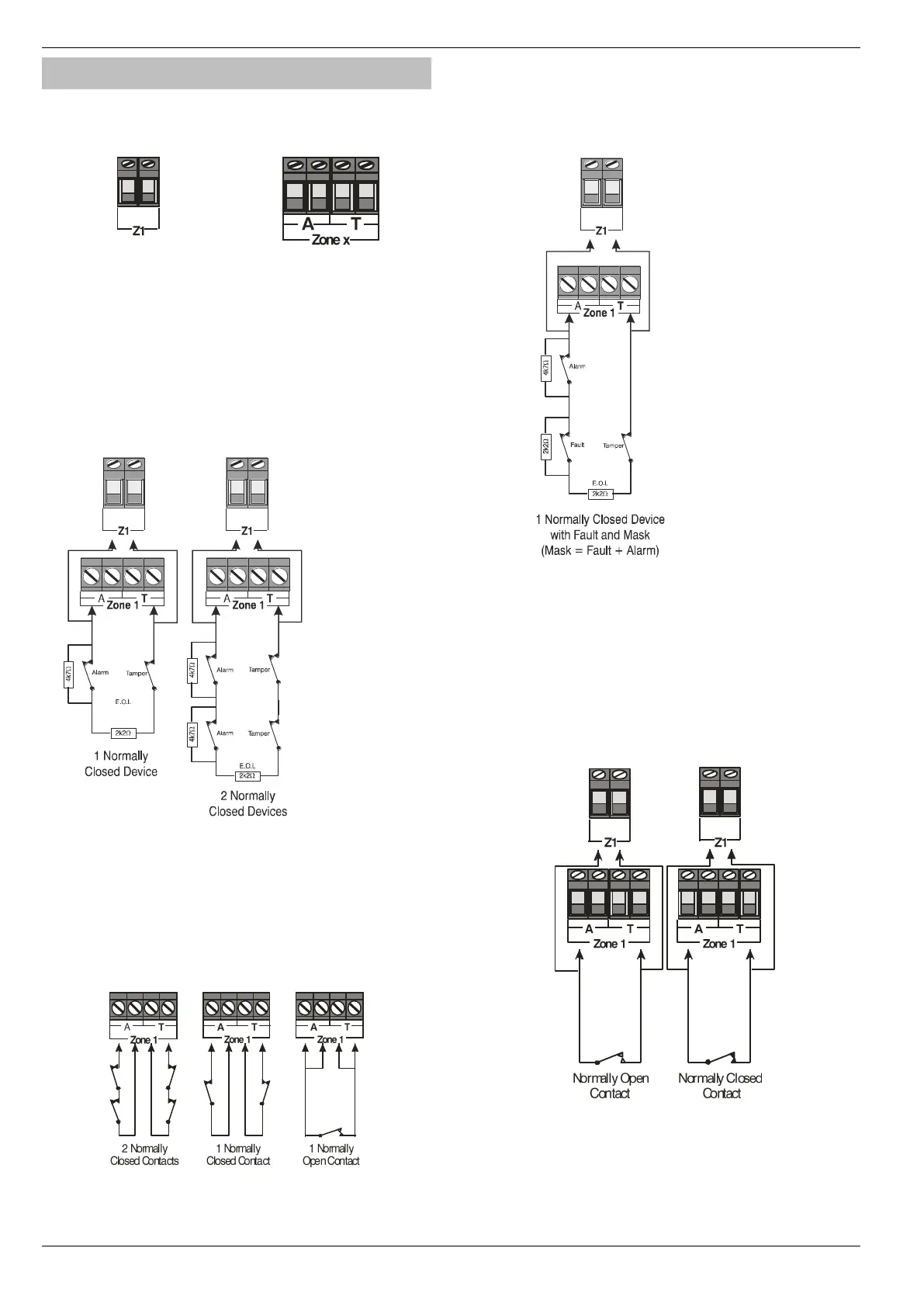

When using End Of Line wiring, only 1 device should normally be
connected to each zone.
A zone short can be programmed for ‘Active’ or ‘Tamper’ response
(see page 71 for details).
End Of Line (EOL) All panels
Use this wiring configuration when connecting normally closed
detection devices to the zone using 2-Wires. Zone wiring should be
programmed as Double Pole/EOL (see Zone Wiring page 60)
When using this configuration, no more than 3 detectors can be
connected to each zone.
Premier Elite 48/88/168 & 640 Double Pole
Use this wiring configuration when connecting normally closed or
normally open detection devices to the zone using 4-Wires. Zone
wiring should be programmed as Double Pole/EOL (see Zone Wiring
page 60)
When using this configuration, no more than 10 detectors can
be connected to each zone.
Triple End Of Line (TEOL)
Use this wiring configuration when connecting PIR devices with that
require Anti Mask and Fault detection. Several zone wiring
programming options are available for this, Triple EOL is illustrated
below. See Zone Wiring on page 60.
When using this configuration, only 1 detector can be connected
to each zone.
Alternative resistor values are available – see Zone Wiring on
page 60 for more details.
Normally Open Or Normally Closed Circuits
This wiring configuration is normally used for key switches with a N/O
or N/C contact. Zone wiring options are provided for each.
Testing Zones
To test zones prior to commissioning, use the View Zone
Status option in Engineers Utilities see page 132
