Premier Elite Series Installation Manual UDL & Digi Options
INS176-15 113
WebWayOne
WebWayOne integration with the control panels provides the
following features 7 functions:-
• Automatic Commissioning
• ATS Monitoring and Fault Reporting
• Alarm and Fault reporting
• Remote Support
• Upload/Download
• Remote Maintenance

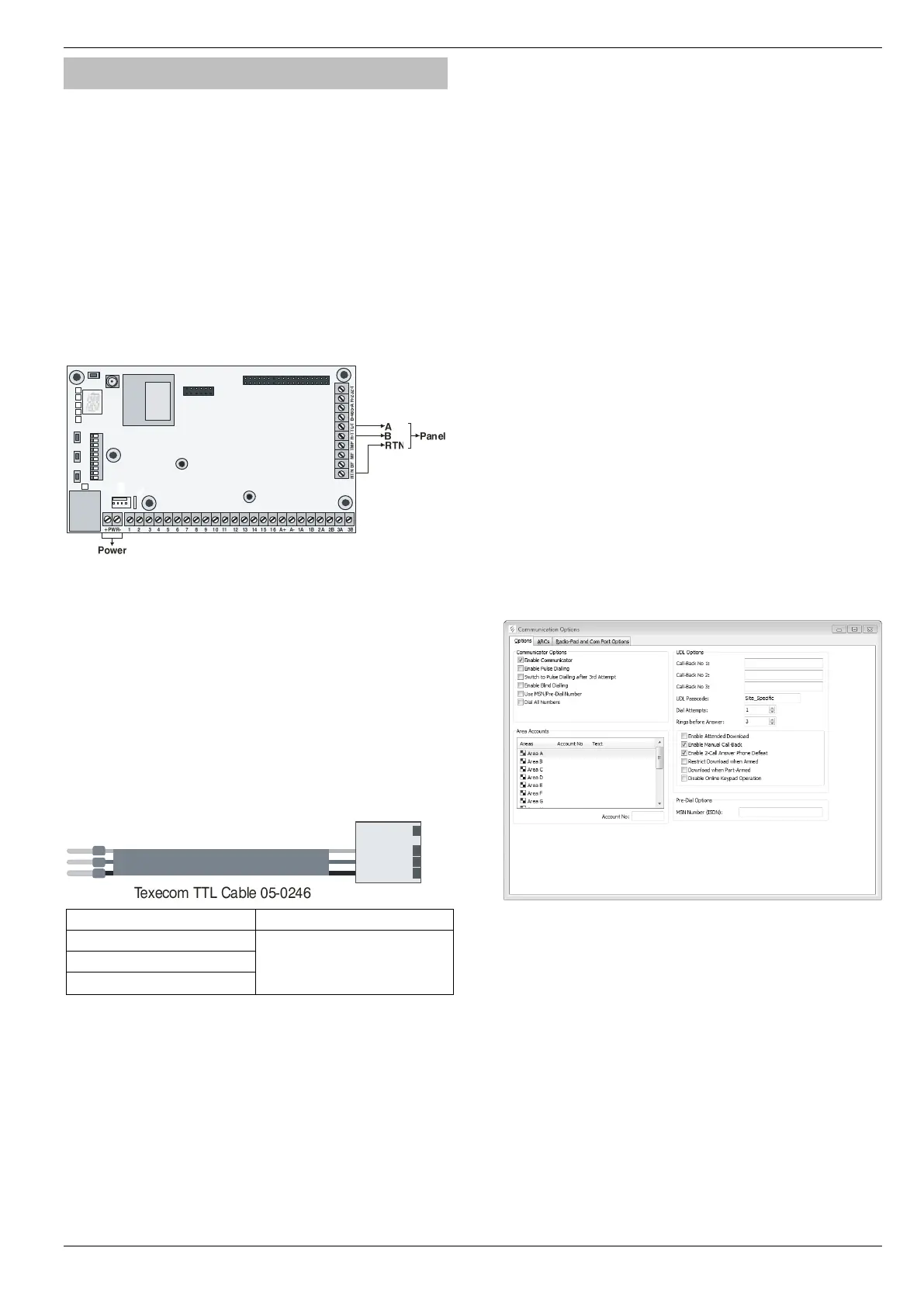

The connection is via a TTL link to a Com Port on the control panel.
You will need the following to connect and setup the module:-
• WebWayOne cable 05-0246
• Wintex software
The WebWay solution is quick and easy to install and commission
with your chosen ARC.
1 2 3 4 5 6 7 8 9 10
SIM
C
B
A
ON
The Auto Take On process completes the installation. The WebWay
servers automatically programme the module to work seamlessly
with the panel to enable SIA alarms, Upload Download and secure
remote access using the Texecom Wintex software.
Automatic SIA 3 with text enriched messages
All alarms generated by the Alarm System are automatically sent to
the AMS using SIA. SIA messages provide a full audit trail of an
event - which detector, location, time and date, and a permanent
record of every alarm. Messages for set and unset include who,
where, time, and date, all recorded.
Serial Panel Connection
Connect the 05-0246 connector cable to the Texecom onto Com
Port 1. Com port 2 usually has a local PC or other peripheral
equipment connected.
Connect the WebWay PWR + and - to any relevant Power
(+12V/+24V) and Ground (0V) terminals.
The Texecom panel configuration is uploaded via the Wintex
software and downloaded to the panel on com port 2 from a local
PC. The following requires configuring in the panel.
Programming the Control Panel
Digi Options
• Enable communicator must be ticked
• UDL passcode (set in the panel) must match.
• Dial attempts 1, ring before answer 3
See page 95
In ARC’s
1. Account number (site ID)
2. SIA Level 2/3
3. Connect Via IP - ticked
4. Send SIA text – ticked
See page 91
In Radio-Pad and Com Port options
1. Com Port 1 – WebWayOne module
2. Local IP address 127.0.0.1
3. Local IP port 50561
4. Gateway 127.0.0.1
5. Subnet Mask 255.255.255.0
6. Name/SMG port 50561
See page 100
Wintex Programming
All other settings are done by the Wintex Comms menu This can be
configured on a local PC plugged on to Com Port 2 with the Module
running on Com Port 1 or vice versa.
Digi Options
Enter the options shown including the callback number.
To Next Page
