FUEL SYSTEM

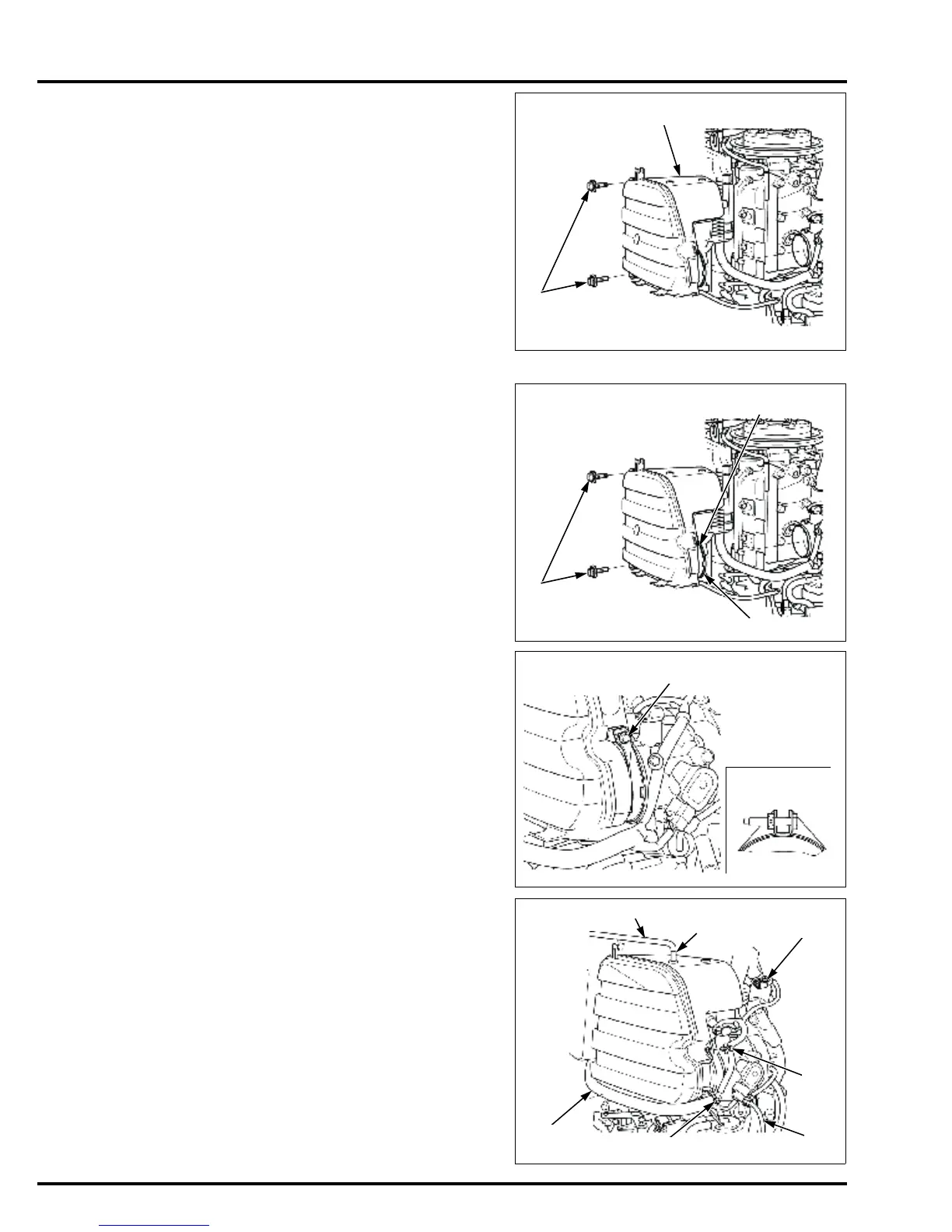

Remove the two bolt/washers [1] and remove the
silencer case [2].
INSTALLATION
Set the air flow band [1] on the silencer grommet [2],
and connect the silencer grommet into the throttle body
until it stops. Tighten the two bolt/washers [3] securely.
Tighten the air flow band to the dimension shown or
tighten it to the specified torque.
Set the main wire harness [1] on the silencer case, and
fasten the wire harness band [2].
Connect breather tube C [3] to the silencer case
securely until the painted part of the breather tube [4] is
hidden in the silencer case.
Connect the vinyl tube [5] to the under cover front
bracket, and set the fuel tube clamp D.
Connect the IAT sensor 2P connector [6], and set the
harness band clip [7] on the silencer case.
Install the following:
– Alternator cover (page 6-7)
– Engine cover
TORQUE: 2.2 N·m (0.22 kgf·m, 1.6 lbf·ft)
[1]
6 - 8 mm
(0.24 - 0.31 in)
