OTHER ELECTRICAL
STARTER CABLE/FUSE CABLE
REMOVAL/INSTALLATION

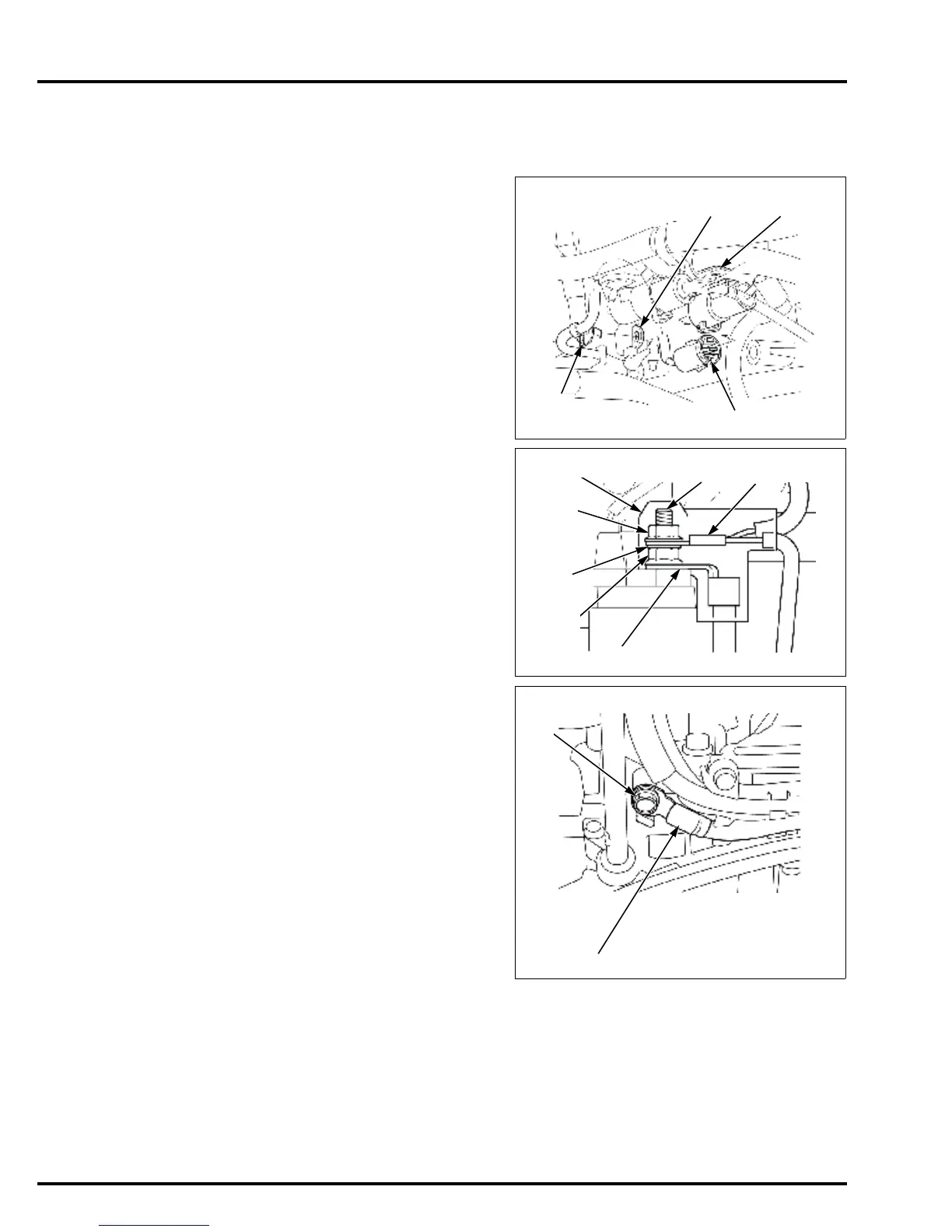

REMOVAL
Remove the following:
– Battery (+) cable and (-) cable
– Engine cover
– R./L. engine under cover (page 6-5)
– Under cover front bracket (page 6-12)
– Fuse box bracket (page 10-5)
Remove the harness band clip [1] from the neutral
switch bracket [2].
Release the fuse cable 1P connector [3] from the relay
bracket [4].
Disconnect the fuse cable 1P connector.
Move the terminal cover [1] aside, and remove the nut
[2].
Disconnect the fuse cable [3] from the B terminal [4] of
the starter motor.
Remove the washer [5] and nut [6], and disconnect the
starter cable (+) [7] from the B terminal of the starter
motor.
Remove the bolt [1] and starter cable (-) [2] from the
cylinder block.
[3]
[1]
[2]
[4]
[1]
[2]
[4]
[3]
[5]
[6]
[7]
[2]
[1]
