TOHATSU BFT75A - Remote Control Cable and Grommet Removal;Installation

19-3
dummyheaddummyhead
CONTROLS
REMOTE CONTROL CABLE/GROMMET
REMOVAL/INSTALLATION

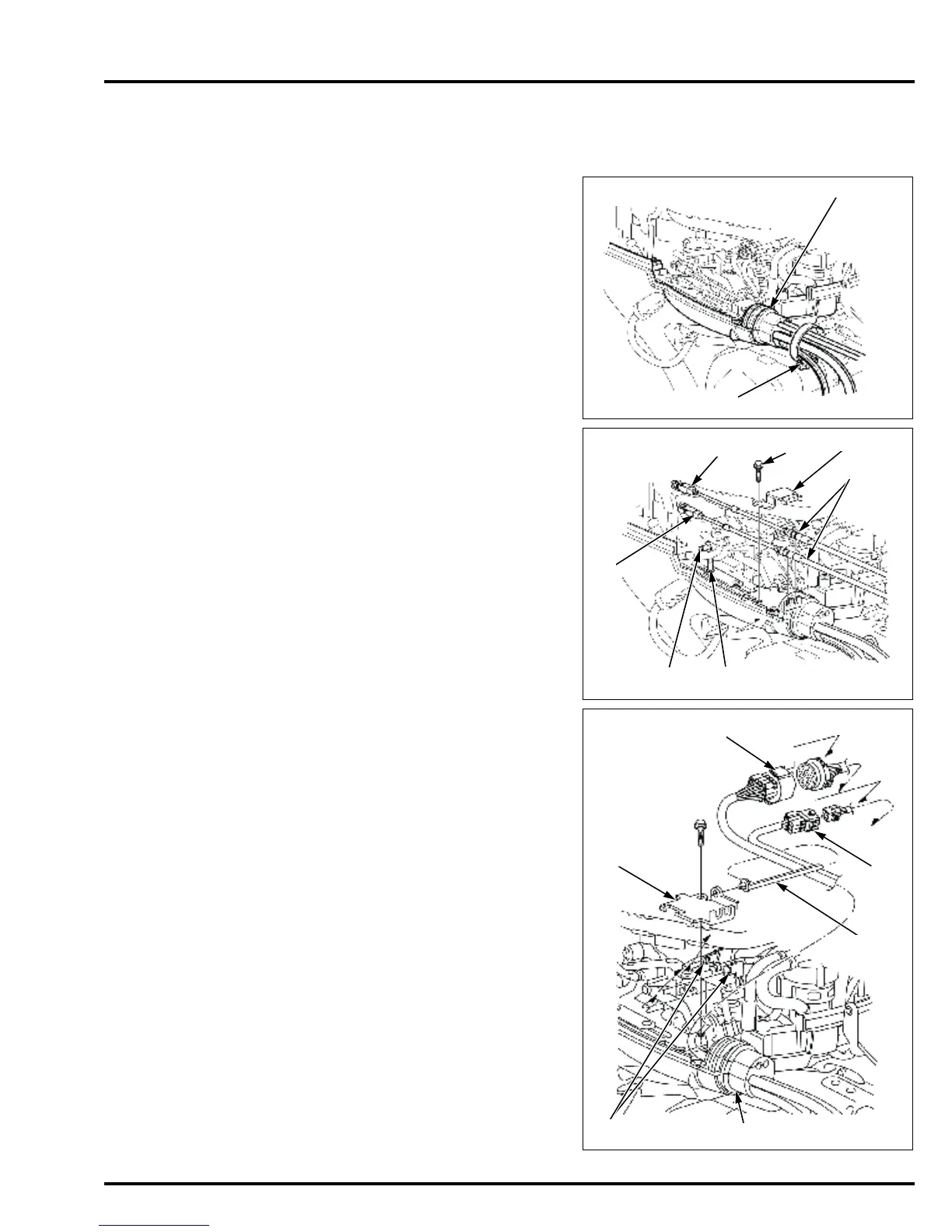

REMOVAL
Remove the following part,
– Engine cover
– Front separate cover (page 6-4)
Loosen the under case grommet band [1] and remove it
from the remote control cable grommet [2].
Remove the remote control cable (shift side) shift pivot
[1] from the shift link pin [2].
Remove the remote control (throttle side) shift pivot [3]
from the throttle arm link pin [4].
Remove the bolt [5] and remove the remote control
cable cover [6].
Remove the remote control cables (shift side and
throttle side) [7] from the remote control cable plate and
the remote control cable grommet.
Open the harness band clip [1] positioned on the
remote control cable plate.
Remove the remote control cable plate [2].
Release the 14P connector [3] and 6P connector [4]
from the relay bracket [5] and disconnect each
connector.
Remove the indicator light wire, remote control cable,
starter cable, and fuel tube A from the remote control
cable grommet [6]. (Remote control type only)
Remove the handle cable, starter cable, and fuel tube A
from the remote control cable grommet. (Tiller handle
type only)
[2]
[1]
[7]
[3]
[2]
[5]
[4]
[6]
[1]
[3]
[4]
[5]
[2]
[1]
[6]
