16-9
dummyheaddummyhead
GEAR CASE
EXTENSION CASE/LOWER RUBBER
REMOVAL/INSTALLATION
REMOVAL/INSTALLATION

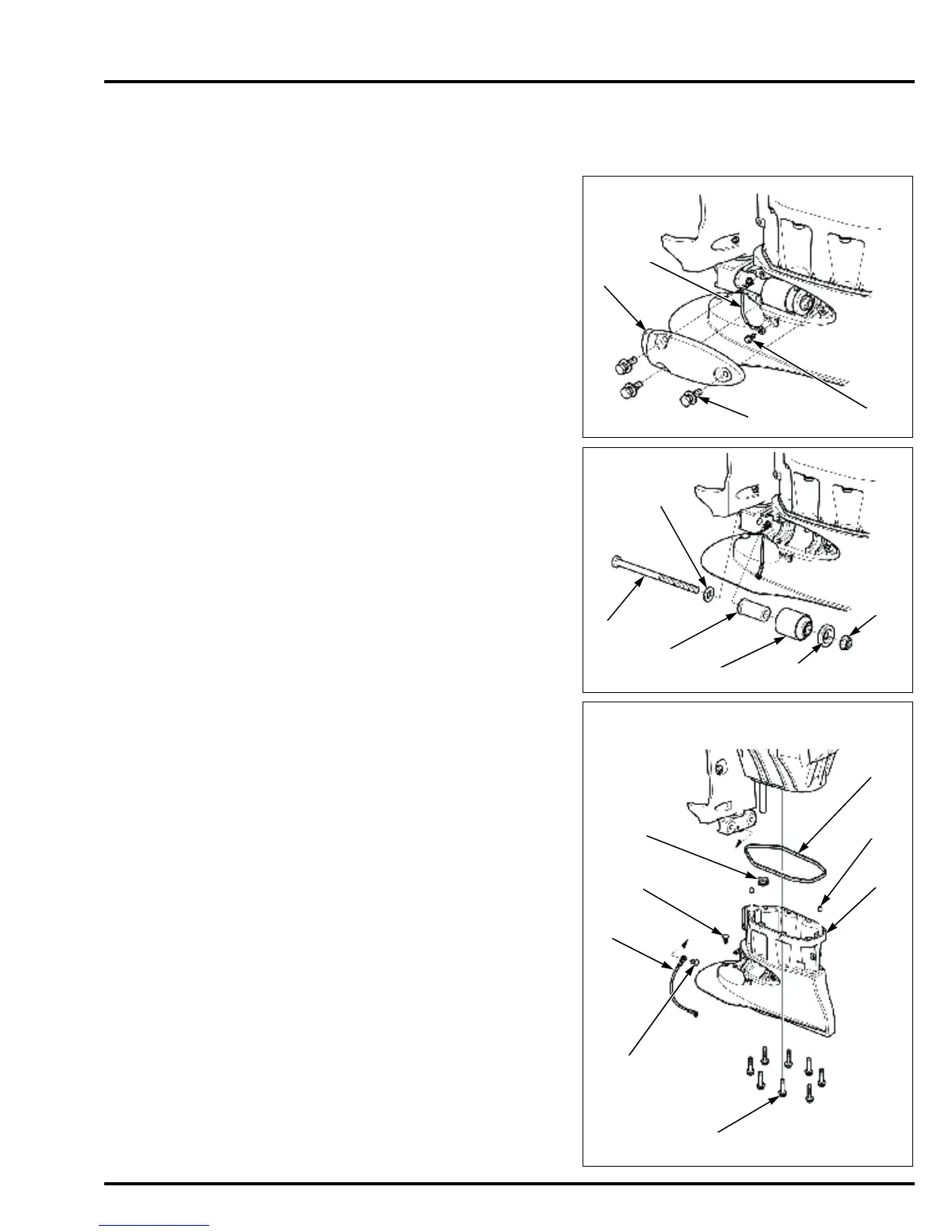

Remove the following:
– Engine cover
– R./L. engine under cover (page 6-5)
– Gear case/Extension case (XRT type only)(page 16-
5)
Tilt up the outboard motor and hold it in position by
hooking the engine hanger chain on each of the two
engine hangers.
Remove the three bolt/washers [1] and lower mount
housing [2].
Remove the bolt [3] and lead wire [4].
Remove the nut [1] while holding the bolt [2] with a
wrench, and then remove the bolt and washer [3].
Remove the lower mount stopper [4], lower rubber
mount [5], and lower mount collar [6].
Remove the eight bolts [1], and remove the extension
case [2].
• Remove the extension case, being careful not to
drop it.
Remove the two dowel pins [3].
Remove the under cover rubber [4], extension case
grommet [5], and lid clip [6].
Remove the screw [7] and lead wire [8].
[3]
[2]
[1]
[4]
[3]
[1]
[2]
[4]
[5]
[6]
[3]
[2]
[1]
[4]
[5]
[6]
[8]
[7]
