TOHATSU BFT75A - Installation; Under Cover Front Bracket Removal;Installation

6-12
dummyheaddummyhead
ENGINE COVER
INSTALLATION

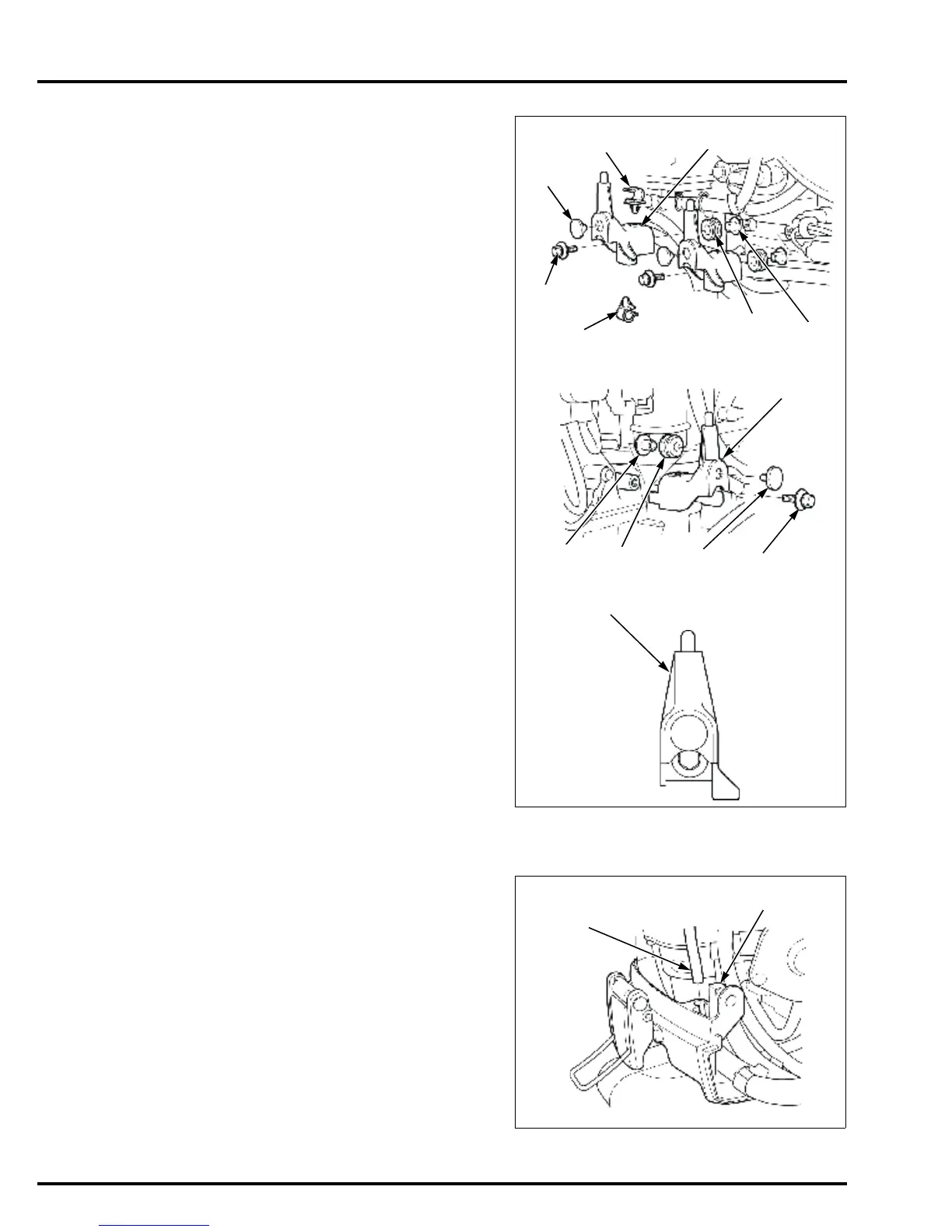

Install the following:
– Grommet [1]
–Collar [2]
– Seat side rubber [3]
Install the engine side stopper [4] and loosely tighten
the bolt/washer [5].
Set the fuel hose from fuel tube clamp B [6].
Set air vent tube C to fuel tube clamp B [7].
Set the engine side stopper at right angles to the engine
installation surface as shown.
Tighten the bolt/washer.
Install the L./R. engine under cover (page 6-7).
UNDER COVER FRONT BRACKET REMOVAL/INSTALLATION
REMOVAL
Remove the following:
– Engine cover
– Front separate cover (page 6-4)
– L./R. engine under cover (page 6-5)
– Remote control cable grommet (page 19-3)
Remove the vinyl tube [1] from the under cover front
bracket [2].
[7]
[6]
[4]
[1]
[5]
[3]
[2]
[4]
[4]
[5]
[2]
[1]
[3]
[1]
[2]
