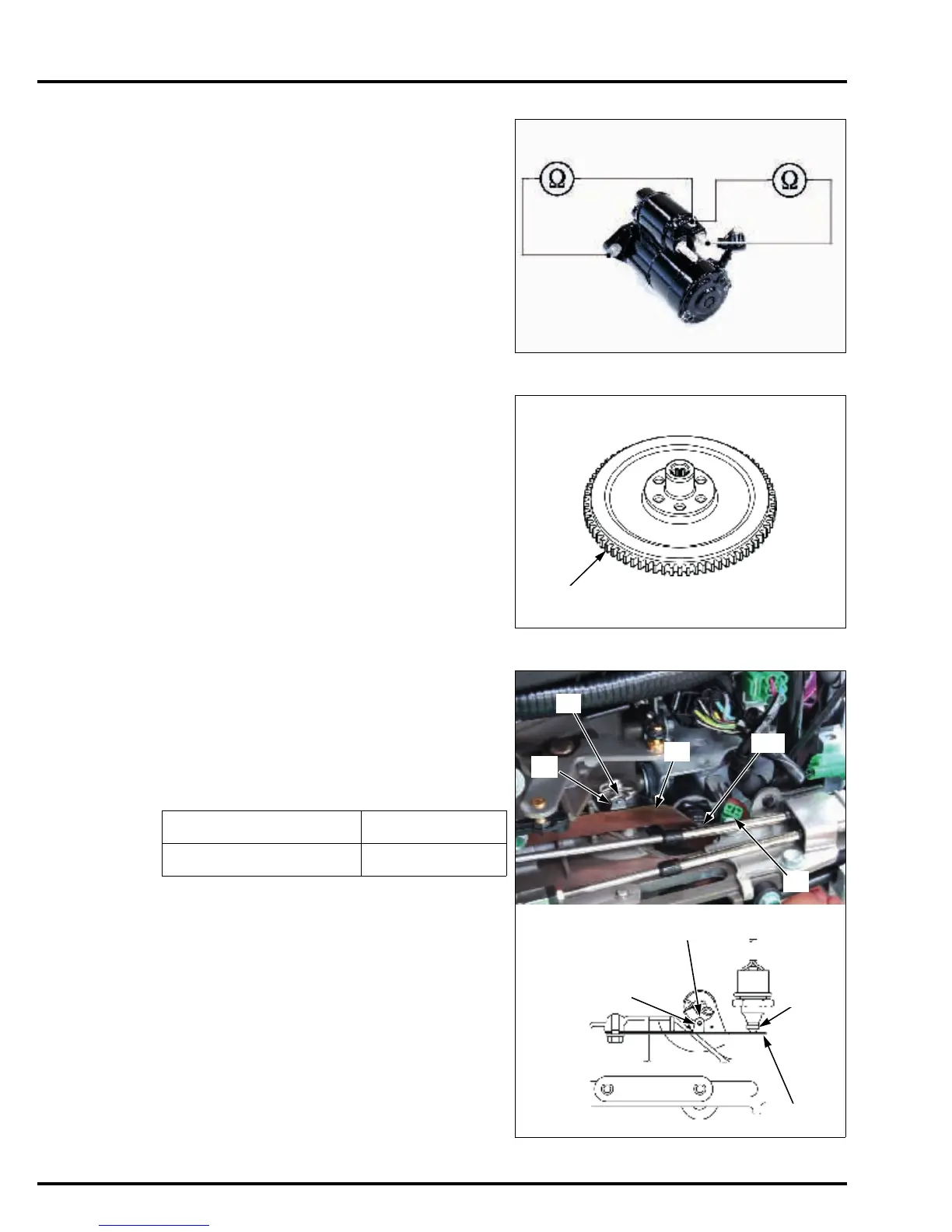

STARTING SYSTEM
STARTER SOLENOID
Check for continuity between the S terminal and front
bracket.
If there is no continuity, replace the starter solenoid.
Check for continuity between the S terminal and M
terminal.
If there is no continuity, replace the starter solenoid.
FLYWHEEL INSPECTION
Check the ring gear [1] for wear and damage.
If it is worn or damaged, check the pinion gear of the
starter motor.
Replace the flywheel or starter motor pinion gear, if
necessary.
NEUTRAL SWITCH INSPECTION
Remove the engine cover.
Release the neutral switch 2P connector [1] from the
connector holder and disconnect the connector.
Attach the tester leads to the two connector terminals at
the neutral switch.
Continuity should exist between the each position as
follows:
If the continuity is abnormal, check the following and
replace if necessary:
• Control lever is in the "N" (Neutral) position.
Tip [2] of the neutral switch is set in the detent
assisted spring [3] securely.
• The detent spring roller [4] is set in the groove [5] in
the shift arm.
[1]
SWITCH PUSHED
(Shift lever in "N")
Continuity
SWITCH RELEASED
(Shift lever in "F" or "R")
No continuity
[5]
[4]
[2]
[3]
[1]
[4]
[5]
[3]
[2]
