SERVICE INFORMATION
TOOLS
COMMERCIALLY AVAILABLE TOOLS
ORDERING INFORMATION
These tools are distinguished by the words (Commercially available). They are not available through the American Honda Parts
Development. Most commercially available tools shown in this Shop Manual can be ordered through the Honda Marine Tool and
Equipment Program by calling (888) 424-6857. Refer to the catalog for a complete tool listing.

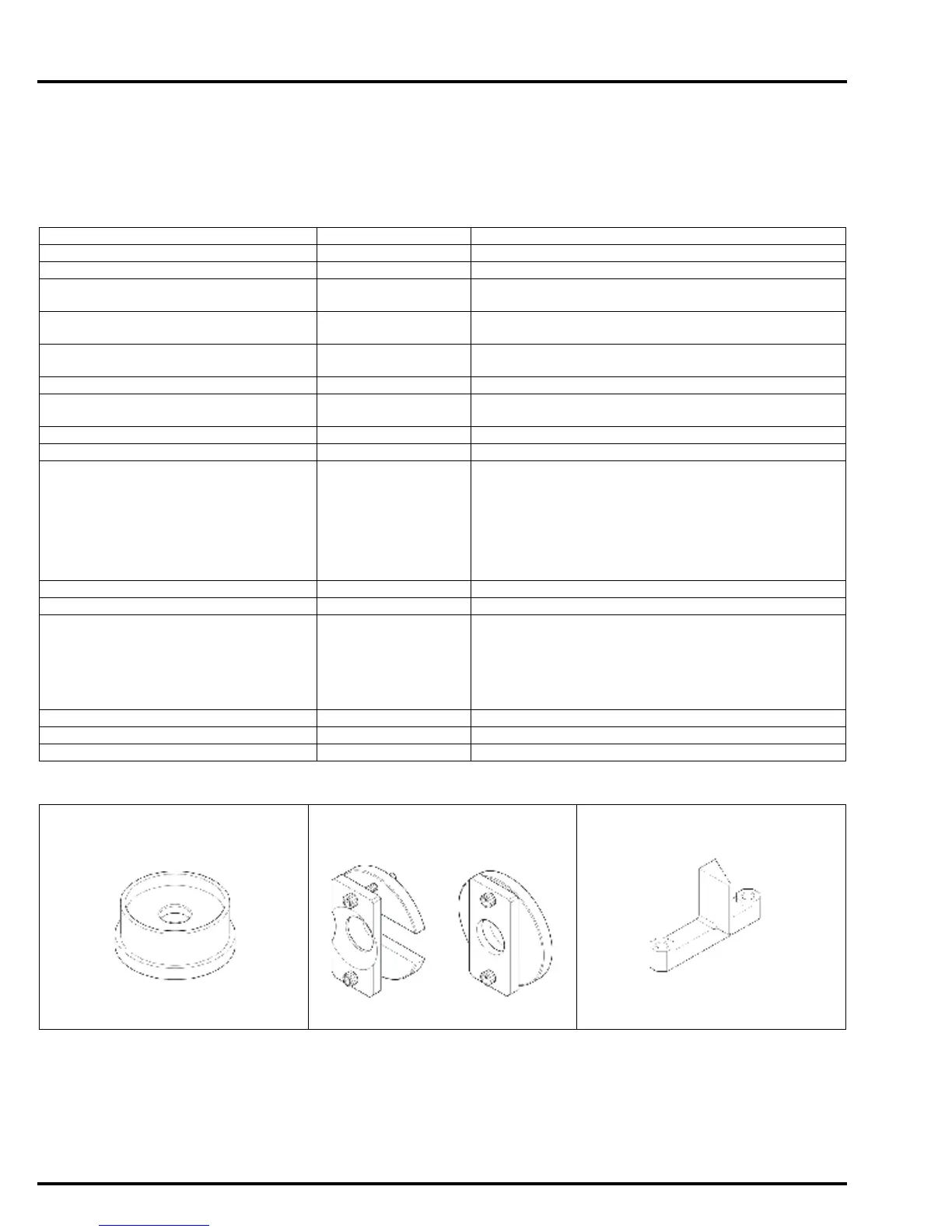

SPECIAL TOOLS
Tool name Tool number Application
Compression gauge EEPV303A Cylinder compression testing
Leak down tester KLIAT1006M Cylinder leak down
Gear case filler
Adapter, 8 x 1.25 mm
STV-S33
STV-334Y
Gear case filling
Pressure tester
Adapter, 8 x 1.25 mm
STV-V34
STV-334Y
Gear case pressure check
Clamps HCP6 Fuel strainer, water separator and fuel pump removal/
installation
Digital multimeter FLU-88 Idle speed/electrical testing
Engine oil pressure gauge
Engine oil pressure gauge adapter
SUNMT37A
SUNAT77AH
Oil pressure testing/inspection
Engine hanger VSB02C000021 Engine removal/Installation
HO2S wrench, 22 mm S6176 HO2S removal/installation
Valve seat cutter, #123 32° NWY-CU123
Valve seat reconditioning
Valve seat cutter, #122 45° NWY-CU608
Valve seat cutter, #111 60° NWY-CU270
Solid pilot bar, 5.5 mm NWY-140-5.5
Solid pilot bar, 5.52 mm NWY-100-5.52
T-wrench, #505 NWY-TW-505
Accessory package, #246 NWY-KACC246
Valve lapper LIL-21100 Valve lapping
Piston ring compressor RC40C Piston installation
Puller, 2 jaw
– Pins (2 required)
– Pressure screw
–Jaws
–Tip
–Yoke
see below
CJ-105-11
CJ-105-3
CJ105-6
CJ-66-15-3
CJ-86-1
Propeller shaft holding during backlash inspection
Heat gun ETB1600 Lower mount center housing removal/installation
Bearing puller OTC 1035 Lower mount center housing removal/installation
Torque angle gauge TA360 Bolt torquing
Attachment, 52 X 55 mm
07NAD-P200100
Gauge adapter, 100 mm
070PJ-ZY30100
Ring gear holder
070PB-ZY9A100
