TOHATSU BFT75A - Propeller Shaft Holder Disassembly;Assembly

16-30
dummyheaddummyhead
GEAR CASE
PROPELLER SHAFT HOLDER
DISASSEMBLY/ASSEMBLY
DISASSEMBLY

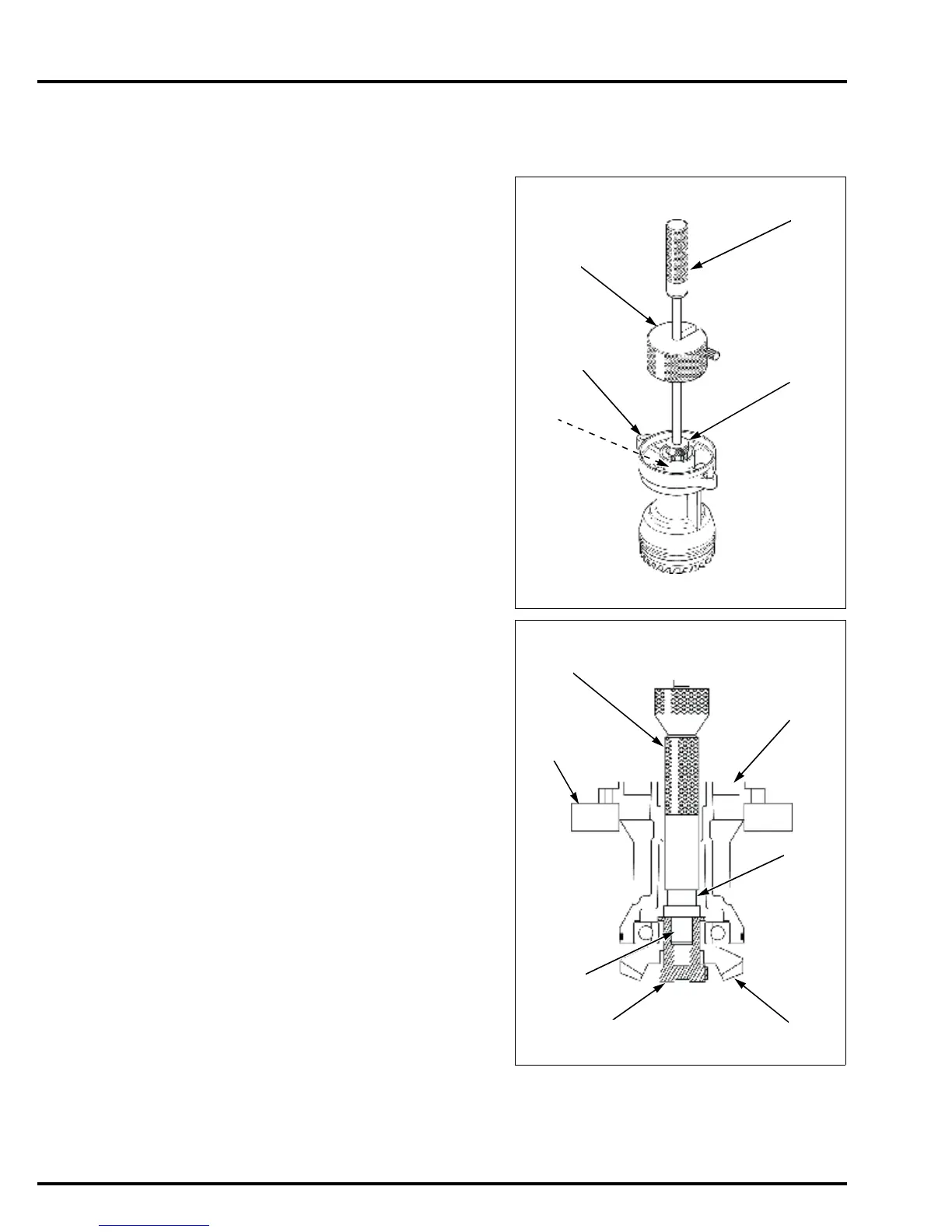

Remove the needle bearing [1] from the propeller shaft
holder [2] using the special tool as shown.
Remove the reverse bevel gear/bearing [1] from the
propeller shaft holder [2] using the special tools and a
hydraulic press as shown.
TOOLS:
Bearing remover, 30 mm [3] 07936-8890300
Remover handle [4] 07936-3710100
Remover weight [5] 07936-371020A
[4]
[3]
[5]
[2]
[1]
TOOLS:
Driver [3] 07749-0010000
Attachment, 24 x 26 mm [4] 07746-0010700
Pilot, 17 mm [5] 07746-0040400
Bearing remover [6] 07936-8890300
Hydraulic
press table
[6]
[3]
[2]
[1]
[4]
[5]
