GEAR CASE
Attach a commercially available universal bearing puller
[1] between the reverse bevel gear and the reverse
bearing.
Remove the ball bearing from the reverse bevel gear
using the special tools and hydraulic press as shown.

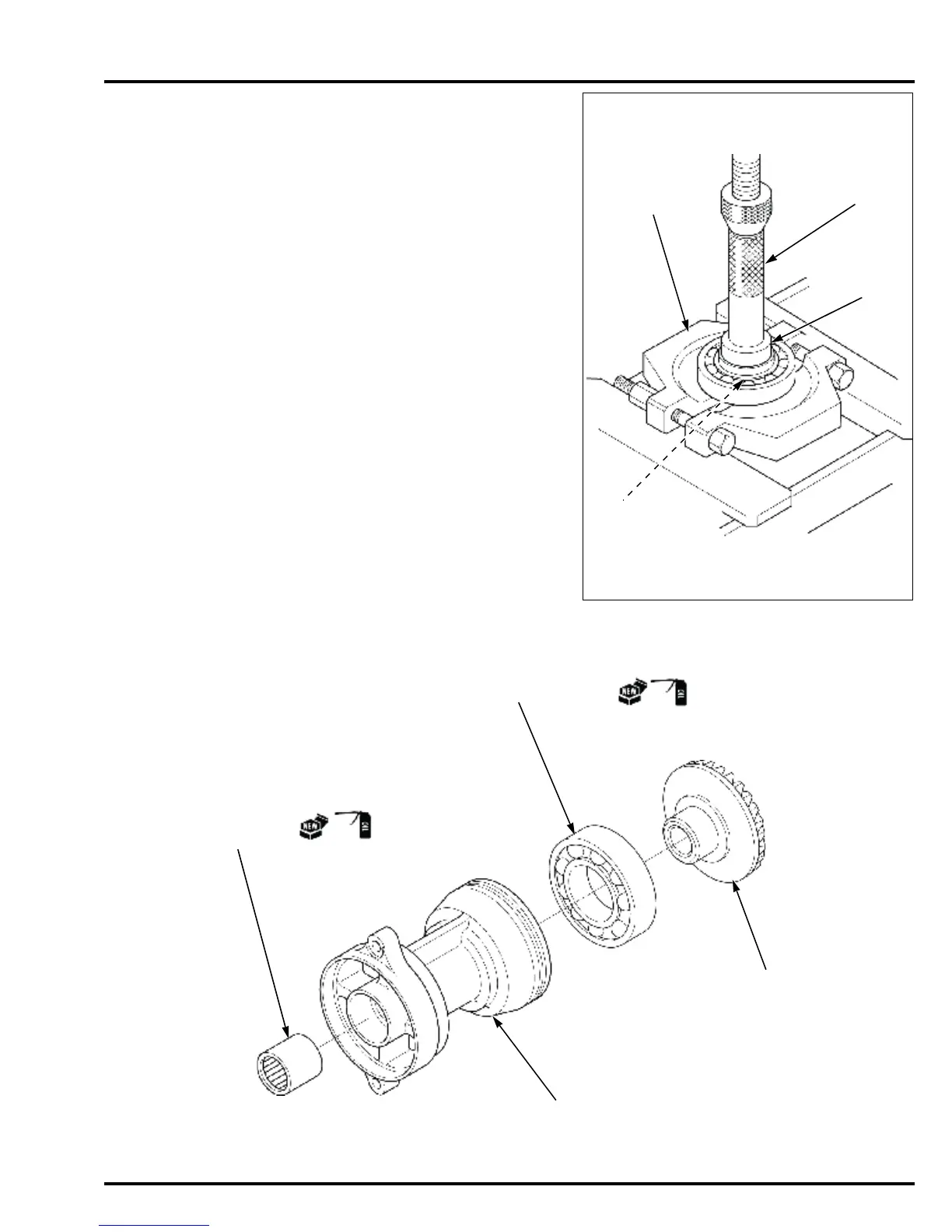

EXPLODED VIEW
TOOLS:
Driver [2] 07749-0010000
Attachment, 37 x 40 mm [3] 07746-0010200
Pilot, 30 mm [4] 07746-0040700
NEEDLE BEARING
(30 x 37 x 26 mm)
BALL BEARING (6208)
PROPELLER SHAFT
HOLDER
REVERSE BEVEL GEAR
To Next Page
