STARTING SYSTEM

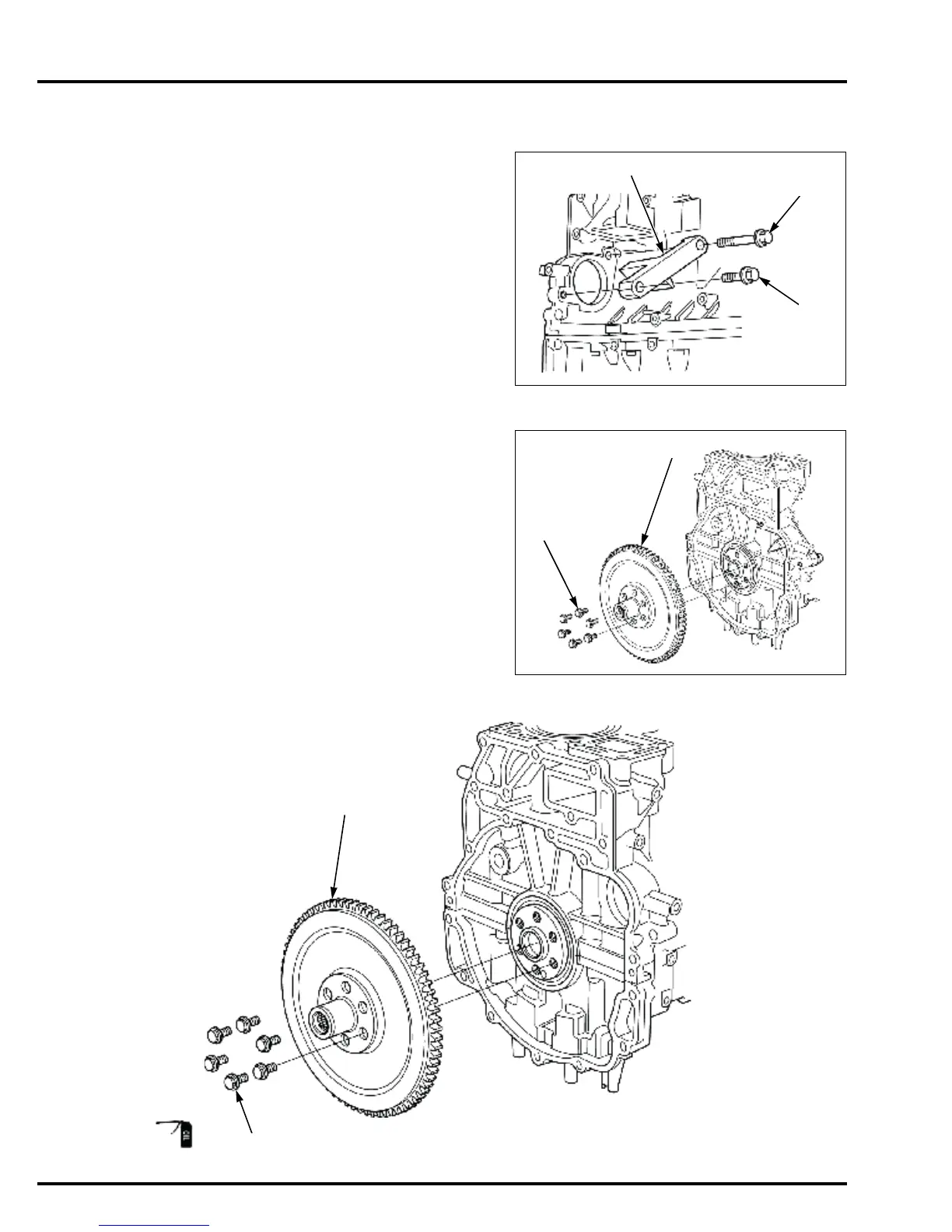

FLYWHEEL REMOVAL/INSTALLATION
REMOVAL
Remove the engine (page 13-3).
Remove the starter motor (page 9-5).
Set the special tool on the mounting flange of the starter
motor.
Insert the starter motor mounting bolt (10 x 75 mm) [2]
that has been tightening the starter motor into the bolt
hole, and secure the special tool by tightening the
starter mounting bolt (10 x 35 mm) [3].
• Avoid scores, scratches, and other damage to the
cylinder block’s mating surface with the mount case
gasket.
• Check that the special tool is set on the ring gear
securely.
Remove the six bolts [1] and flywheel [2].
EXPLODED VIEW
TOOL
Ring gear holder [1] 070PB-ZY9A100
BOLT (12 mm) (6)
FLYWHEEL
103 N·m (10.5 kgf·m, 76 lbf·ft)
