STARTING SYSTEM
INSTALLATION

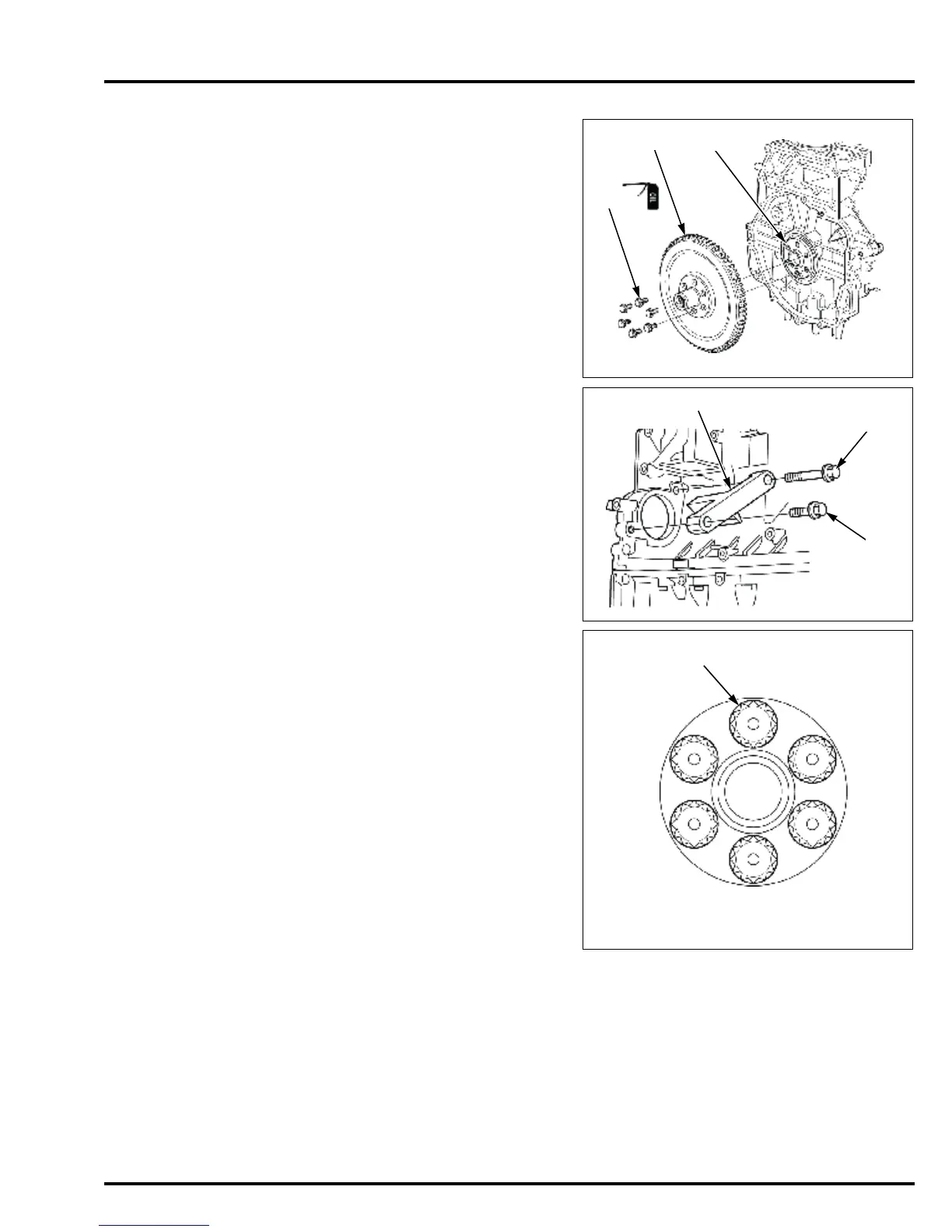

Clean the crankshaft and flywheel mating surfaces
Apply engine oil to the threads and seating surface of
the bolts.
Install the flywheel [2] on the crankshaft [3] and loosely
tighten the six bolts.
Set the special tool on the mounting flange of the starter
motor.
Insert the starter motor mounting bolt (10 x 75 mm) [2]
that has been tightening the starter motor into the bolt
hole, and secure the special tool by tightening the
starter mounting bolt (10 x 35 mm) [3].
• Avoid scores, scratches, and other damage to the
cylinder block’s mating surface with the mount case
gasket.
• Check that the special tool is set on the ring gear
securely.
Tighten the bolts to the specified torque in the
numbered sequence shown in two or three steps.
Remove the special tool and install the starter motor
(page 9-6).
Install the engine on the outboard motor (page 13-8).
[1]
[2]
[3]
TOOL
Ring gear holder [1] 070PB-ZY9A100
[1]
[2]
[3]
TORQUE: 103 N·m (10.5 kgf·m, 76 lbf·ft)
[1]
1.
2.
3.
4.
5.
6.
