GEAR CASE
PROPELLER SHAFT HOLDER
REMOVAL/INSTALLATION
Remove the following:
– Propeller (page 16-3)
– Gear case (page 16-5)
– Water pump (page 11-6)
– Shift rod (page 16-14)

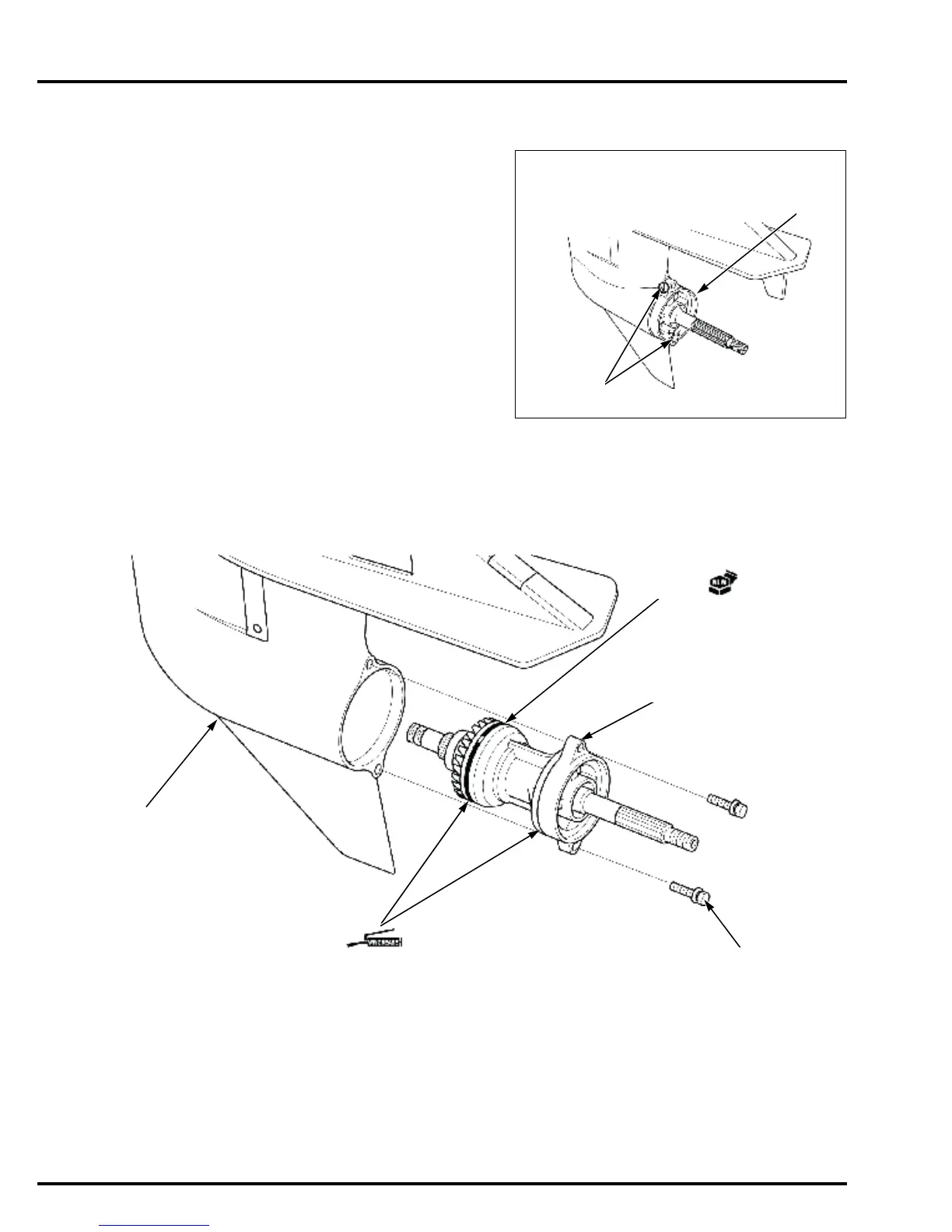

Remove the two bolt/washers.
Insert the screwdriver or equivalent tool into the recess
[1] in the propeller shaft holder [2], and remove the
propeller shaft holder from the gear case.
Installation is in the reverse order of removal. Note the
following:
• Check that the shift slider of the propeller shaft
holder is set on the reverse side (page 16-24).
• After installation, check the gear case pressure
inspection (page 16-42).
[1]
[2]
(O-ring and gear
case insertion part.)
BOLT
(10 x 40 mm) (2)
GEAR CASE
O-RING
PROPELLER SHAFT
HOLDER
