TOHATSU BFT75A - Anode Metal;Water Screen Removal;Installation

16-4
dummyheaddummyhead

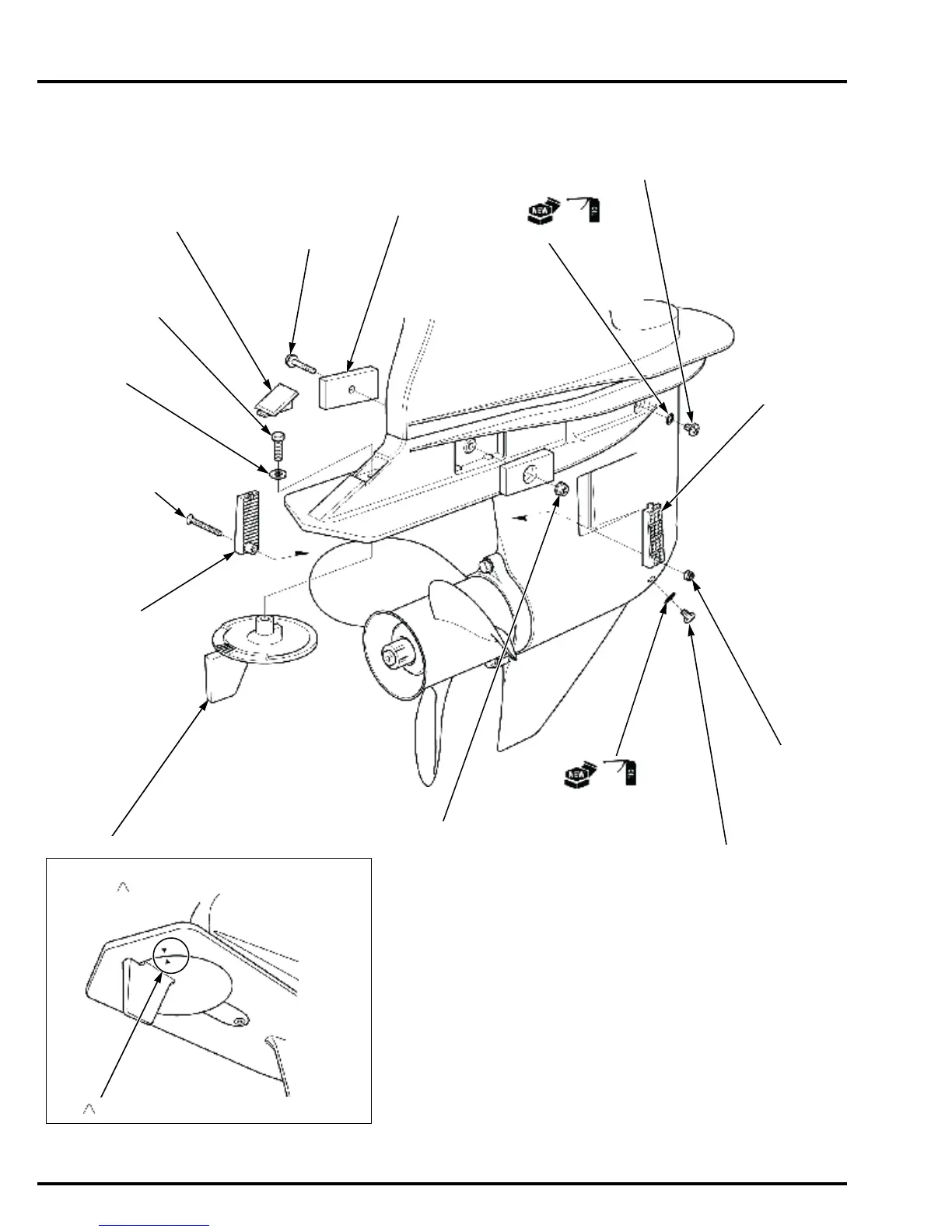

GEAR CASE
ANODE METAL/WATER SCREEN REMOVAL/INSTALLATION
Installation:
WASHER (8 mm)
BOLT (8 x 25 mm)
TRIM TAB
" marks
SELF-LOCKING
NUT (6 mm)
R. WATER
SCREEN
GEAR CASE GROMMET
SELF-LOCKING NUT (6 mm)
1.0 N·m (0.10 kgf·m, 0.7 lbf·ft)
SCREW (5 x 55 mm)
ANODE METAL (2)
BOLT (6 x 35 mm)
L. WATER SCREEN
6.5 N·m (0.66 kgf·m, 4.8 lbf·ft)
GEAR OIL CHECK BOLT
6.5 N·m (0.66 kgf·m, 4.8 lbf·ft)
GEAR OIL DRAIN PLUG BOLT
O-RING
O-RING
Align the " " marks.
"
