TOHATSU BFT75A - Power Tilt Motor Disassembly; Assembly

18-41
dummyheaddummyhead
TRIM/TILT
POWER TILT MOTOR DISASSEMBLY/
ASSEMBLY

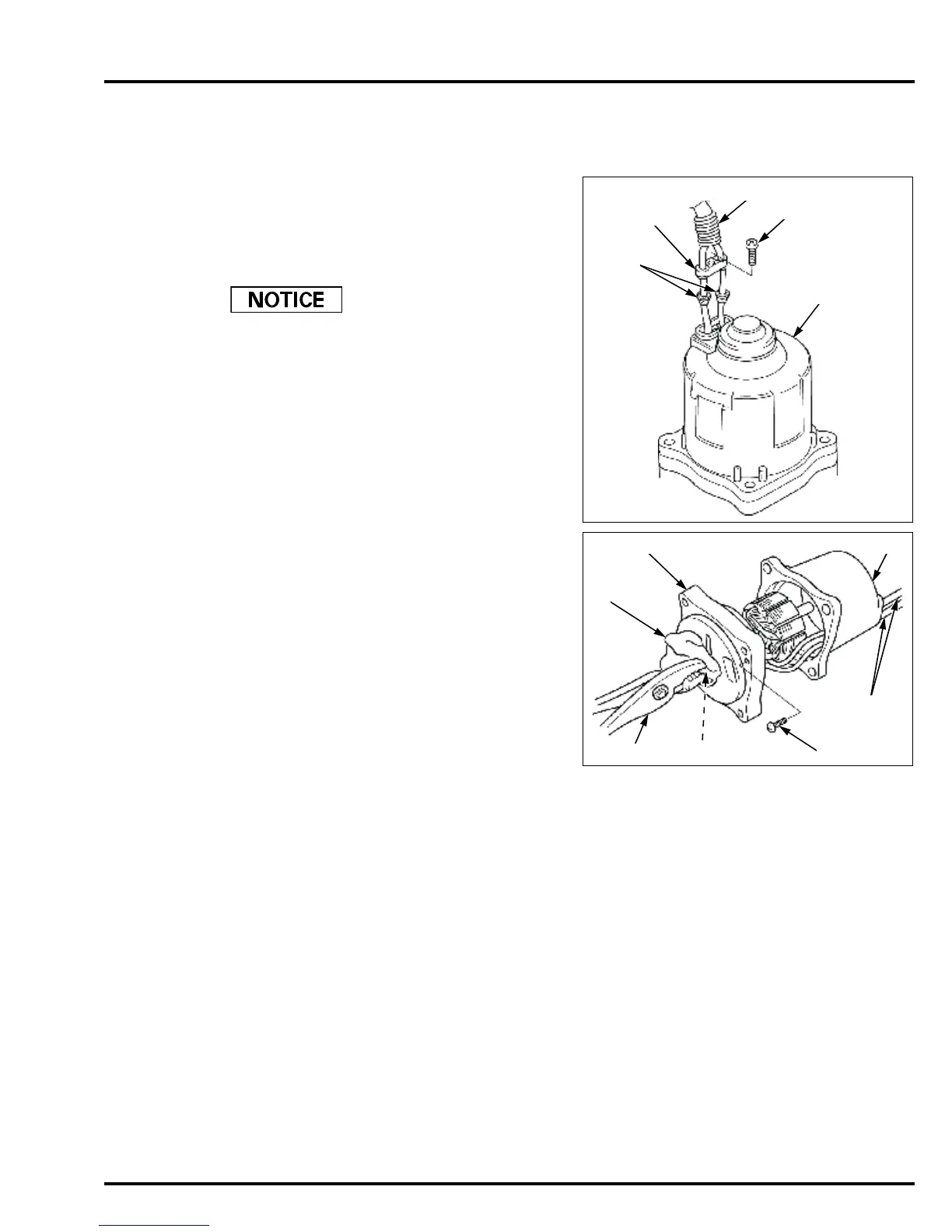

DISASSEMBLY
Untape the corrugated teflon tube [1], and pull the tube
to the opposite side of the wire holder.
Remove the wire holder screw (stainless steel screw: 4
x 16 mm) [2]. Pull out the wire holder [3] and the two
grommets [4] from the yoke [5], and move them to the
tube side.
• Pull out the grommets with care not to damage
them.
Remove the two screws (4 x 16 mm) [1] from the front
bracket [2].
Wrap the armature shaft [3] with a shop towel [4] or
equivalent material to protect, and hold the shaft with
pliers [5].
Pushing the two motor wires [6] toward the yoke [7],
remove the armature/front bracket from the yoke.
Do not allow the commutator to become contaminated
with oil or grease.
[2]
[5]
[1]
[3]
[4]
[2]
[4]
[3][5]
[7]
[6]
[1]
