FUEL SYSTEM

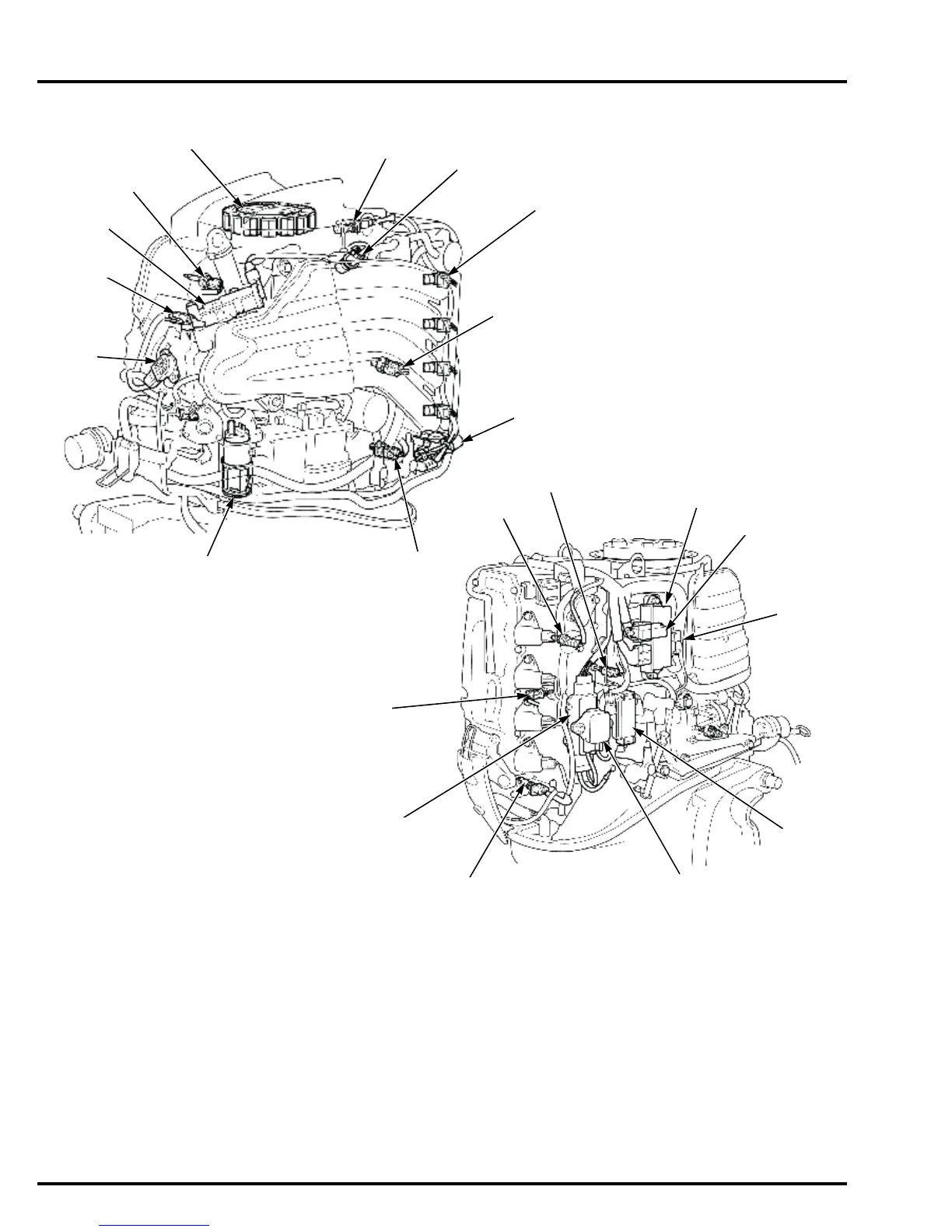

SYSTEM LOCATION
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[12]
[11]
[13]
[14]
[15]
[17]
[16]
[18]
[19]
[20]
[21]
[22]
[1] IAC valve [12] MAP sensor
[2] IAT sensor [13] HO2S
[3] Alternator stator [14] ECT sensor 2
[4] CKP sensor [15] ECM
[5] EOP sensor [16] PGM-FI/main relay
[6] Injector [17] DLC
[7] Knock sensor (BF90D/BF100A only) [18] Fuse box
[8] VTEC solenoid valve (BF90D/BF100A only) [19] 70A fuse box
[9] EBT sensor [20] CMP sensor
[10] Fuel strainer pump (High pressure side) [21] Regulator/rectifier
[11] TP sensor [22] ECT sensor 3
