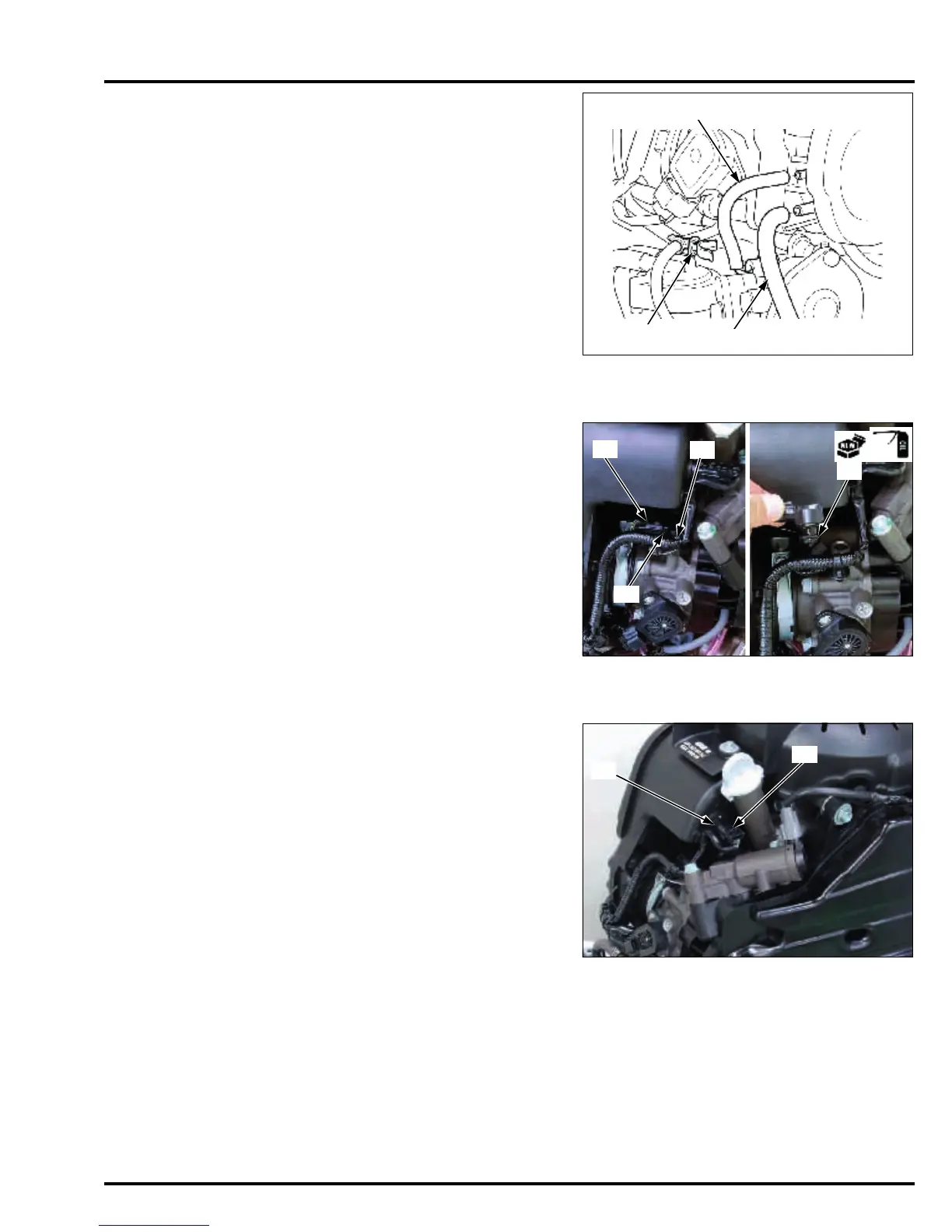

Connect the pressure regulator control tube [1] and the
vinyl tube [2] to the intake manifold.
Set the pressure regulator control tube to the fuel tube
clamp D [3].
Install the following:
– L. engine under cover (page 6-7)
– Engine cover
MAP SENSOR REMOVAL/
INSTALLATION
Remove engine cover.
Disconnect the MAP sensor 3P connector [1] from the
MAP sensor [2].
Remove the bolt [3] and remove the MAP sensor.
Apply engine oil to a new O-ring [4] and install the MAP
sensor.
Install the MAP sensor, and tighten the bolt to the
specified torque.
Connect the MAP sensor 3P connector.
Install the engine cover.
IAT SENSOR REMOVAL/
INSTALLATION
Remove engine cover.
Disconnect the IAT sensor 2P connector [1] from the
IAT sensor [2].
Remove the IAT sensor.
Install the IAT sensor to the sensor grommet.
Connect the IAT sensor 2P connector.
Install the engine cover.
[1]
[3]
[2]
TORQUE: 3.4 N·m (0.35 kgf·m, 2.5 lbf·ft)
[1]
[2]
[3]
[4]
[1]
[2]
